BENINCA BOB 3024E Double Swing Gate Motor Kit

The Benincà BOB3024E.DK Double Kit offers a reliable, high-performance automation system for two-leaf swing gates, each leaf up to 3 m in length. Both actuators are built with a Ø 20 mm rolled ball-screw and precision-engineered components for quiet, smooth operation and long service life. Encoders in each motor ensure precise movement control, while amperometric detection provides obstacle safety.

The TRUST24 control board coordinates the dual motors for perfect synchronisation, with adjustable slow-down at both opening and closing phases. The manual release system allows gate operation in emergencies, and the setup is compatible with optional battery backup for continuous use during power cuts.

Specifications:

• Motor supply: 24 V DC
• Maximum gate leaf length: 3 m (per motor)
• Maximum thrust: 1,500 N
• Standard stroke: 270 mm (extendable to 325 mm)
• Opening time: ~12 s to 90°
• Duty cycle: Intensive use
• Protection rating: IP44
• Operating temperature: –20 °C to +50 °C
• Motor weight: 6.7 kg each

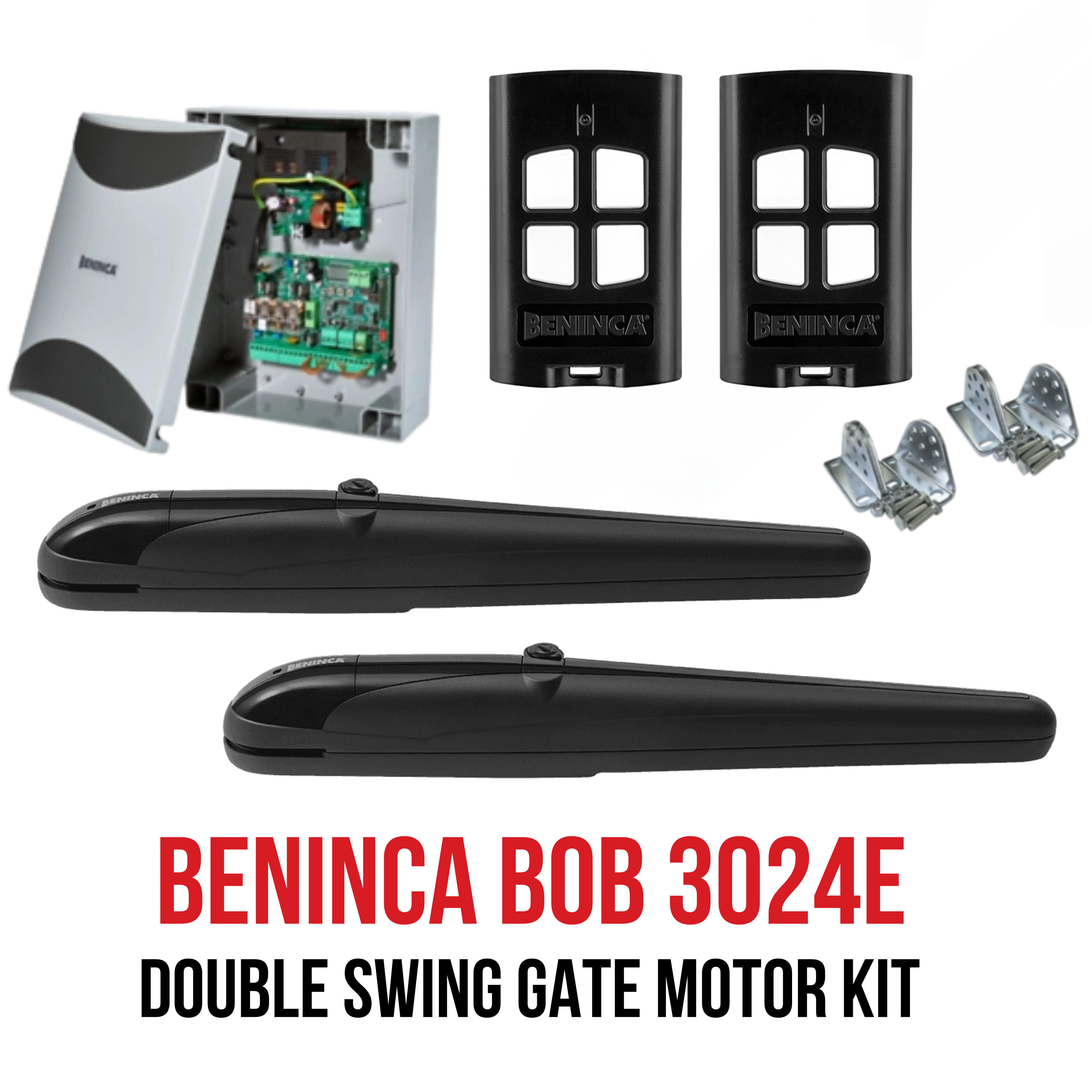

Package Contains:

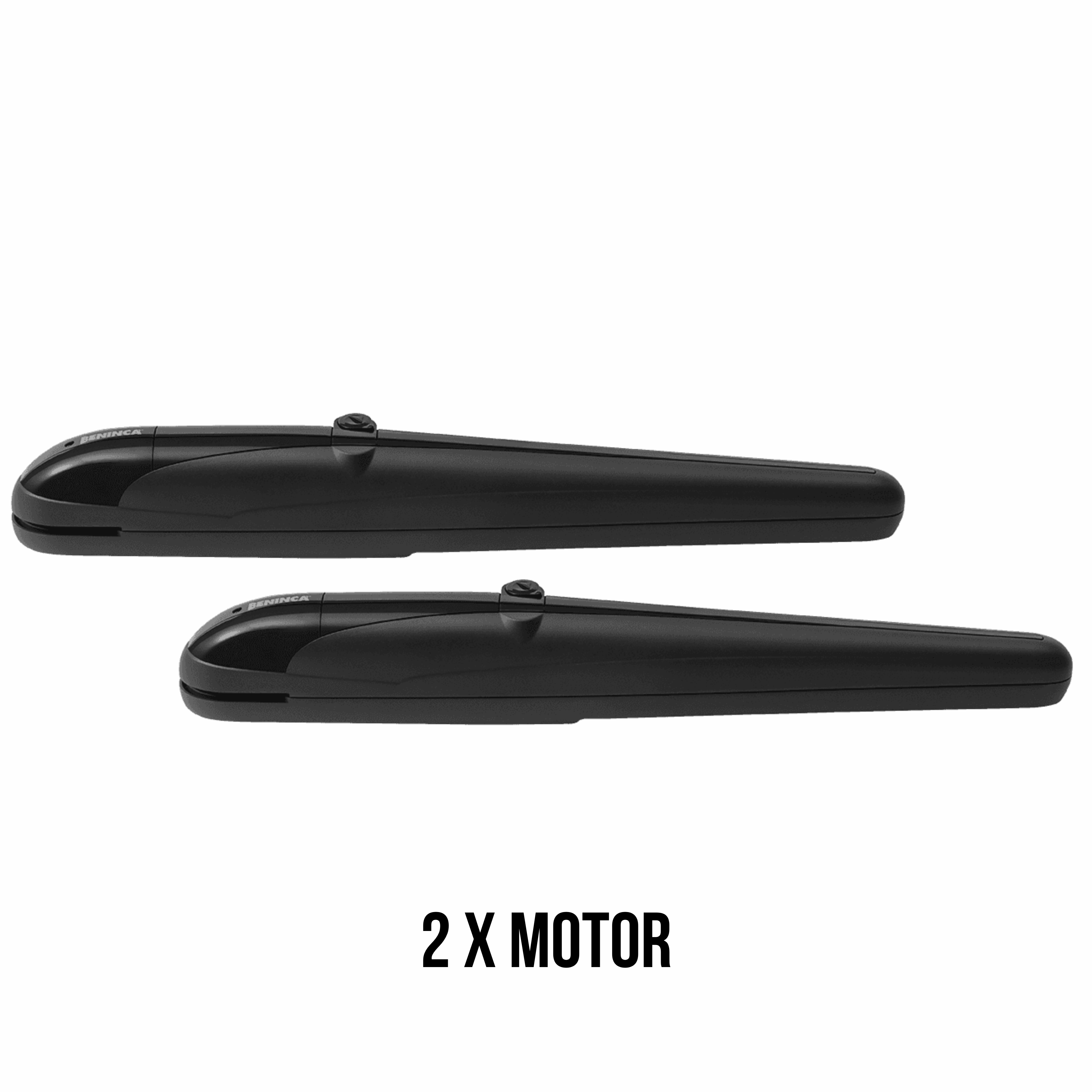

• 2 × BOB3024E.DK motors with encoder and manual release
• 1 × TRUST24 control board with integrated radio receiver and battery charger

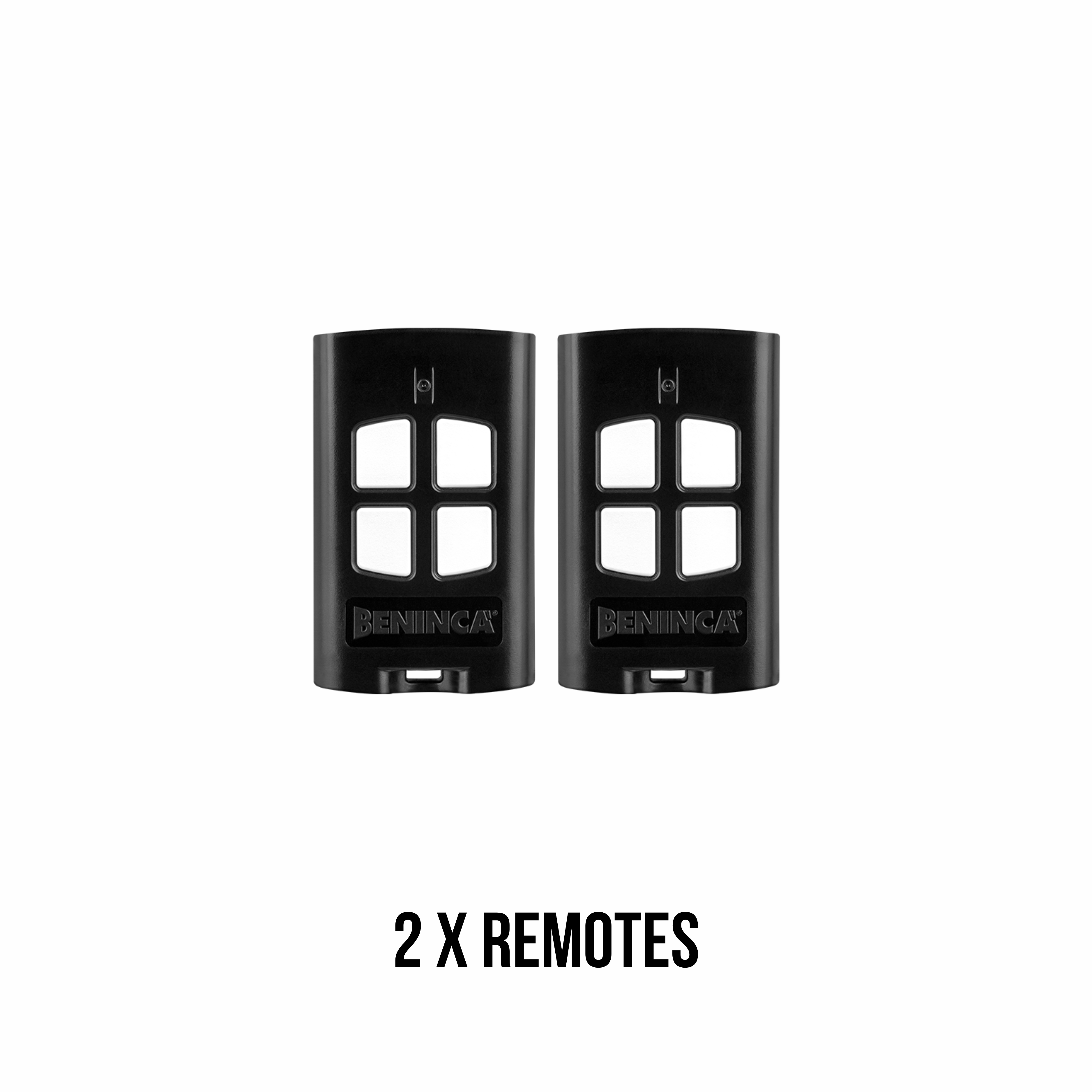

• 2 × TO.GO4A 4-channel remote controls

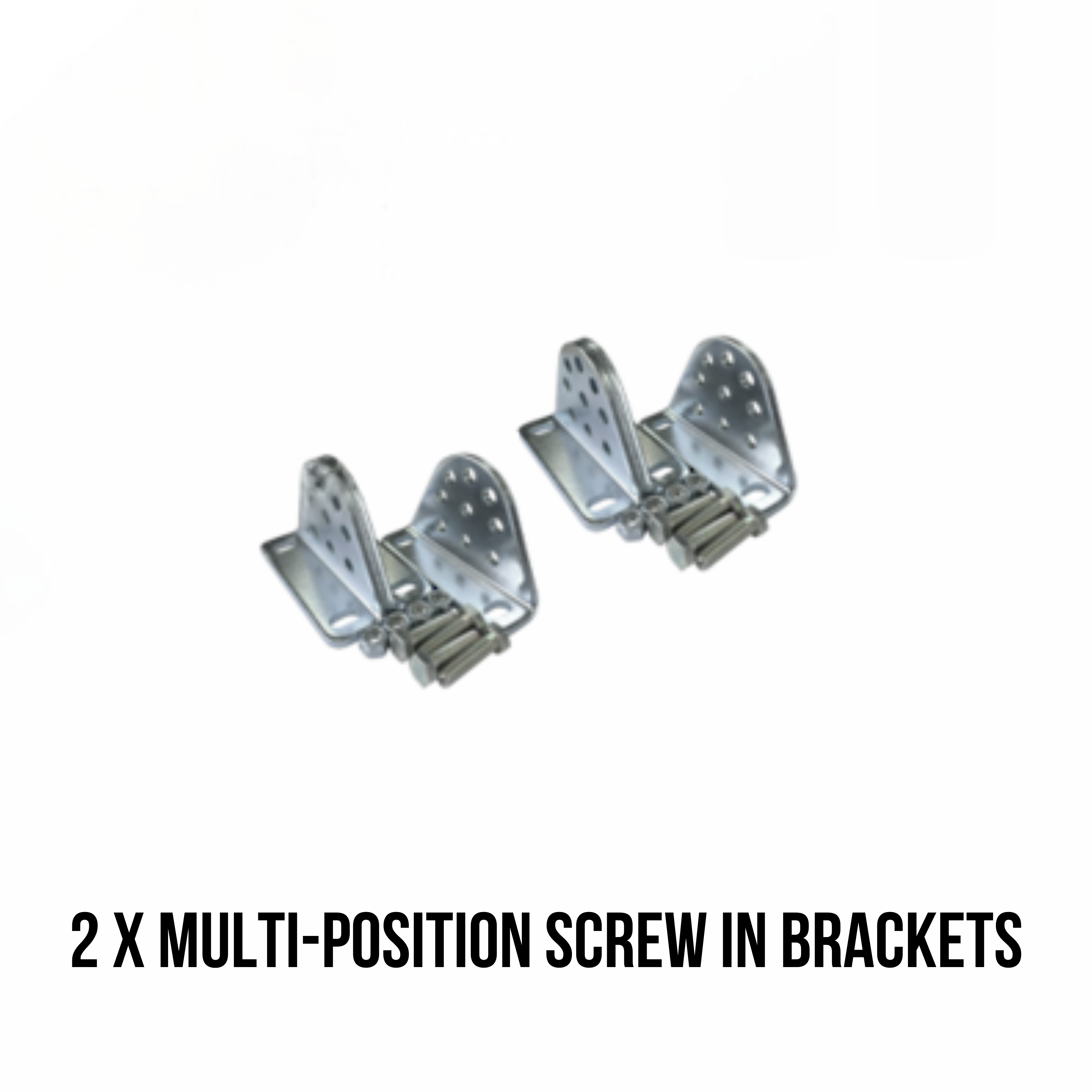

• 2 × B.SR multi-position screw-in brackets
