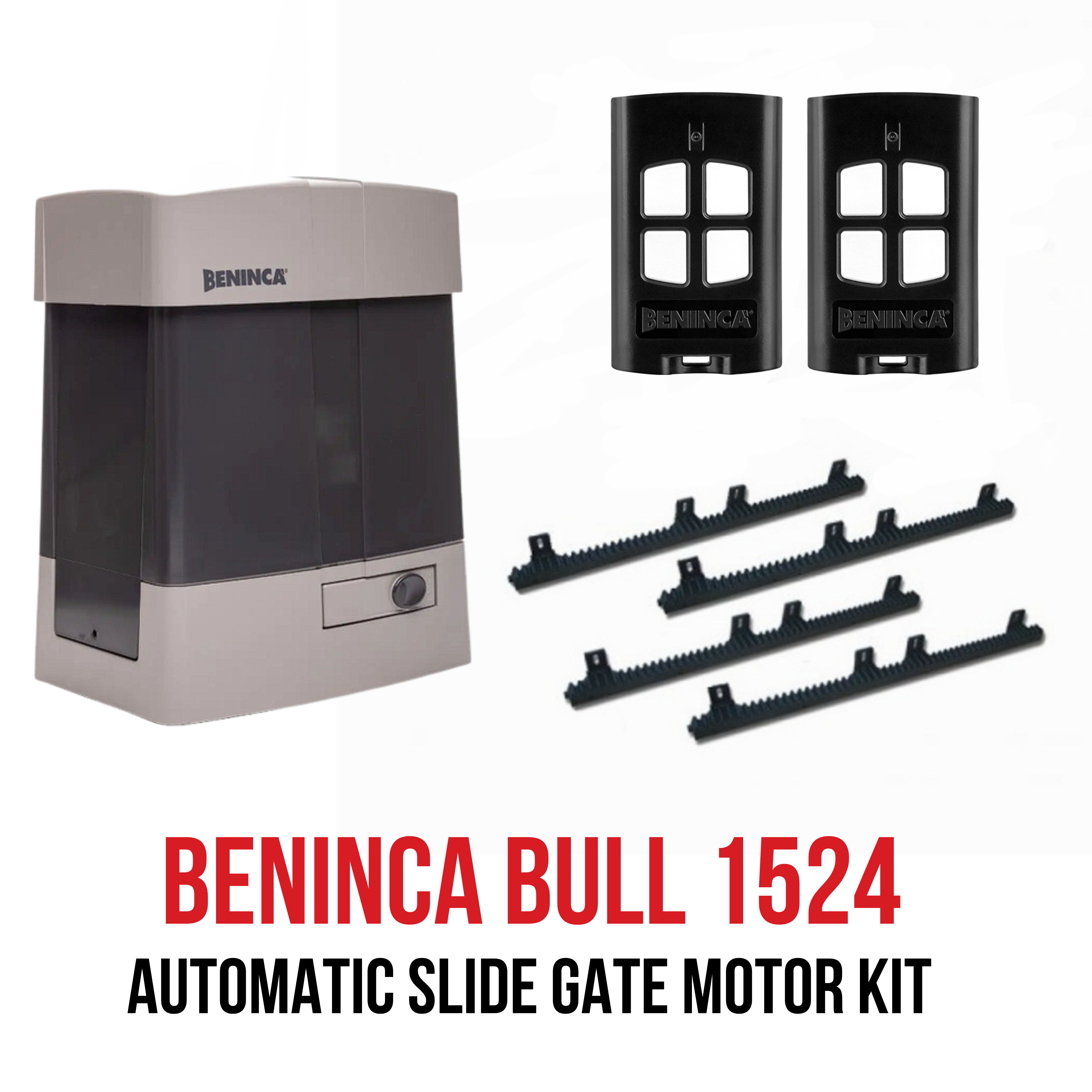

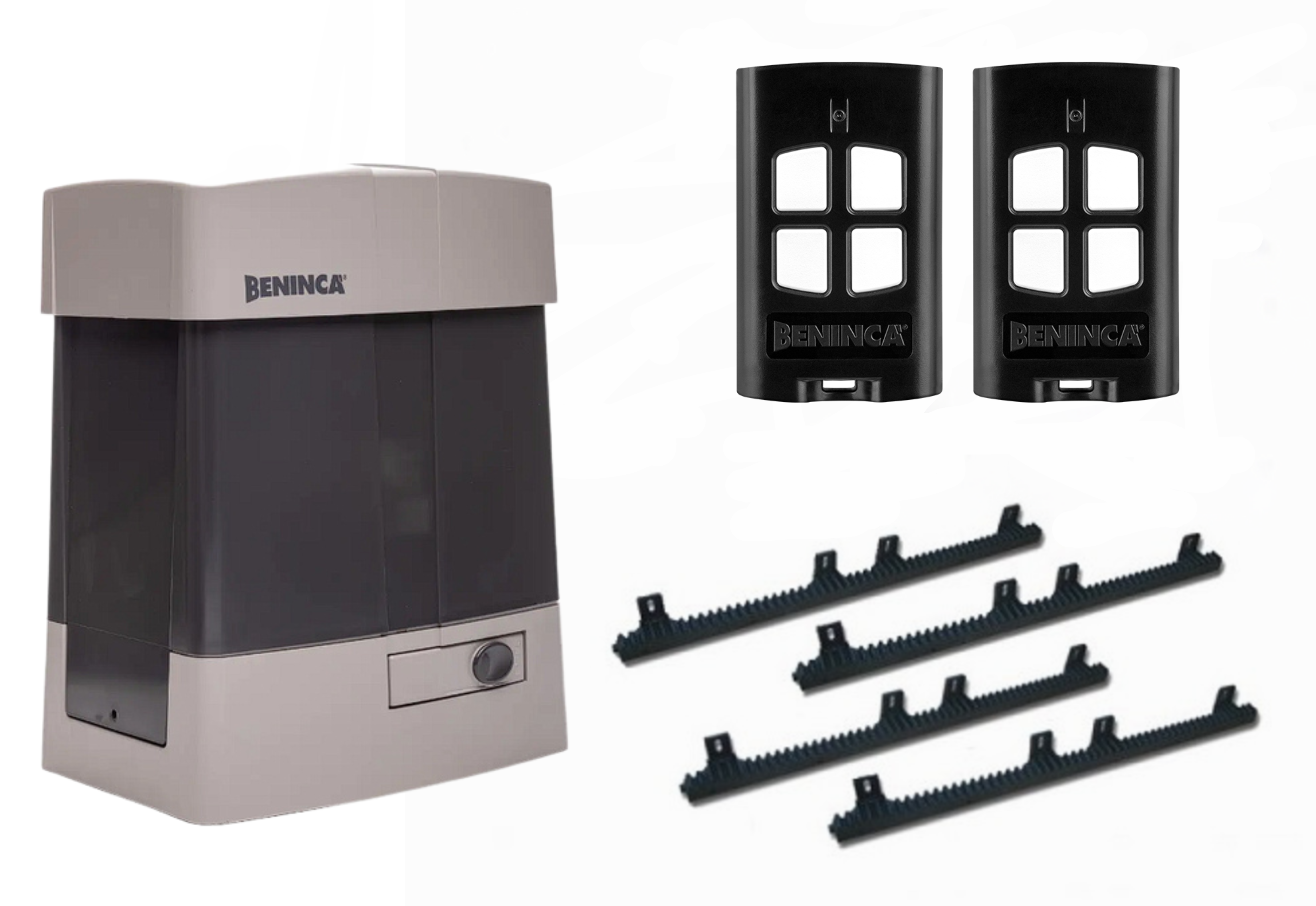

BENINCA BULL 1524SE Automatic Slide Gate Motor Kit

Features & Benefits:

High Capacity & Efficiency: Designed for very intensive use on sliding gates up to 1,500 kg, the BULL 1524 SE features a robust 24 V DC motor with switching power supply for consistent performance and lower energy consumption.

Smooth & Precise Movement: Virtual encoder technology enables accurate gate positioning, adjustable slowdown phases, and advanced torque management via the STC system.

Smart & Safe Operation: Built-in amperometric obstacle detection ensures the gate stops and reverses if obstructions are detected, enhancing safety.

Built for Longevity: Durable electromechanical construction with IP44 protection guarantees reliable operation in all seasons. The control unit’s top-mounted design simplifies wiring and setup.

Battery Backup Ready: Supports optional backup batteries for uninterrupted use during power failures.

Basic Information:

• Motor power supply: 24 V DC
• Leaf maximum weight: 1,500 kg
• Motor type: Electromechanical with virtual encoder and switching power supply
• Technical Data
• Power supply: 115 / 230 V AC
• Absorption: 3.7 / 2 A
• Motor power: 420 W
• Speed: 5.5–11.7 m/min
• Maximum thrust: 916 N
• Duty cycle: Intensive use
• Protection rating: IP44
• Operating temperature: –20 °C to +50 °C
• Dimensions: 400 mm × 255 mm × 345 mm (h)
• Weight: 16.1 kg

Basic Control Board Functions:

• Integrated control unit with built-in receiver
• Virtual encoder for precise movement tracking
• Adjustable slowdown in opening and closing
• Automatic closing function
• Soft-start and soft-stop operation
• Pedestrian passage function
• Adjustable torque and operational parameters
• Compatibility with multiple safety devices
• KNX-ready with app-based configuration (BeUP/PRO.UP)

Package Contains:

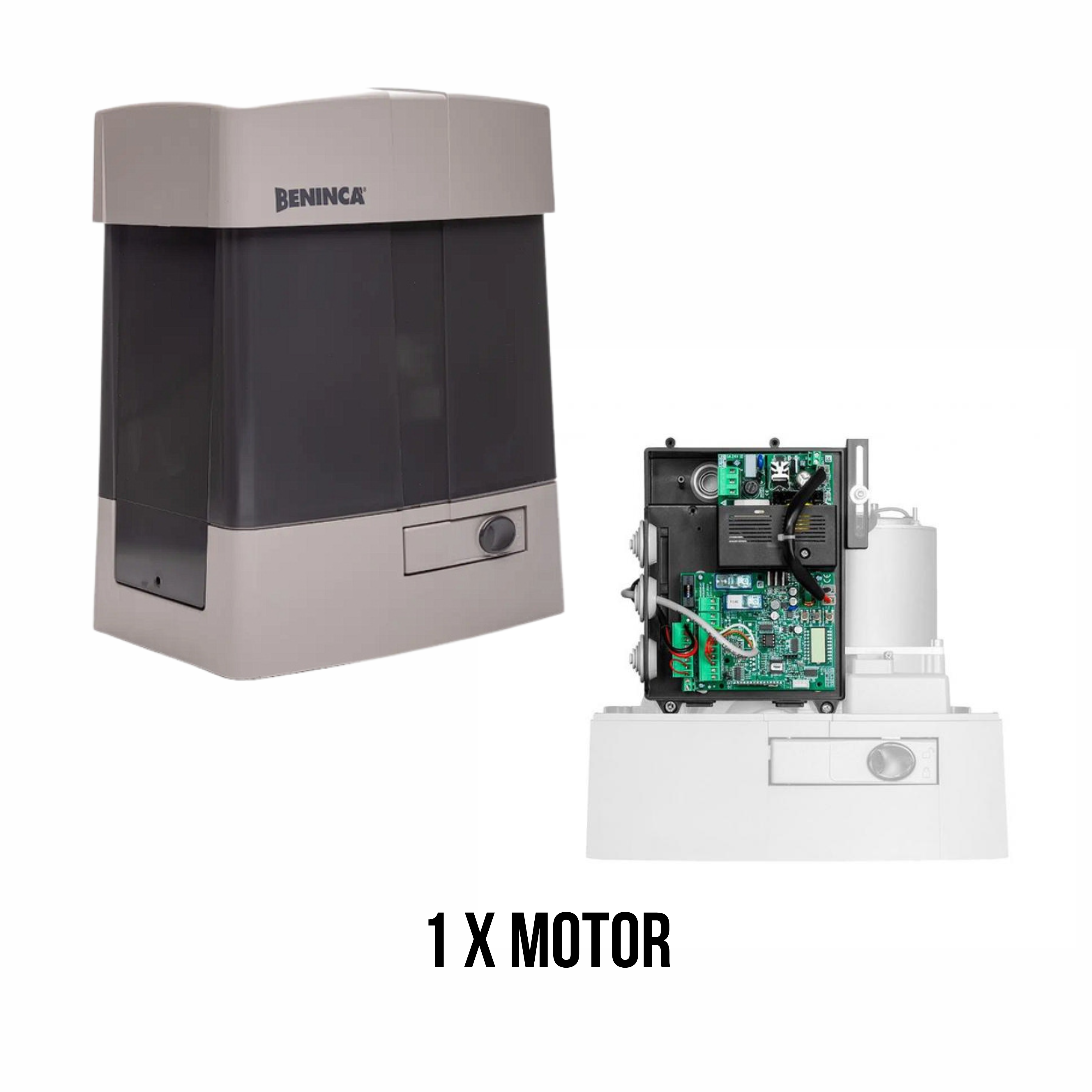

• BULL 1524 SE – 1× sliding gate motor with integrated control unit and virtual encoder

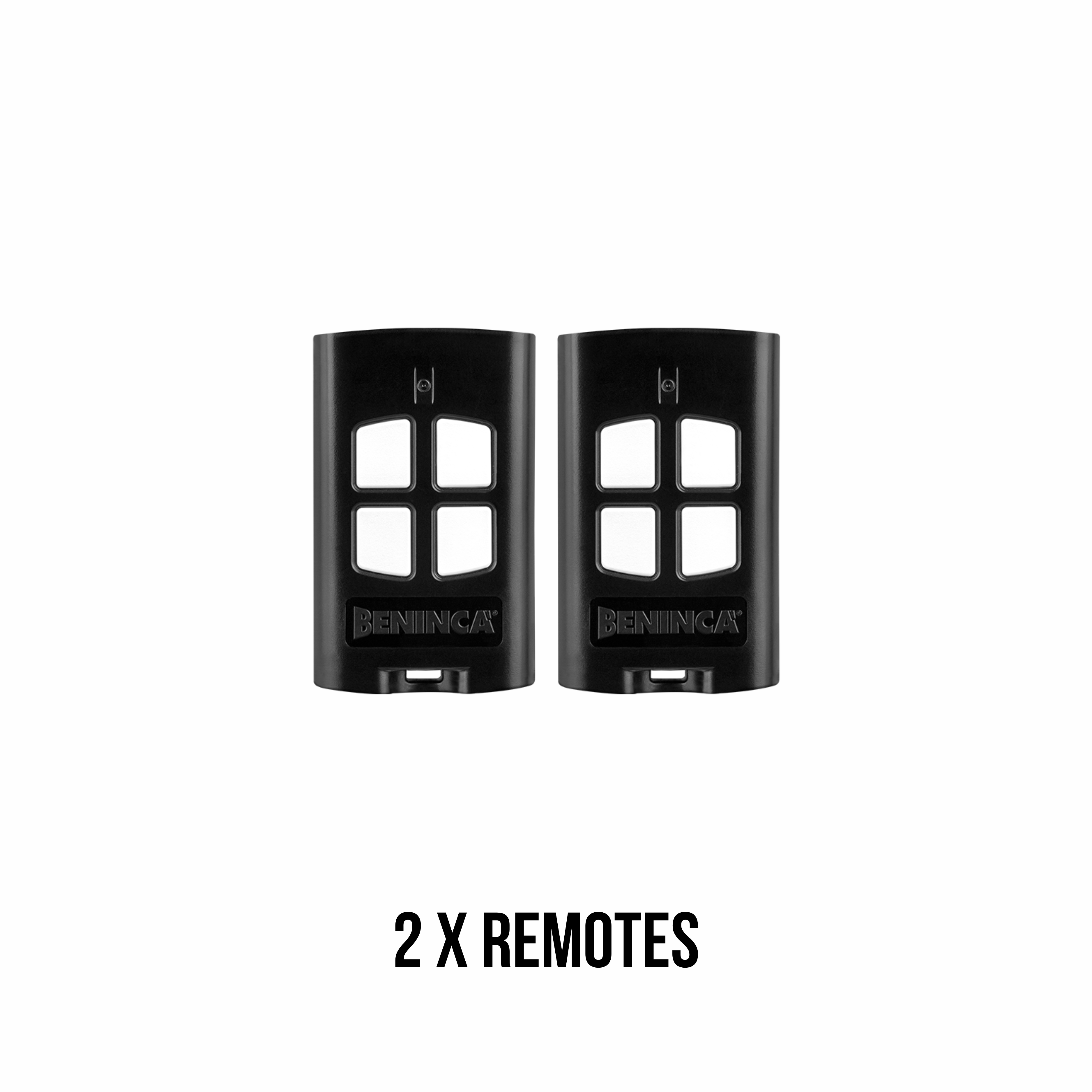

• TO.GO4A – 2× 4-channel remote controls
• RACKV6 – 4× nylon racks with steel core
