BENINCA BULL 624SE Automatic Slide Gate Motor Kit

Features & Benefits:

• High Capacity & Performance: Engineered for intensive use on large residential and commercial gates up to 600 kg. Smooth and powerful 24 Vdc motor ensures reliable daily operation.
• Advanced Safety: Integrated encoder technology provides precise control of gate movement and immediate obstacle detection.
• Battery Backup Compatible: Ready for optional backup batteries to keep your gate operational during power outages.
• Built to Last: Robust mechanical construction with weather-resistant IP44 protection for year-round use.

Basic Information

• Motor power supply: 24 Vdc
• Leaf maximum weight: 600 kg
• Motor type: Electromechanical with oil-bath gearbox
• Technical Data
• Power supply: 230 V AC, 50 Hz
• Absorption: 2.5 A
• Motor power: 250 W
• Speed: 0.26 m/s
• Maximum thrust: 600 N
• Duty cycle: Intensive use
• Protection rating: IP44
• Operating temperature: –20°C to +50°C
• Dimensions: 330 mm × 210 mm × 303 mm (h)
• Weight: 11 kg
• Basic Control Board Functions
• Integrated control unit with built-in receiver
• Pedestrian passage function
• Encoder-based obstacle detection
• Adjustable slowdown in opening and closing
• Automatic closing function
• Soft-start and soft-stop for smooth operation
• Compatible with a range of safety accessories

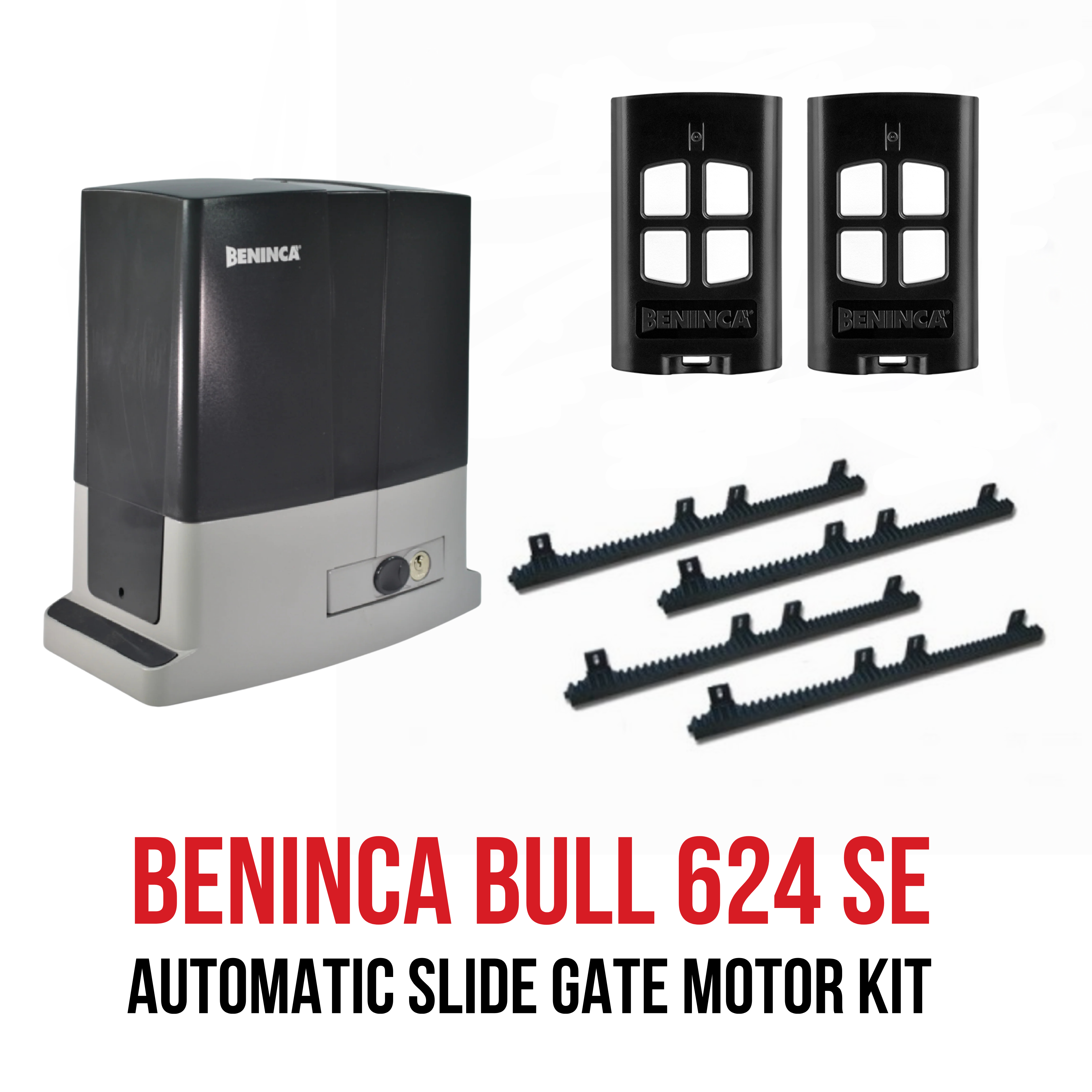

Package Contains:

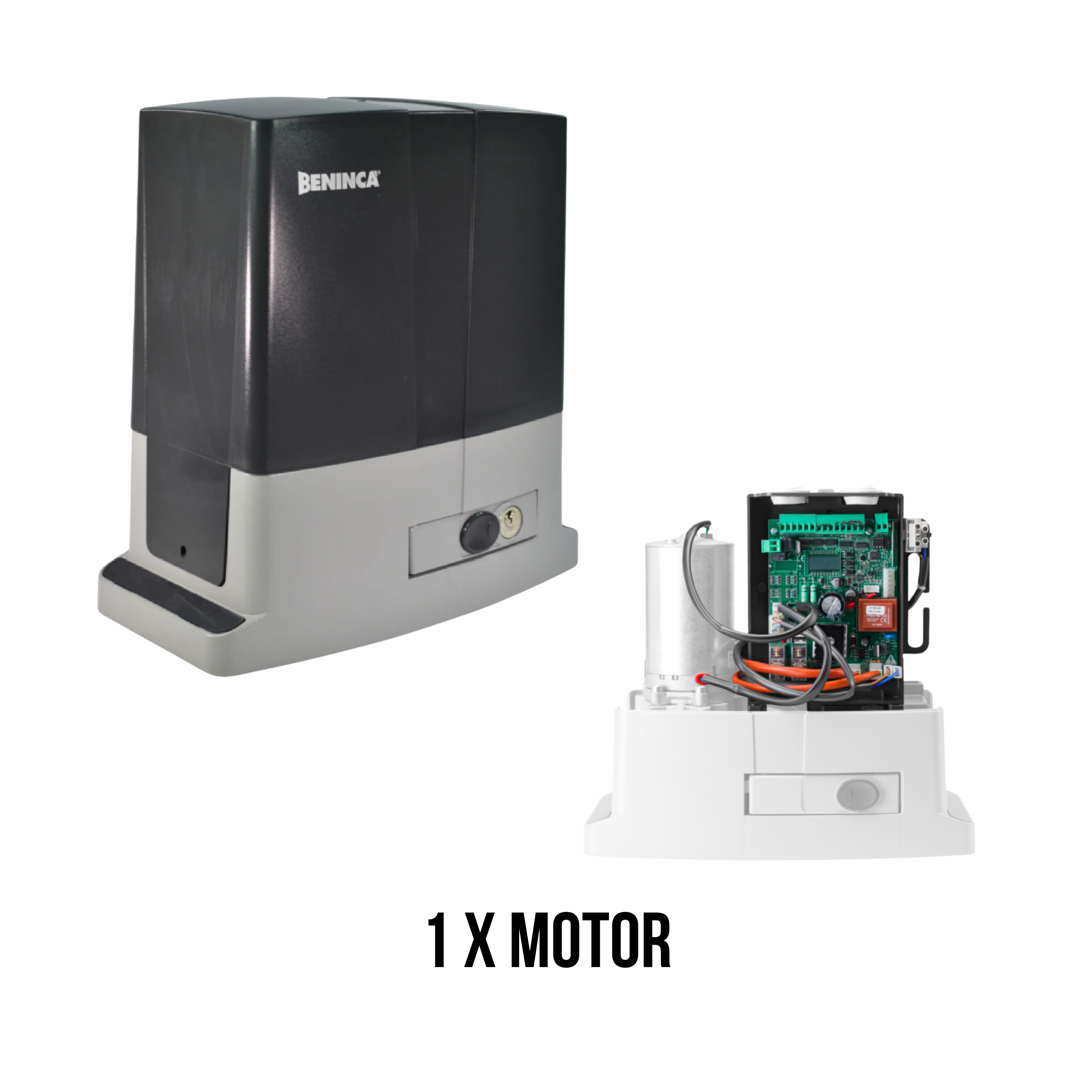

• BULL 624 SE – 1× sliding gate motor with built-in control unit and encoder

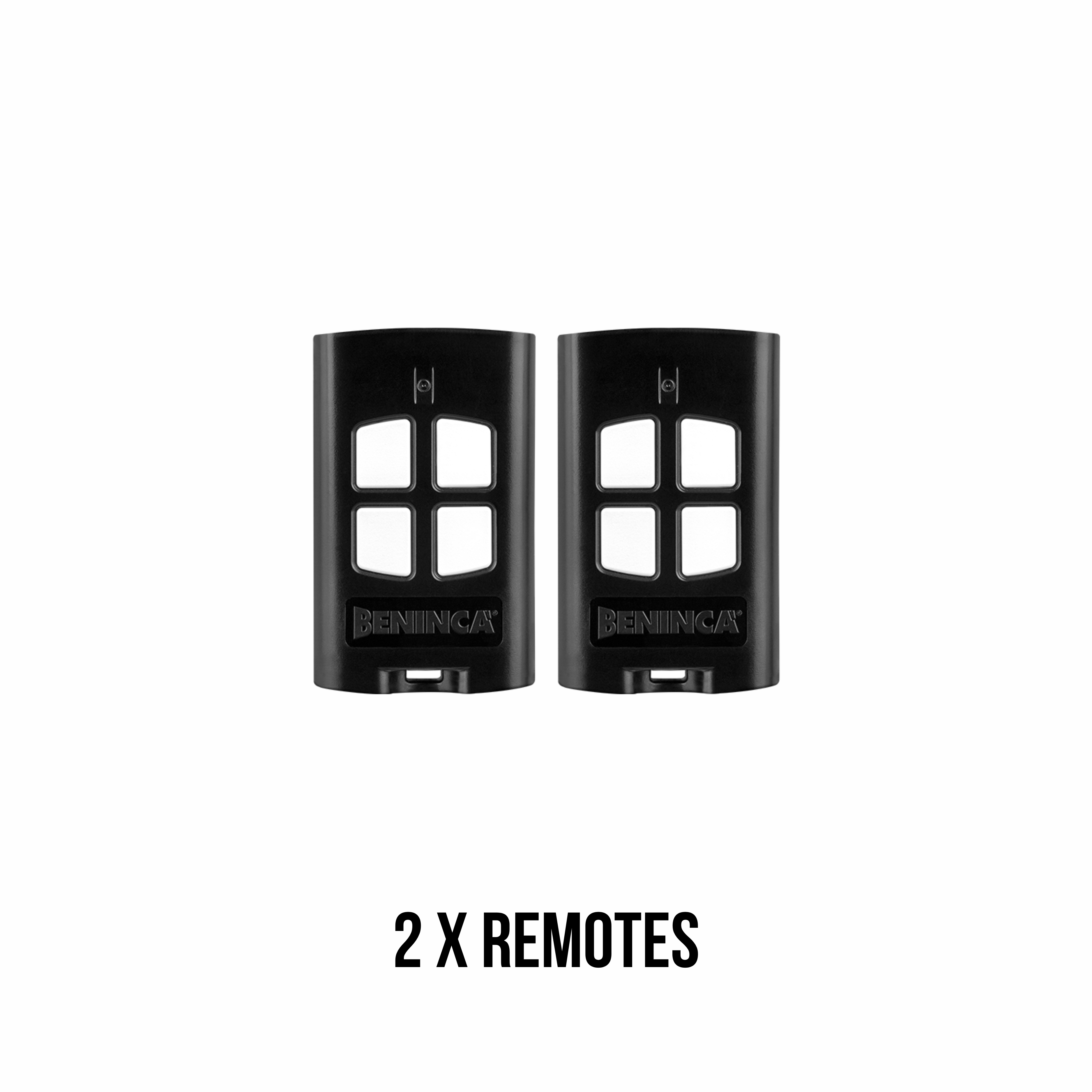

• TO.GO4A – 2× 4-channel remote controls
• RACKV6 – 4× nylon racks with steel core
