High Performance: Designed for intensive use, ideal for commercial and large residential sliding gates. Powerful 24 Vdc motor delivers smooth, reliable operation.
Safety & Precision: Equipped with a built-in encoder for precise position control and obstacle detection, ensuring maximum safety during operation.
Battery Backup Ready: Compatible with optional battery backup to maintain operation during power outages.
Durable Construction: Heavy-duty steel and aluminium components with IP44 protection for reliable outdoor use in all weather conditions.
Basic Information:
Motor power supply: 24 Vdc
Leaf maximum weight: 4,200 kg
Motor type: Electromechanical with oil-bath gearbox
Technical Data
Power supply: 230 V AC, 50 Hz
Absorption: 10.5 A
Motor power: 750 W
Speed: 0.26 m/s
Maximum thrust: 4,200 N
Duty cycle: Intensive use
Protection rating: IP44
Operating temperature: –20°C to +50°C
Dimensions: 400 mm × 255 mm × 345 mm (h)
Weight: 25 kg
Basic Control Board Functions
Integrated control unit with built-in receiver
Pedestrian passage function
Encoder-based obstacle detection
Adjustable slowdown in opening and closing
Automatic closing function
Soft-start and soft-stop for smooth operation
Compatible with a range of safety accessories
Package Contains:

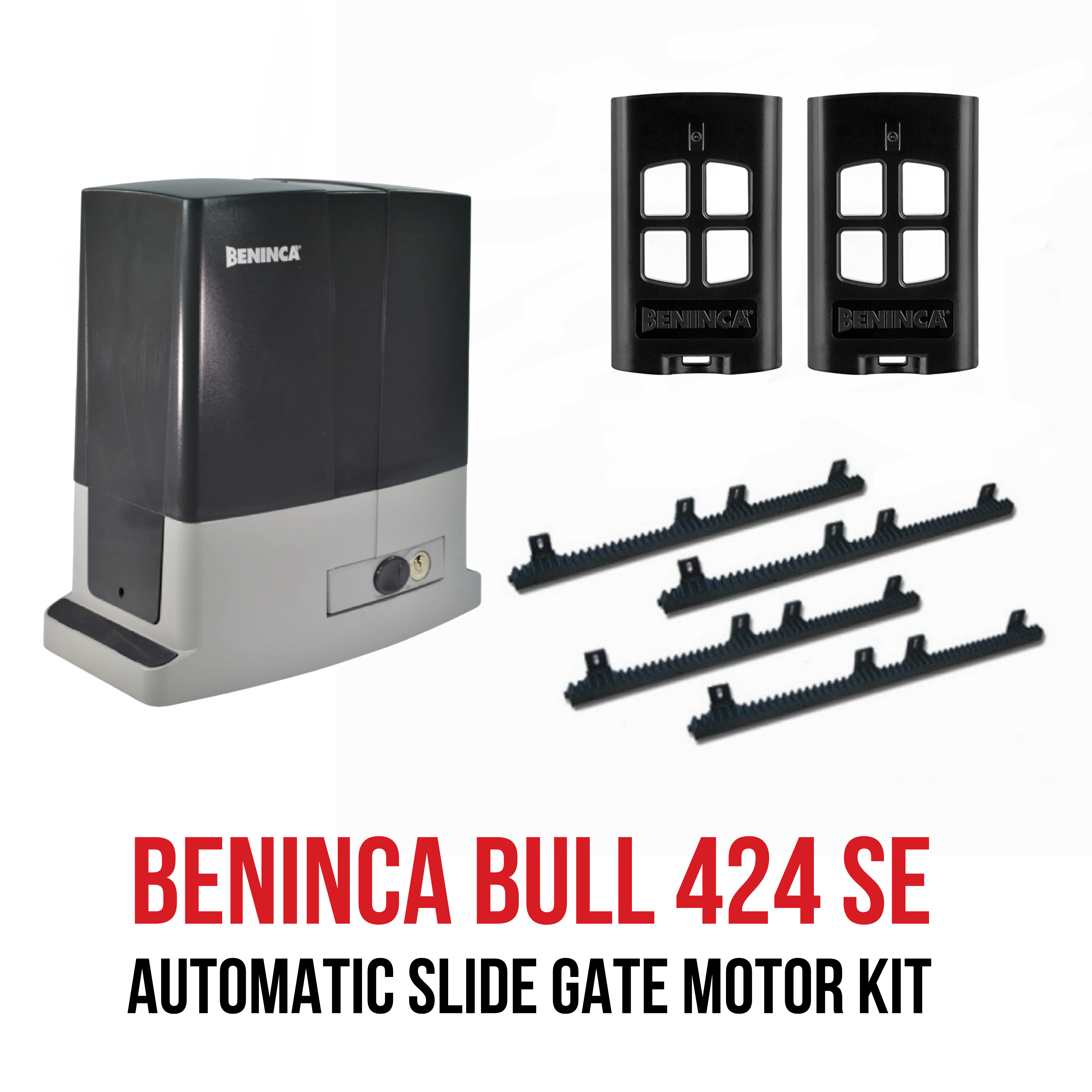

BULL 424 SE – 1× heavy-duty sliding gate motor with built-in control unit and encoder
