BENINCA BULL 17 OMI Automatic Slide Gate Motor Kit

Features & Benefits:

Extreme Power for Heavy Gates: Designed for intensive use on large sliding gates up to 1,700 kg, the BULL 17 OMI features a powerful 230 V AC oil-bath gearbox motor for maximum durability and performance.

Smooth & Controlled Operation: Integrated inverter technology provides variable speed control, allowing gradual acceleration and deceleration to reduce mechanical stress and enhance safety.

Advanced Safety & Precision: Built-in encoder ensures precise gate positioning and immediate obstacle detection for secure operation.

Engineered for Longevity: Oil-bath gearbox lubrication reduces wear, extending the motor’s lifespan, while IP44 protection ensures reliable year-round use.

Basic Information:

• Motor power supply: 230 V AC
• Leaf maximum weight: 1,700 kg
• Motor type: Electromechanical with oil-bath gearbox and inverter
• Technical Data
• Power supply: 230 V AC, 50–60 Hz
• Absorption: 3.5 A
• Motor power: 750 W
• Speed: 0.10–0.24 m/s (adjustable via inverter)
• Maximum thrust: 1,400 N
• Duty cycle: Intensive use
• Protection rating: IP44
• Operating temperature: –20 °C to +50 °C
• Dimensions: 400 mm × 255 mm × 345 mm (h)
• Weight: 21 kg

Basic Control Board Functions:

• Integrated control unit with inverter and built-in receiver
• Adjustable speed with soft-start and soft-stop
• Encoder-based obstacle detection
• Pedestrian opening function
• Automatic closing function
• Adjustable torque and operating parameters
• Compatibility with multiple safety accessories

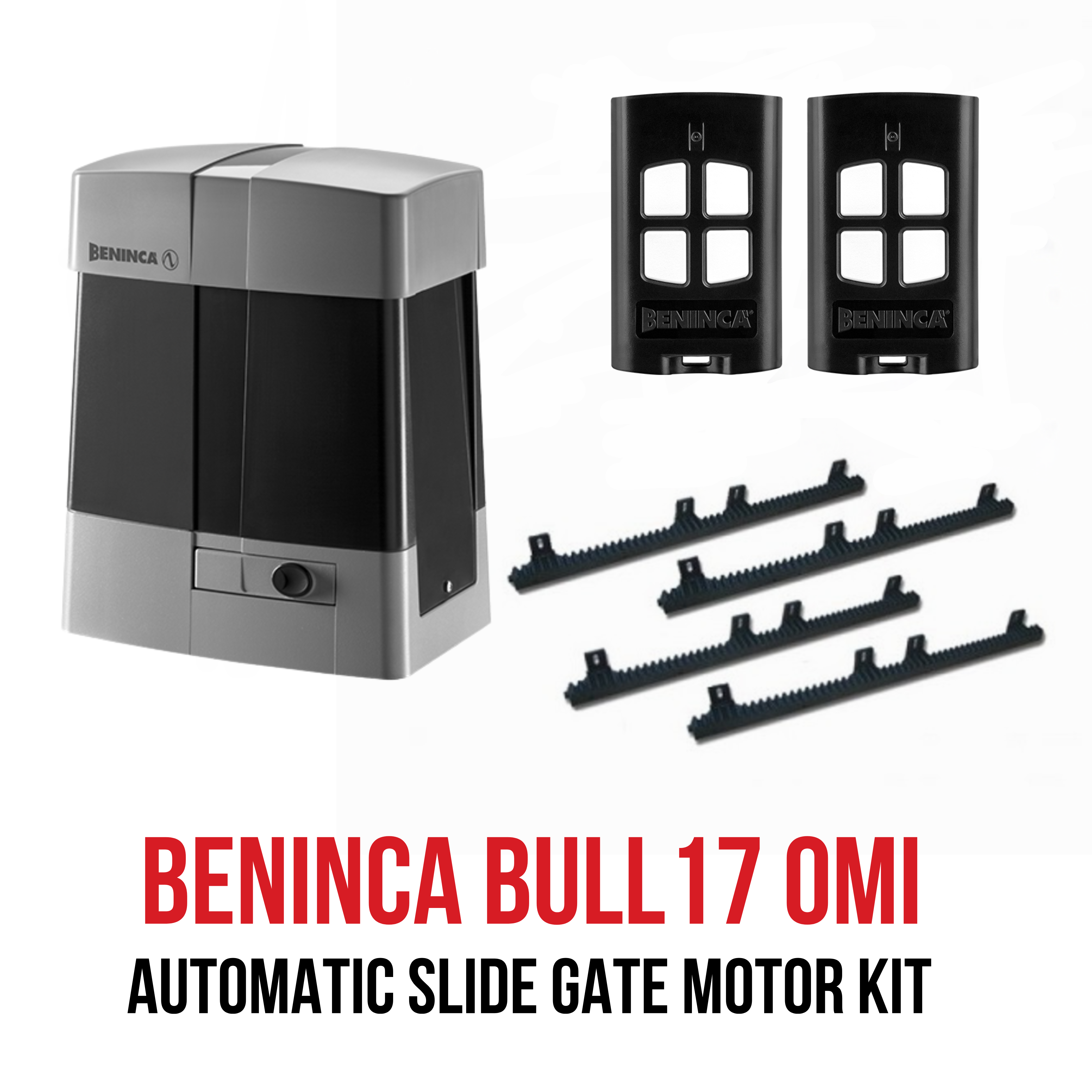

Package Contains:

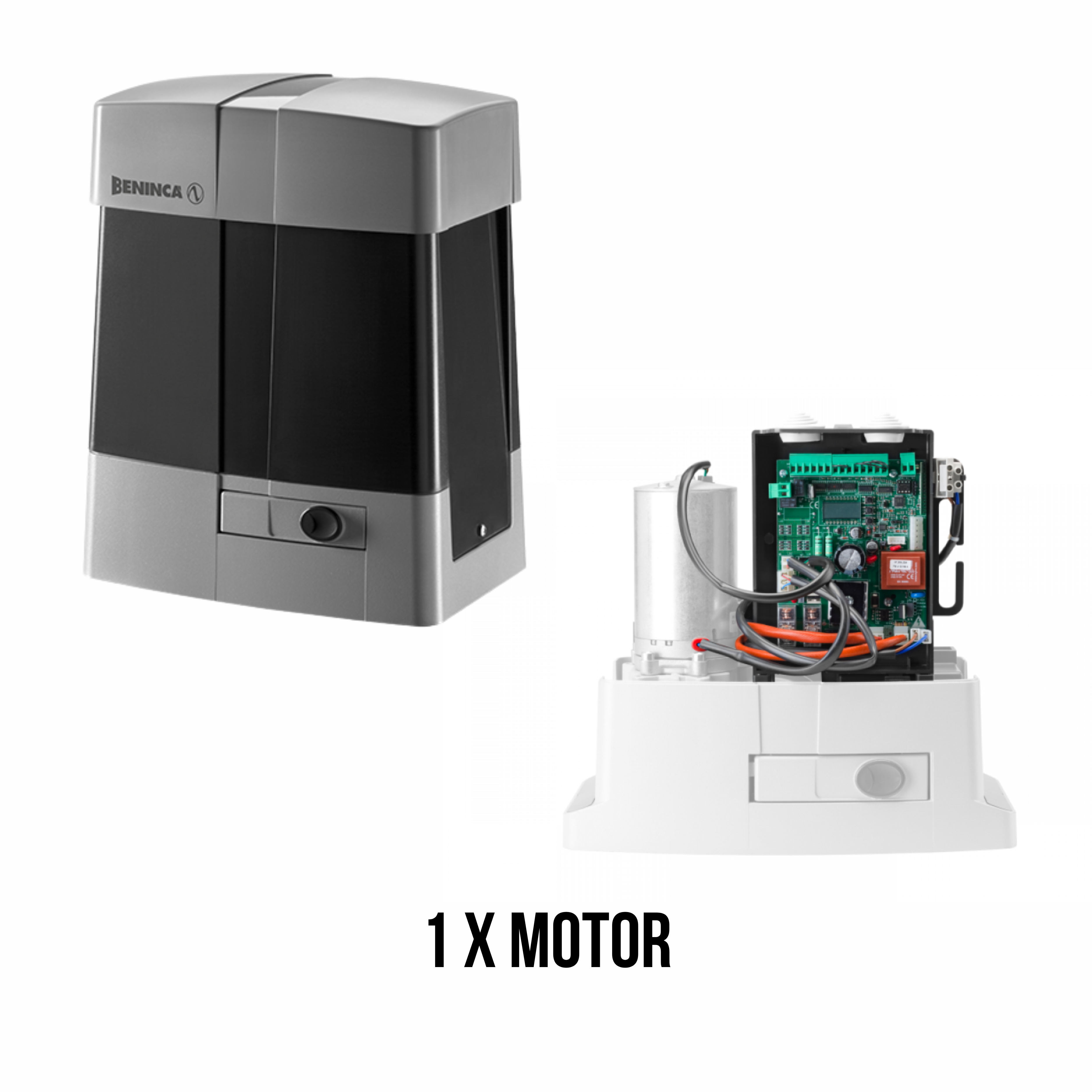

• BULL 17 OMI – 1× sliding gate motor with built-in inverter control unit and encoder

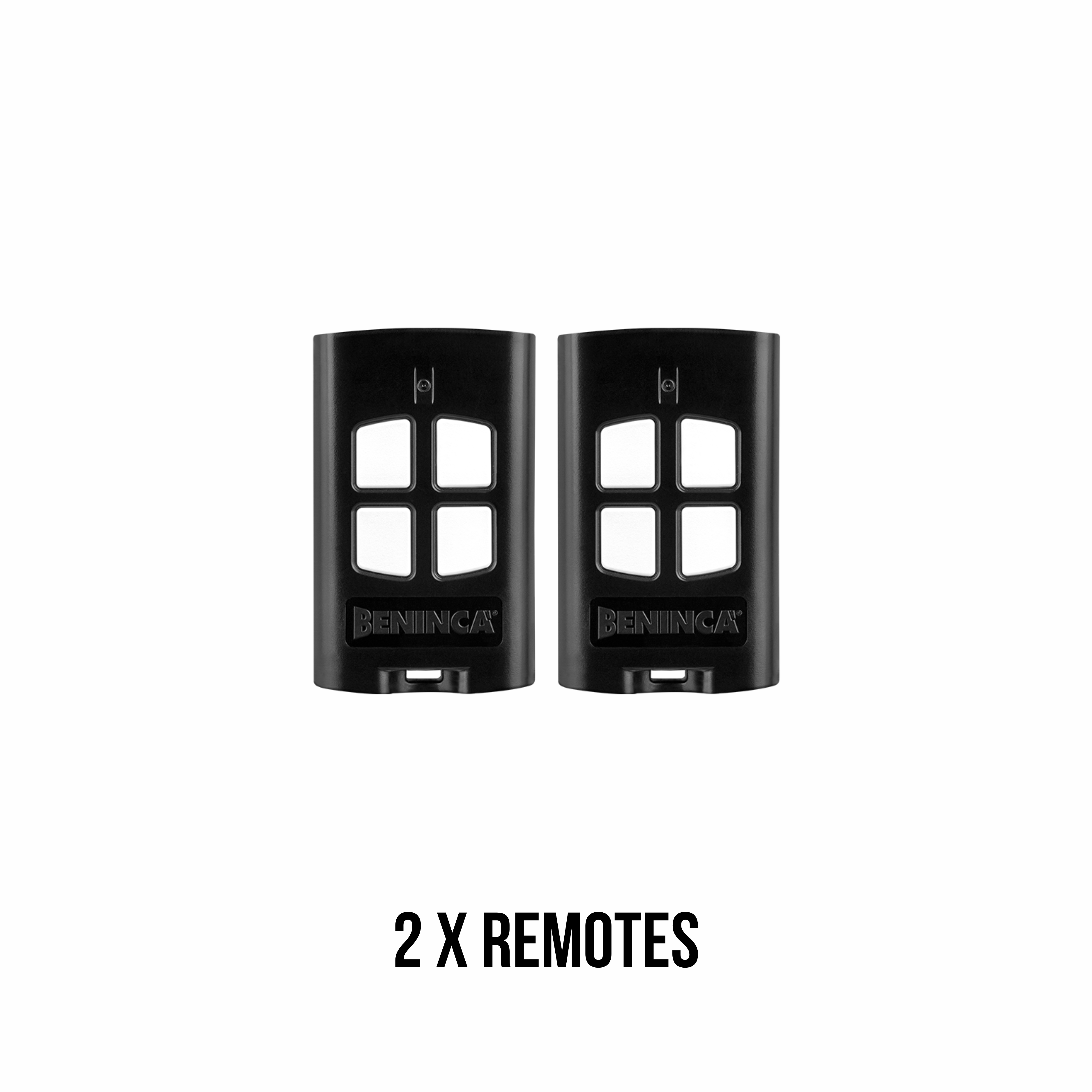

• TO.GO4A – 2× 4-channel remote controls

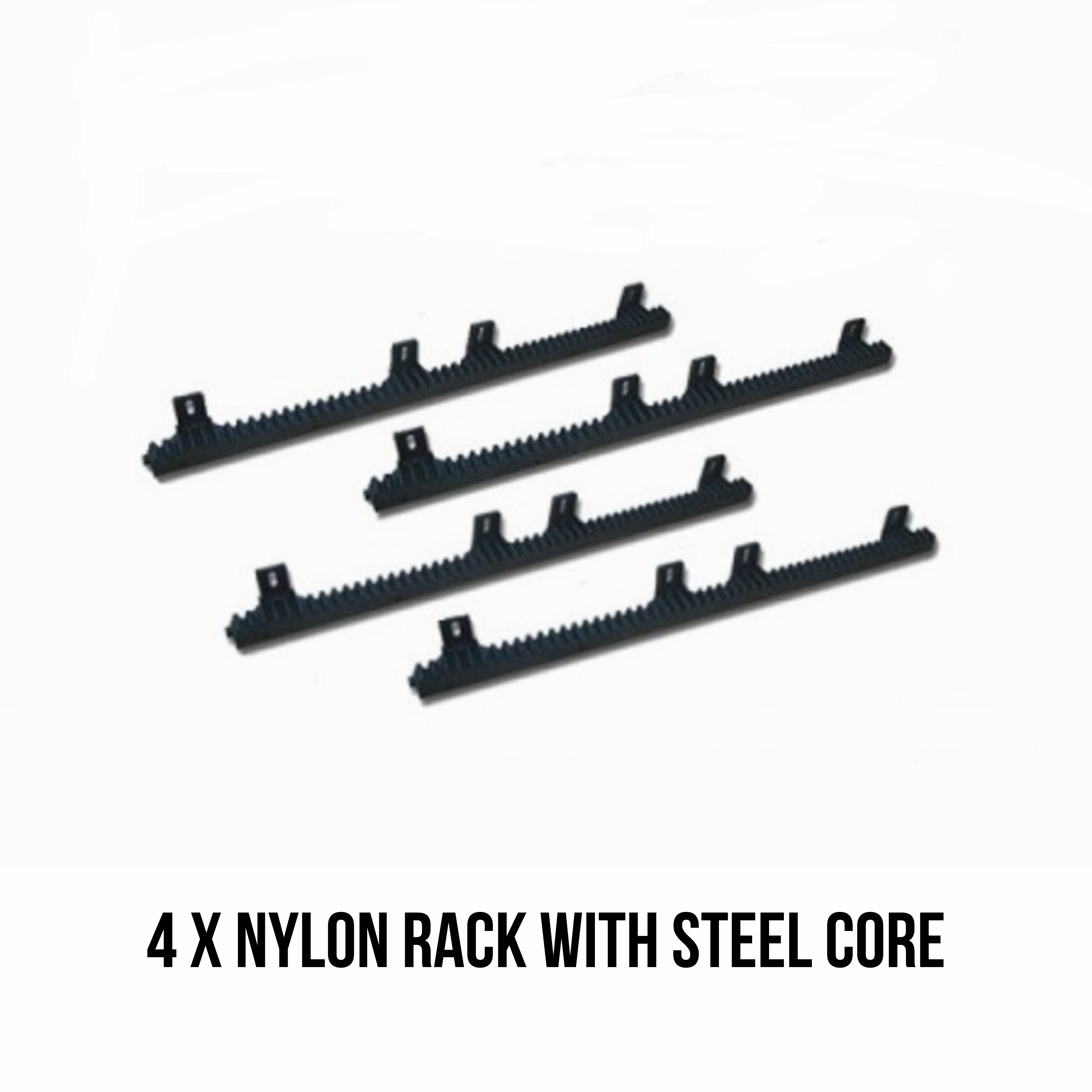

• RACKV6 – 4× nylon racks with steel core
