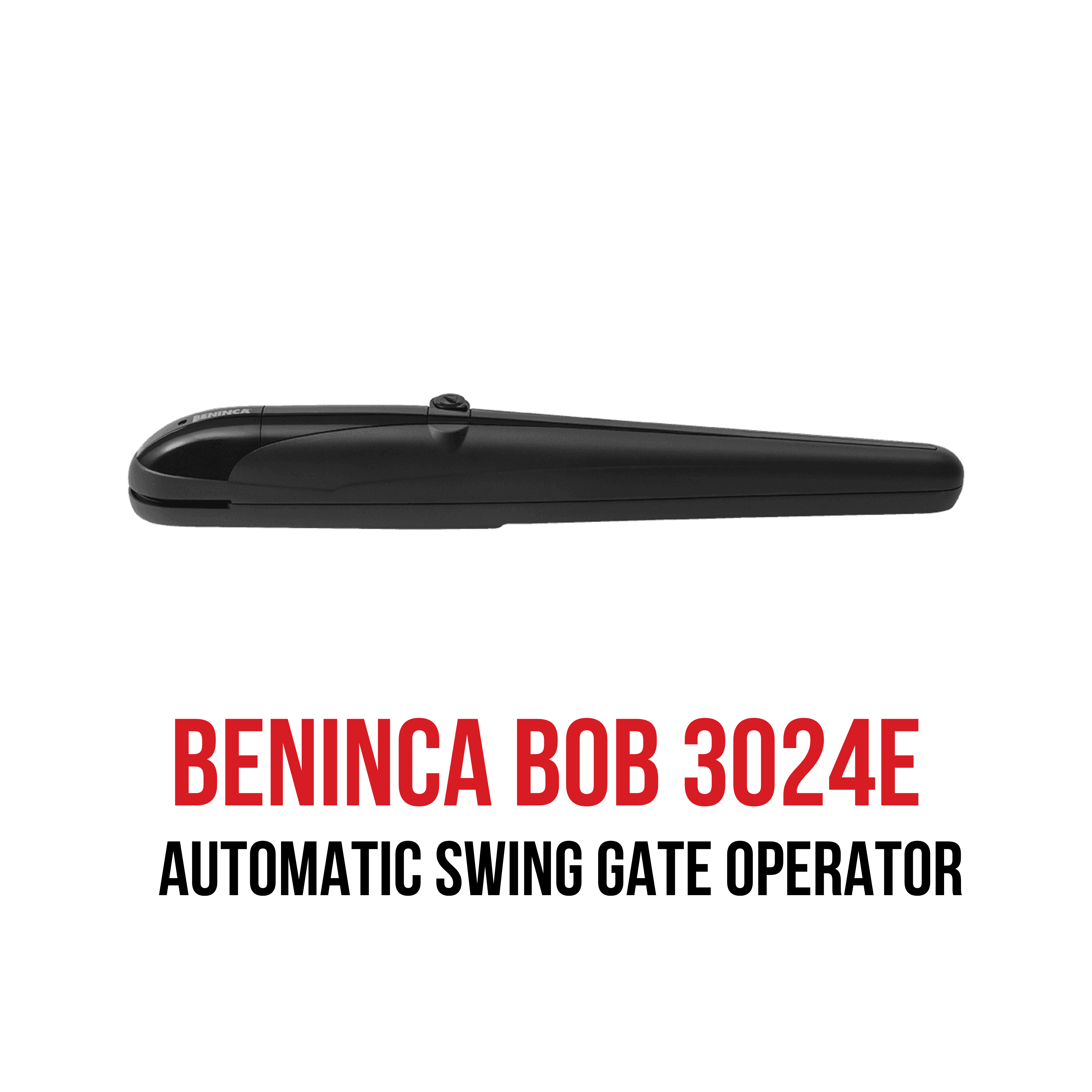

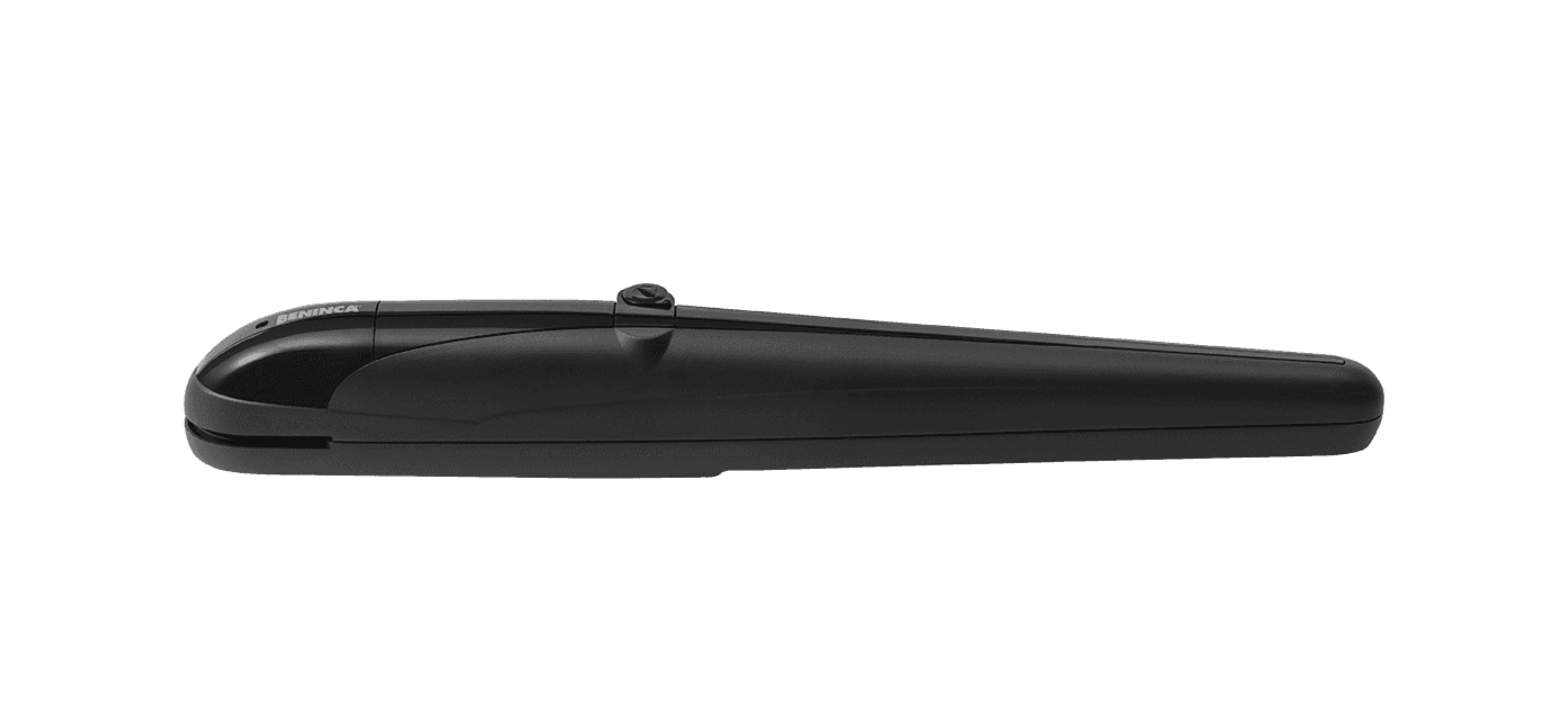

BENINCA BOB 3024E Swing Gate Motor

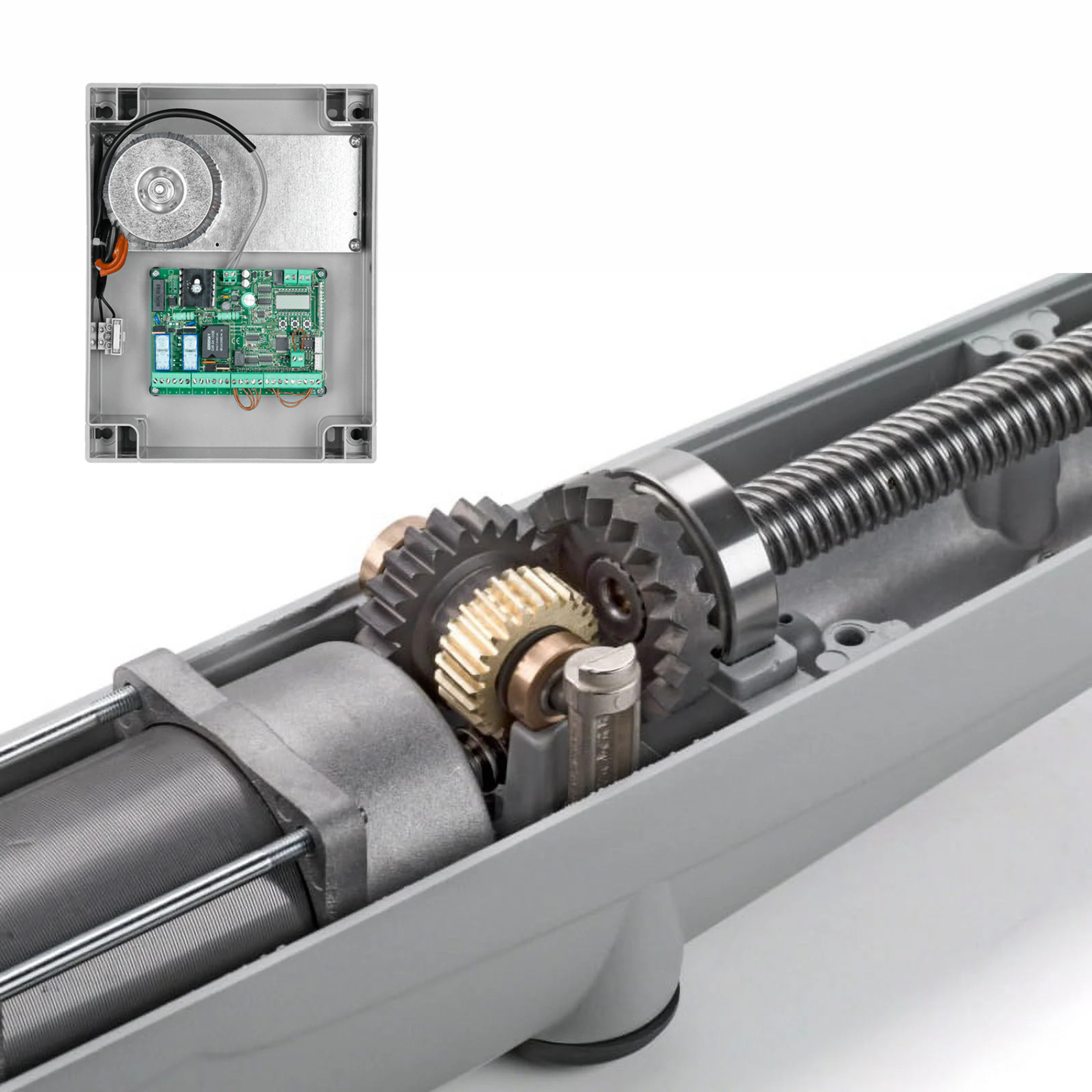

The Benincà BOB3024E.DK is a 24 V DC electromechanical geared motor designed for intensive use on swing gates up to 3 m per leaf. Built with a Ø 20 mm rolled ball-screw and high-quality materials, it delivers smooth, quiet, and long-lasting performance. The self-locking design keeps the gate securely closed without additional locks, while two adjustable mechanical stops provide precise open and close positioning.

Equipped with an encoder for accurate movement control and an amperometric detection system for obstacle safety, the motor offers both precision and protection. A top-access manual release ensures easy operation during power outages, and it is compatible with optional battery backup systems.

Specifications:

• Motor supply: 24 V DC
• Maximum gate leaf length: 3 m
• Maximum thrust: 1,500 N
• Standard stroke: 270 mm (extendable to 325 mm)
• Opening time: ~12 s to 90°
• Duty cycle: Intensive use
• Protection rating: IP44
• Operating temperature: –20 °C to +50 °C
• Weight: 6.7 kg

Package Contains:

• 1 × BOB3024E.DK motor with encoder and manual release
