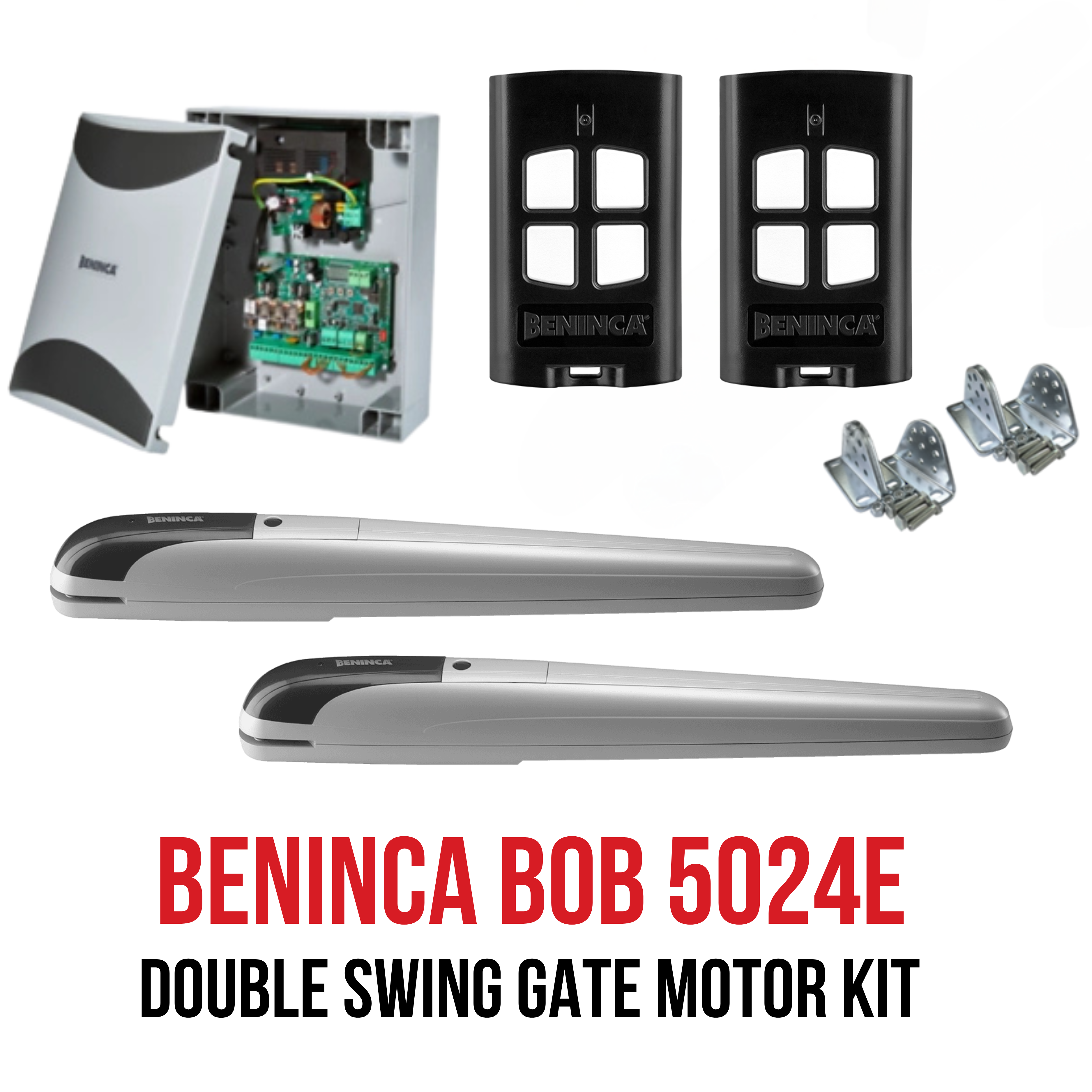

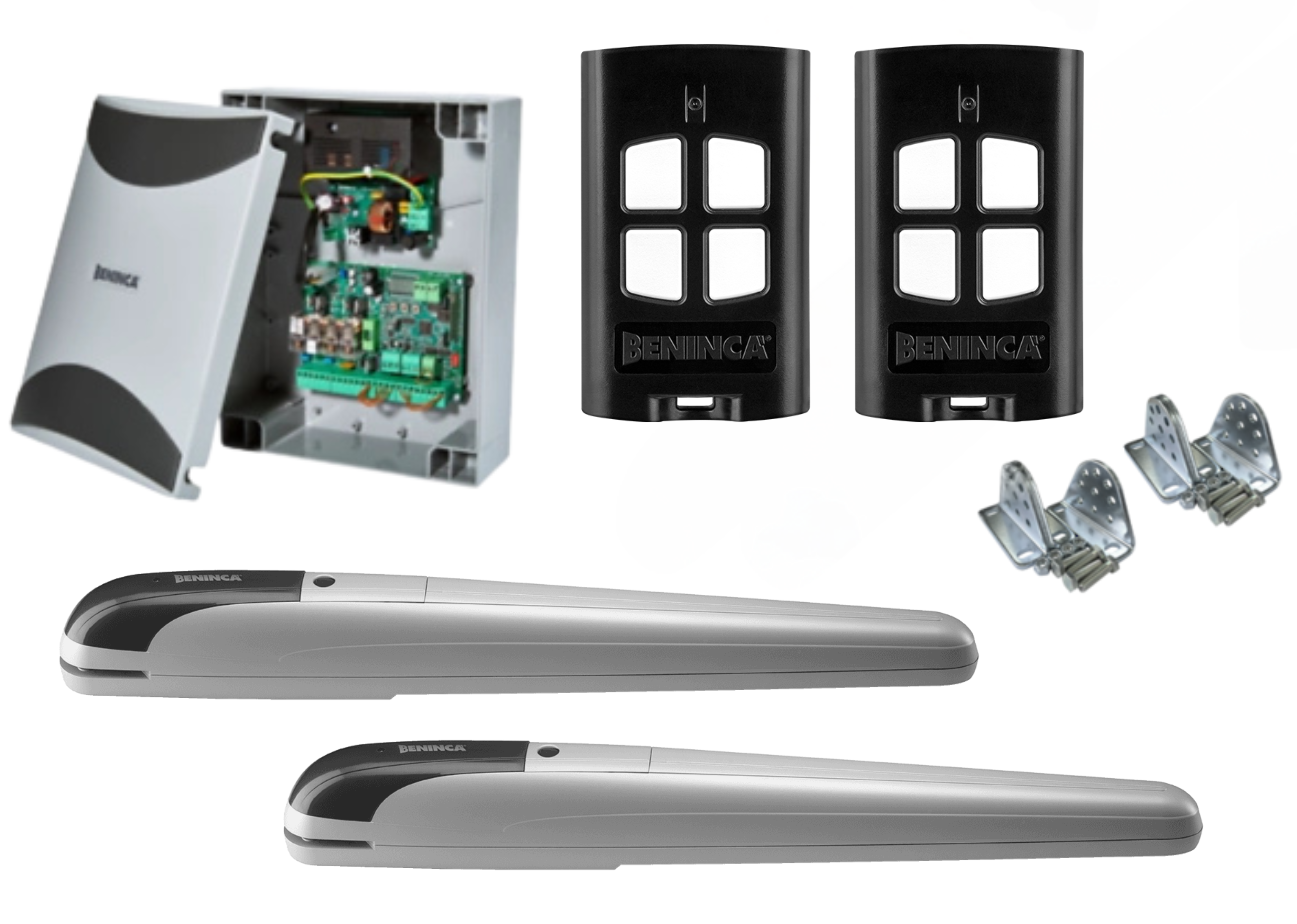

BENINCA BOB 5024E Double Swing Gate Motor Kit

Designed for two-leaf swing gates up to 5 m per leaf, this kit offers a complete high-performance automation solution. It includes two BOB5024E motors with encoders for perfectly synchronized movement, smooth operation, and long-term reliability.
The control system features programmable slowdowns, pedestrian opening mode, adjustable torque settings, and integrated obstacle detection for maximum safety. Manual release on each motor ensures gates can be operated during power outages, and the weather-resistant build is ideal for intensive use in residential or commercial settings.

Specifications:

• Motor supply: 24 V DC
• Max absorbed current: 6.7 A
• Maximum thrust: 2,200 N
• Opening time: ~21 seconds to 90°
• Stroke: 455 mm (max 520 mm)
• Duty cycle: Intensive use
• Protection rating: IP44
• Operating temperature: –20 °C to +50 °C
• Weight: 10.2 kg per motor

Package Contains:

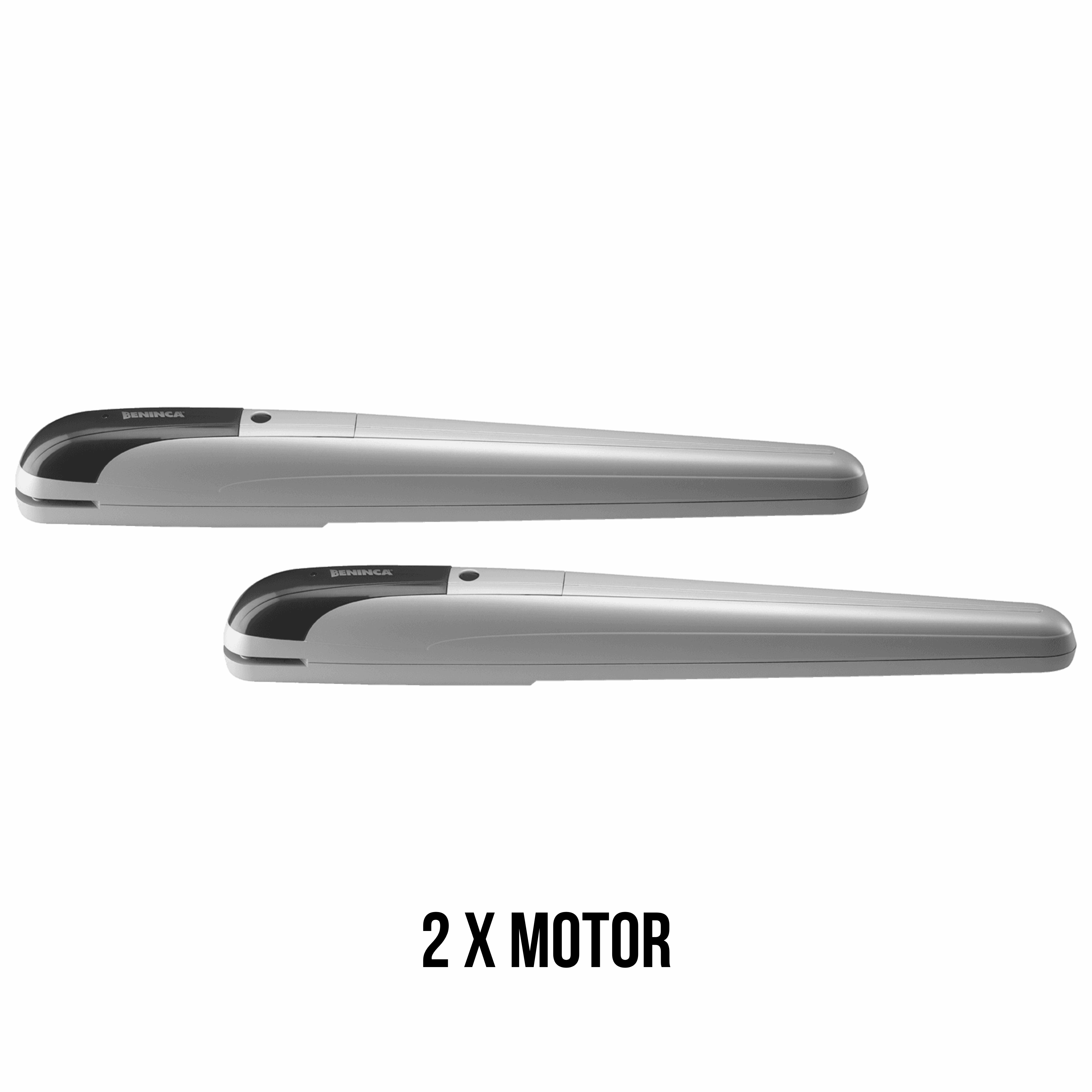

• 2 × BOB5024E motors with encoders and manual release
• 1 × BRAINY24 PLUS control board with LCD display, built-in 433.92 MHz radio receiver, programmable parameters, anti-crush safety, and maintenance alerts

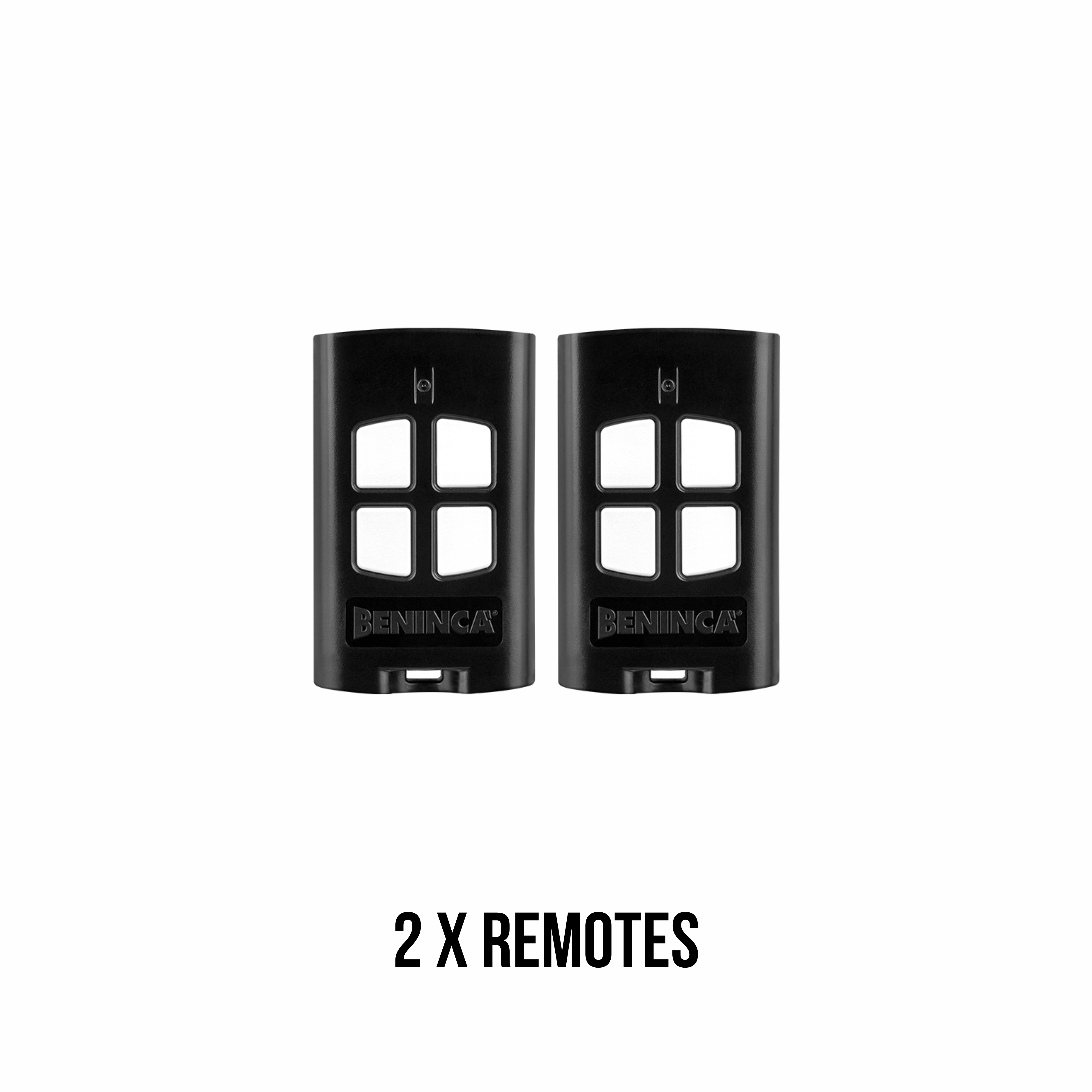

• 2 × TO.GO4A 4-channel remote controls

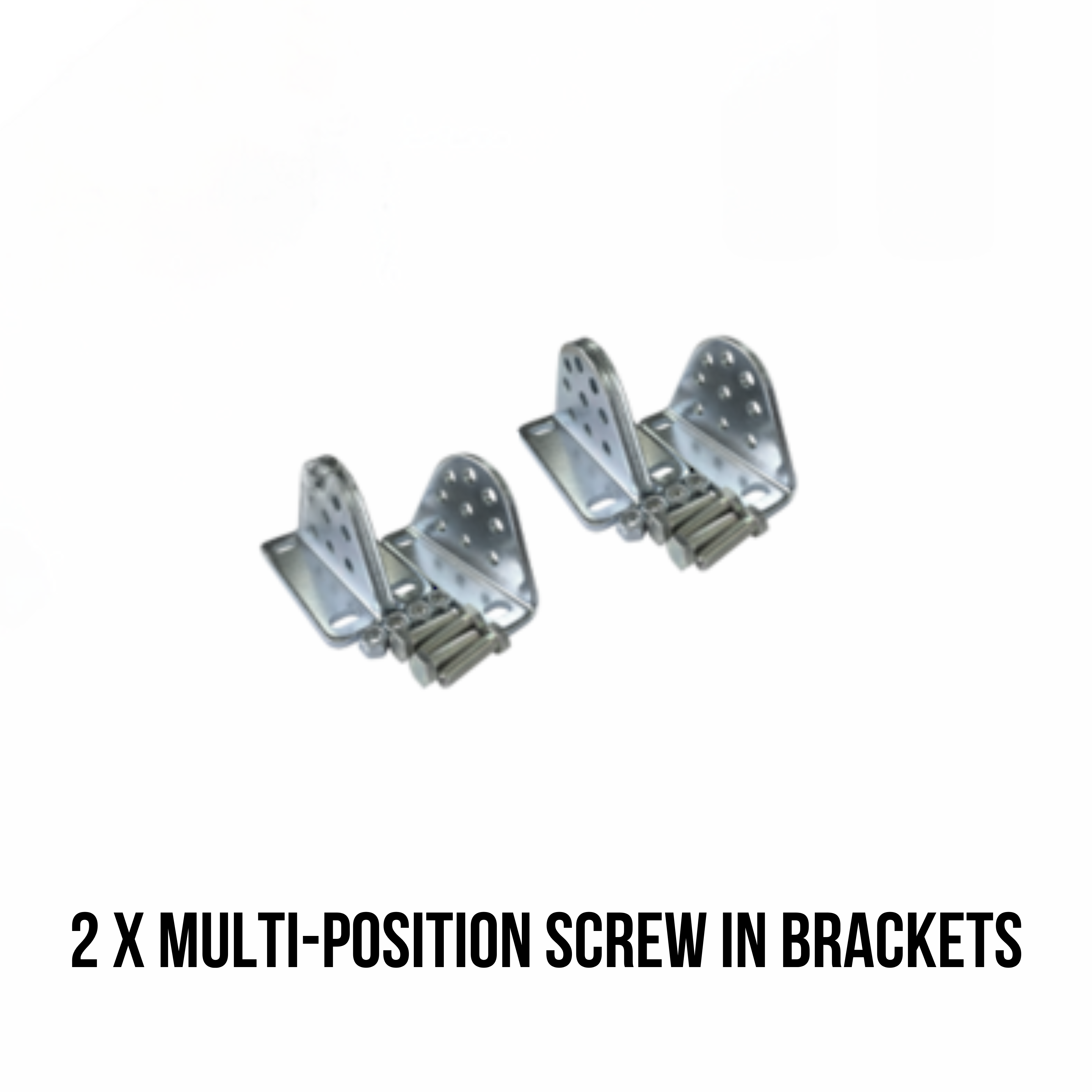

• 2 × B.SR multi-position screw-in brackets
