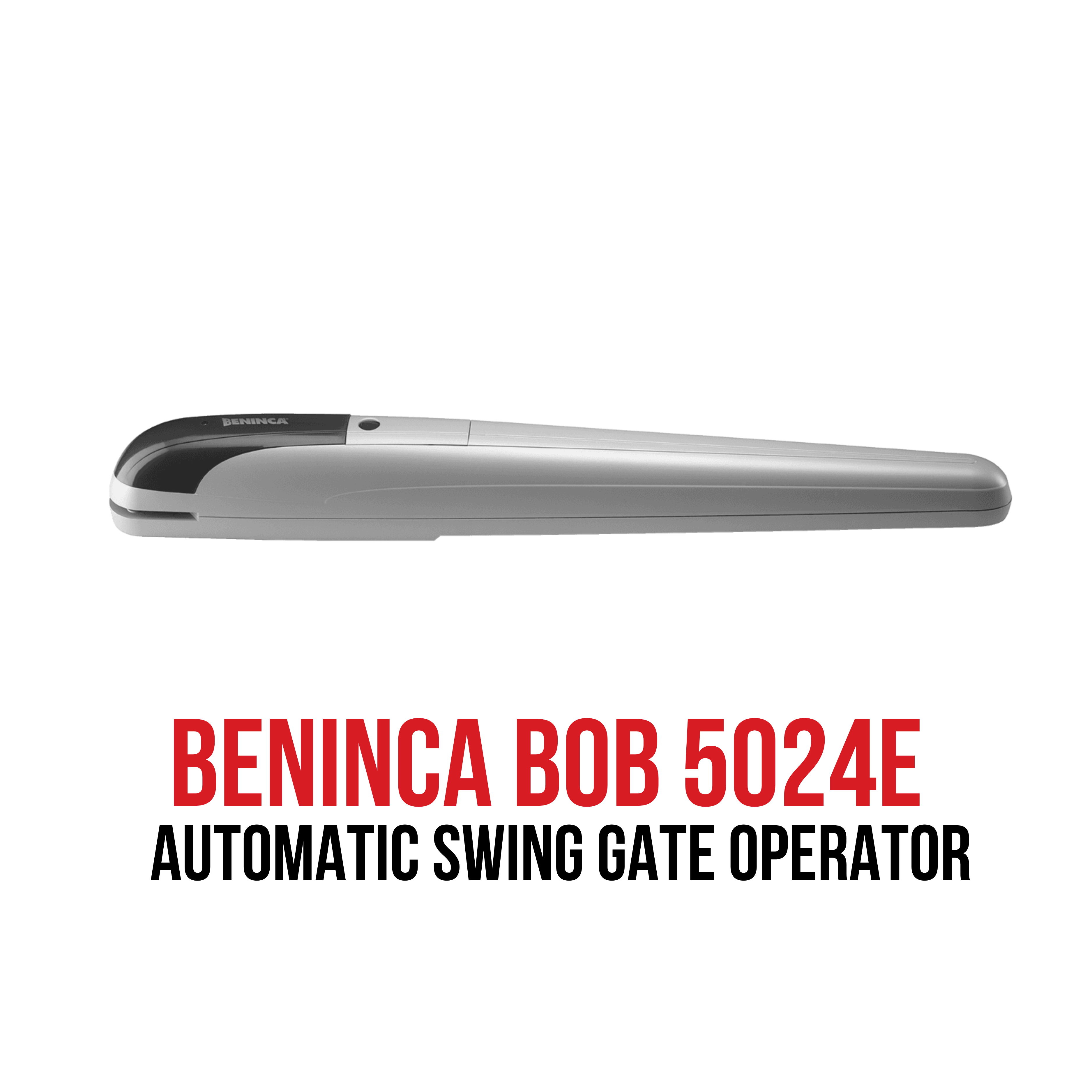

BENINCA BOB 5024E Single Swing Gate Motor

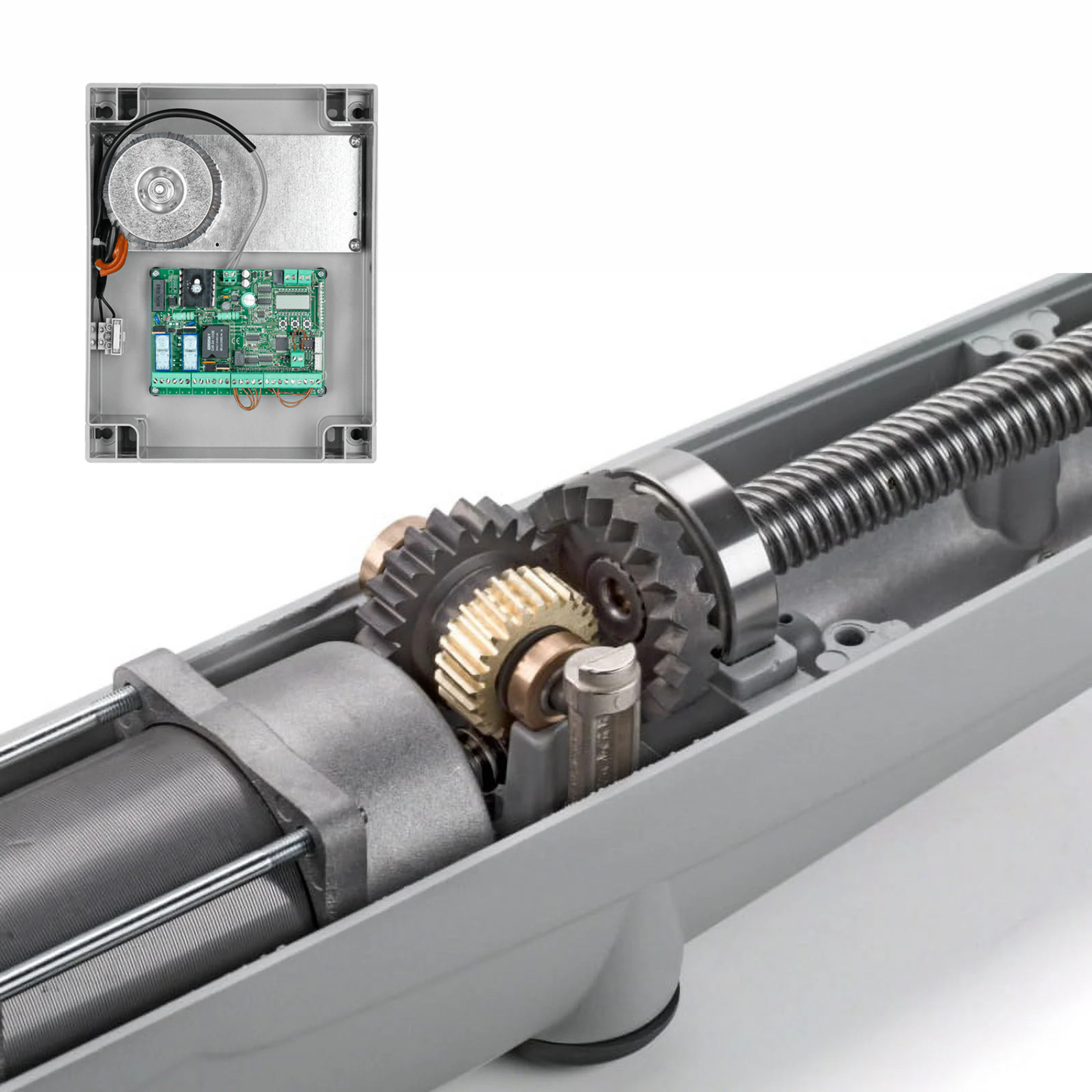

The BOB5024E is a heavy-duty 24 V DC electromechanical gear motor engineered for intensive use on swing gates up to 5 m per leaf. Its robust worm-screw mechanism and rolled Ø 20 mm ball screw deliver smooth, precise motion with minimal noise.
Equipped with an integrated encoder, the motor ensures accurate position control and enhanced safety through amperometric obstacle detection. Two adjustable mechanical stops define the open and closed positions precisely, while the irreversible design locks the gate securely without the need for additional locks.
A top-access manual release allows operation during power outages, and the motor is compatible with optional backup batteries for uninterrupted use.

Specifications:

• Motor supply: 24 V DC
• Max absorbed current: 6.7 A
• Maximum thrust: 2,200 N
• Opening time: ~21 seconds to 90°

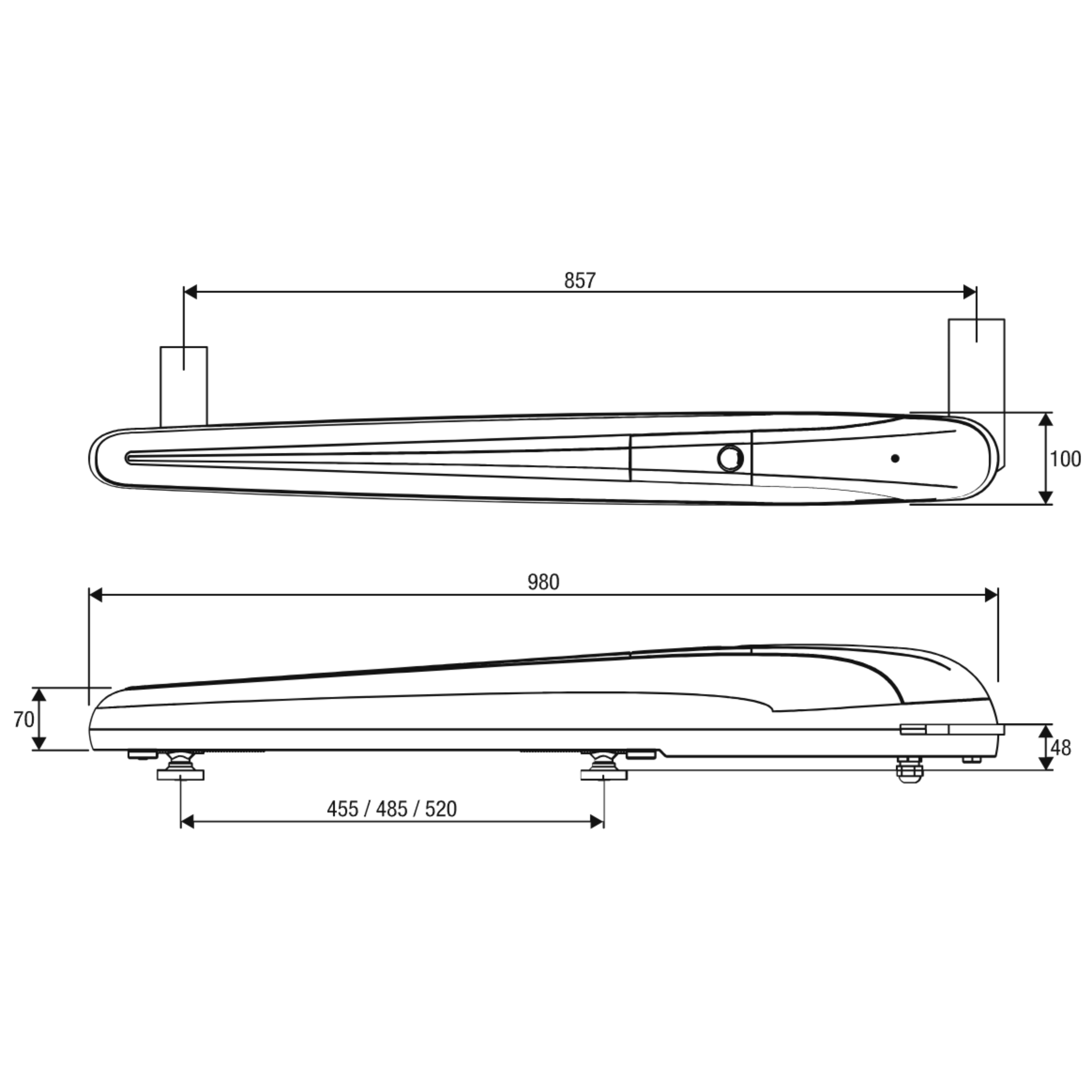

• Stroke: 455 mm (max 520 mm)
• Duty cycle: Intensive use
• Protection rating: IP44
• Operating temperature: –20 °C to +50 °C
• Weight: 10.2 kg

Package Contains:

• 1 × BOB5024E motor with encoder and manual release
