BENINCA BOB 5024E Single Swing Gate Motor Kit

A complete automation package for single-leaf swing gates up to 5 m, combining the power of the BOB5024E motor with an advanced control system. The kit delivers reliable performance, smooth operation, and comprehensive safety features.
The integrated encoder and obstacle detection system ensure precise motion control, while adjustable mechanical stops guarantee accurate gate positioning. Slowdown at the end of travel reduces mechanical stress, and the manual release allows operation during power failures.

Specifications:

• Motor supply: 24 V DC
• Max absorbed current: 6.7 A
• Maximum thrust: 2,200 N
• Opening time: ~21 seconds to 90°
• Stroke: 455 mm (max 520 mm)
• Duty cycle: Intensive use
• Protection rating: IP44
• Operating temperature: –20 °C to +50 °C
• Weight: 10.2 kg

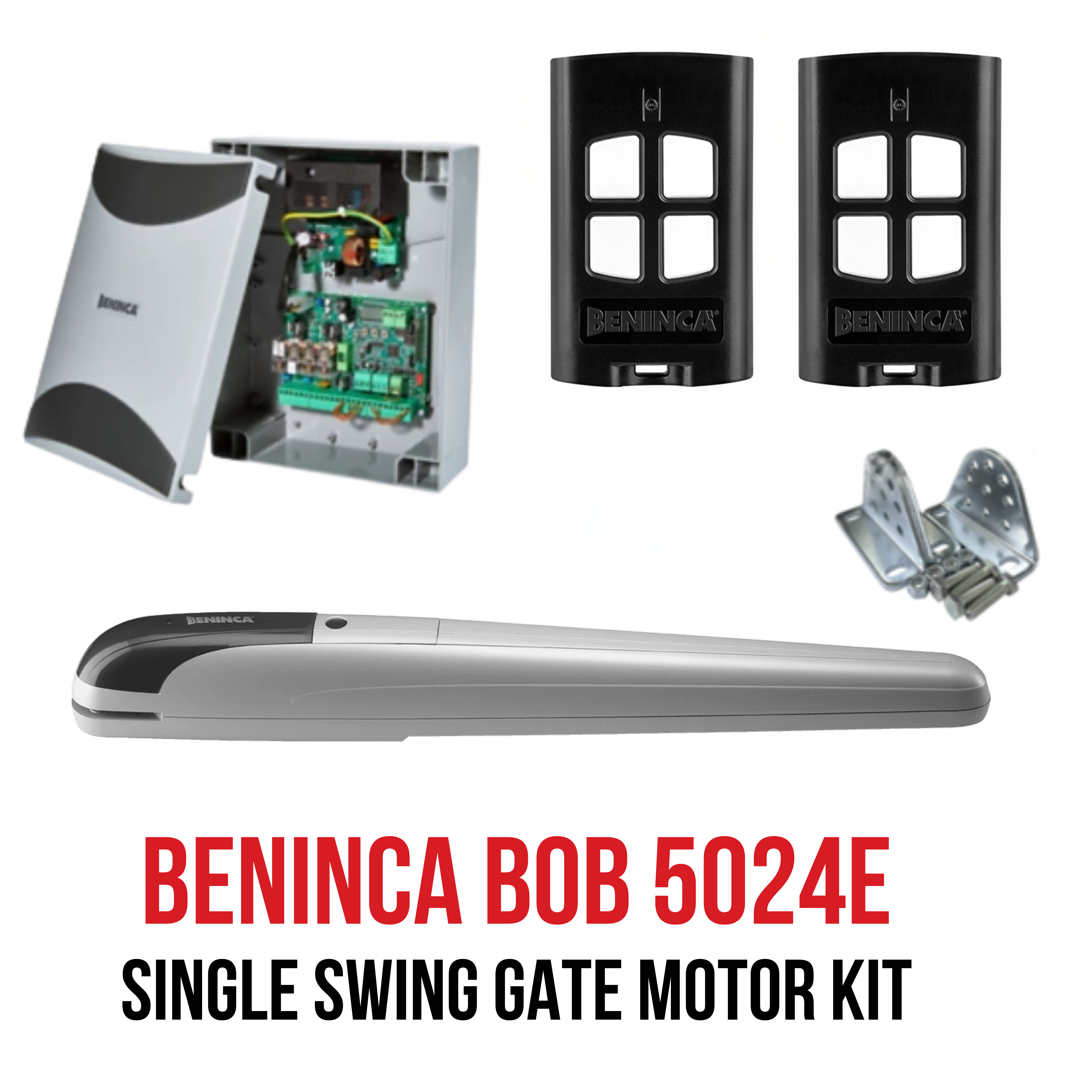

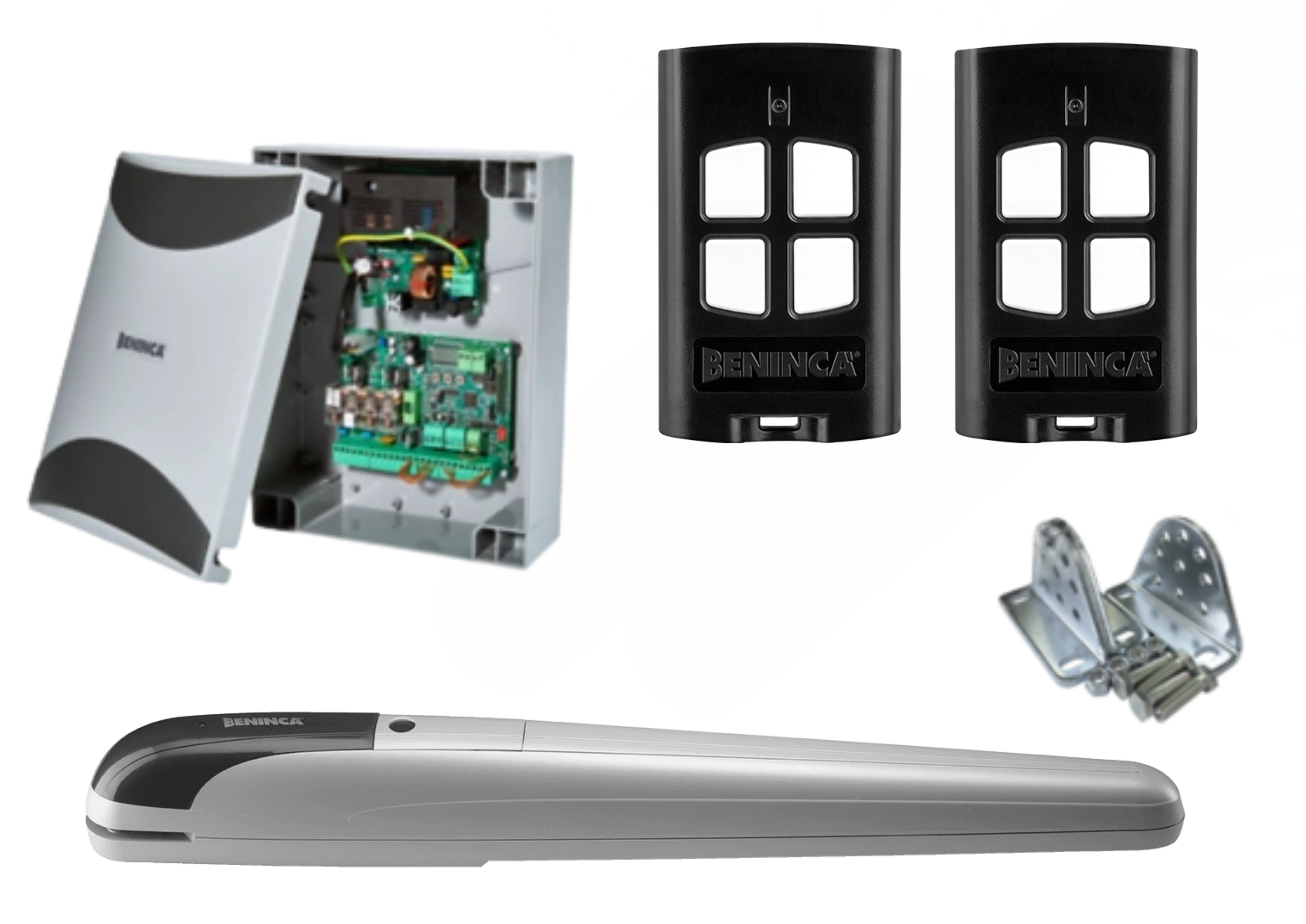

Package Contains:

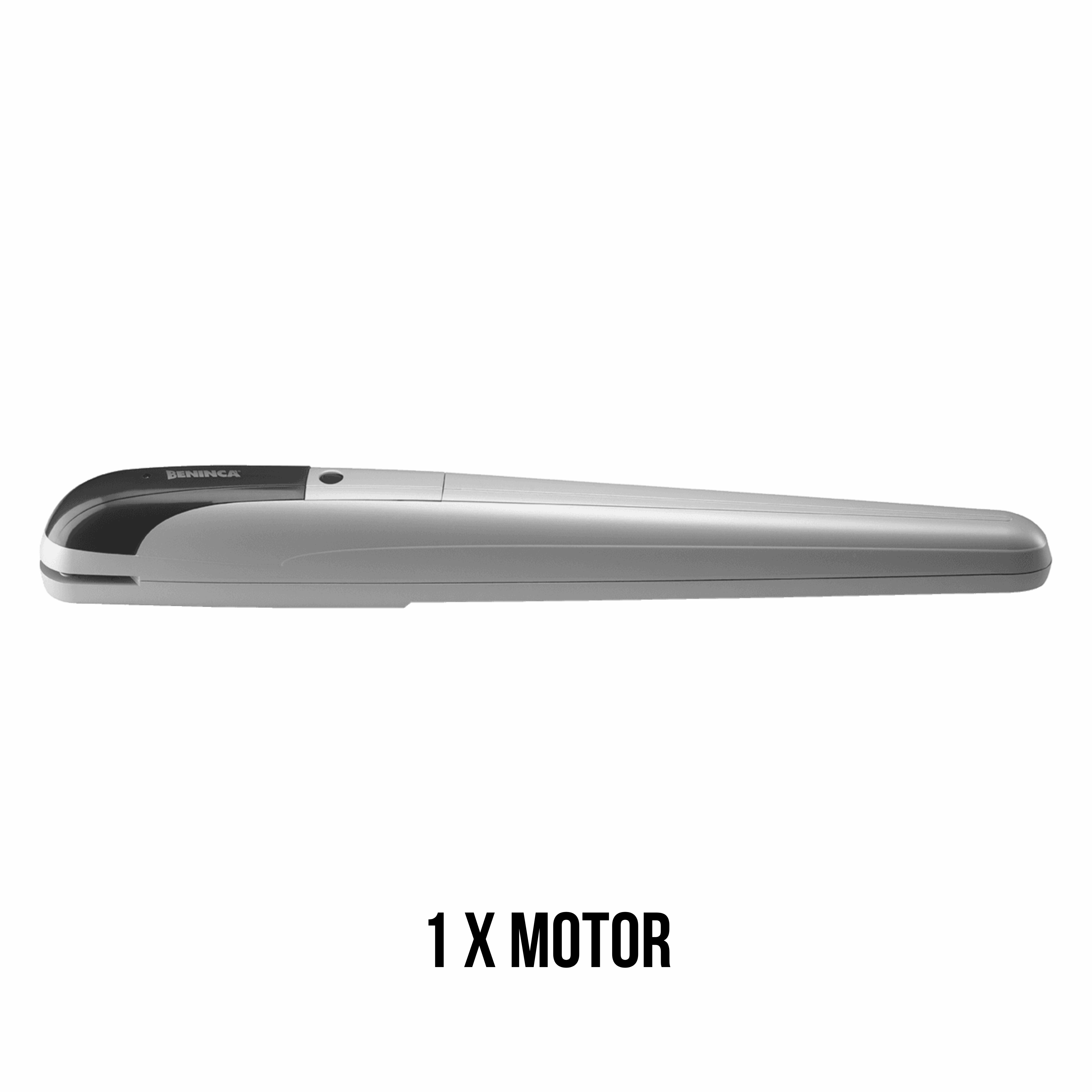

• 1 × BOB5024E motor with encoder and manual release
• 1 × BRAINY24 PLUS control board with LCD display, built-in 433.92 MHz radio receiver, programmable parameters, anti-crush safety, and maintenance alerts
• 2 × TO.GO4A 4-channel remote controls

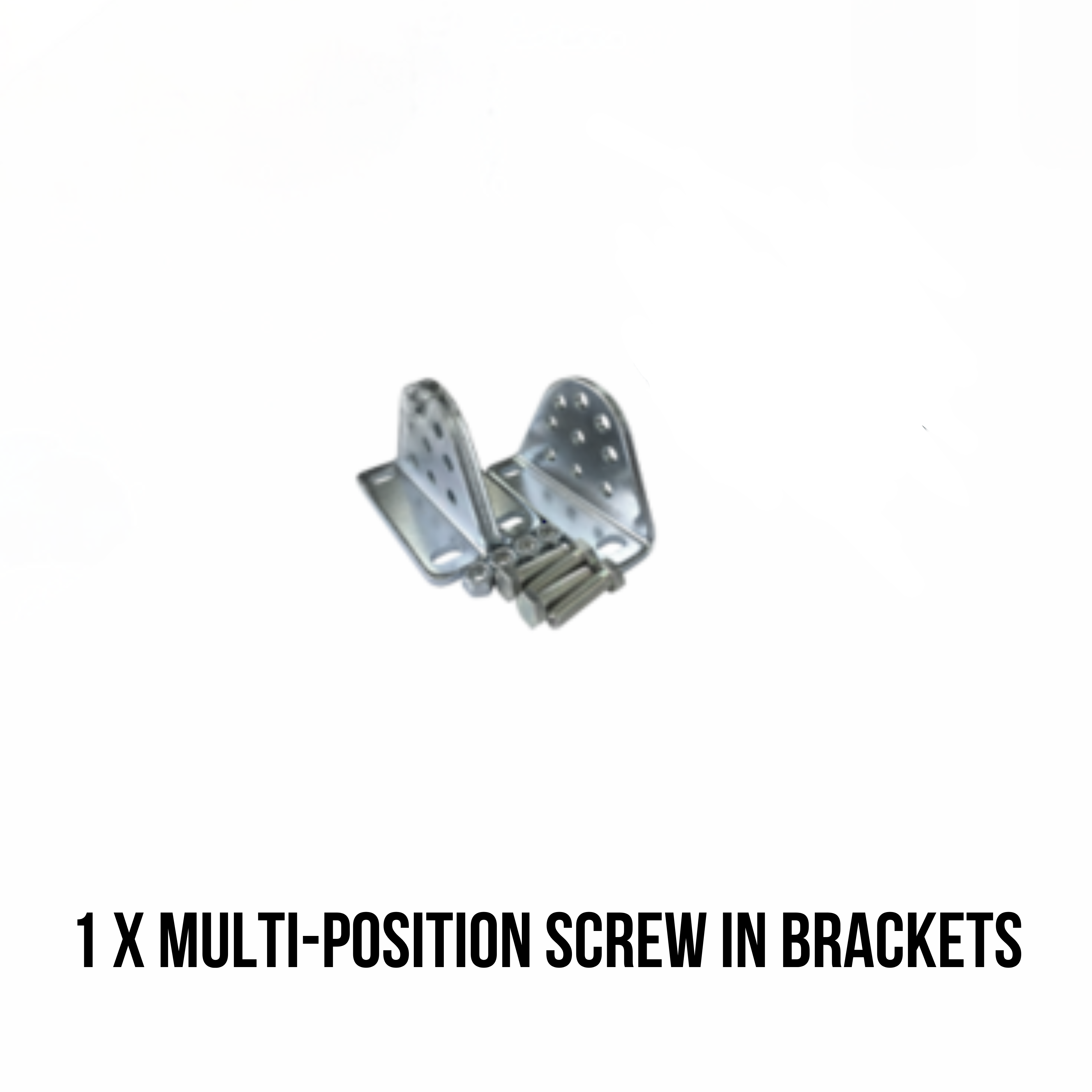

• 1 × B.SR multi-position screw-in brackets
