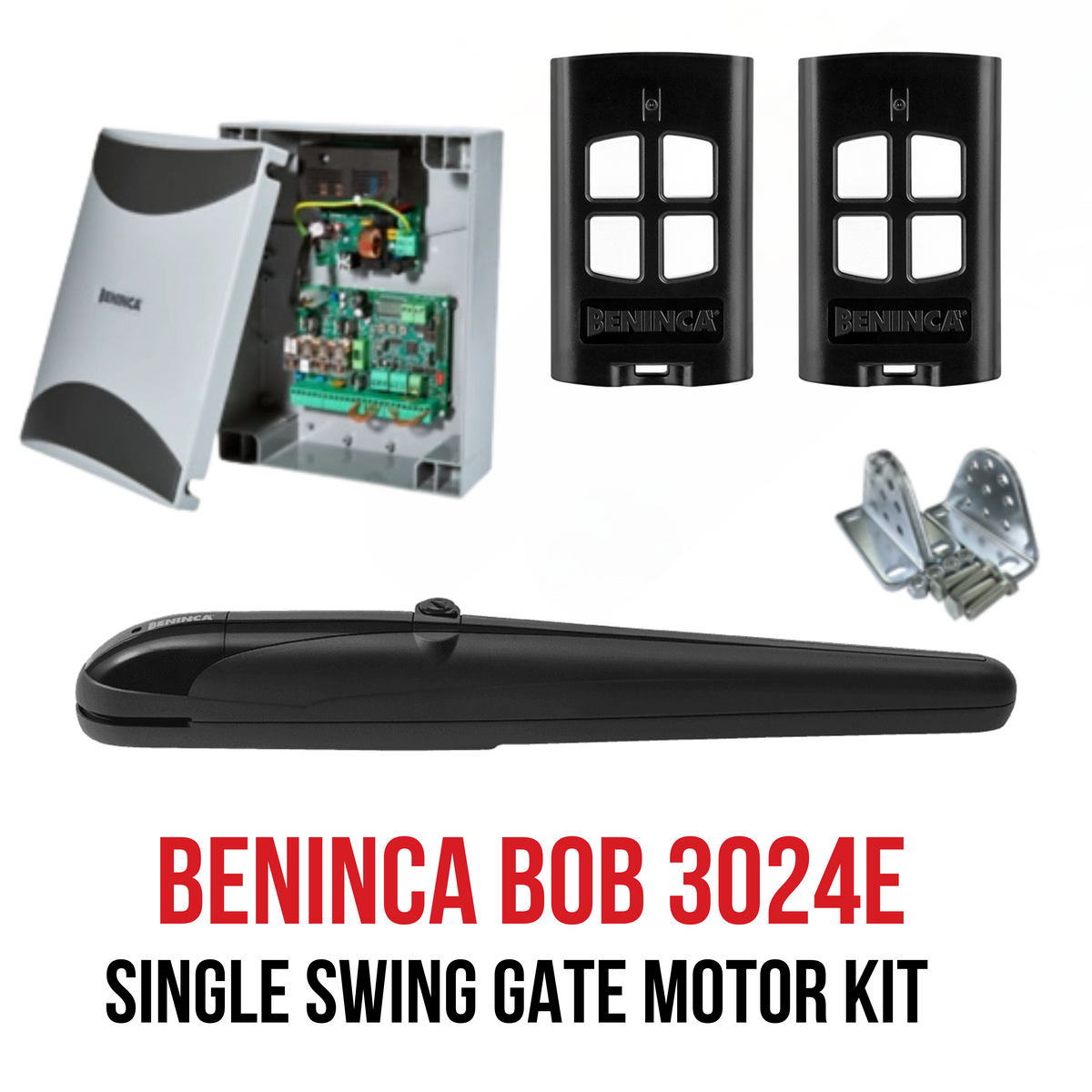

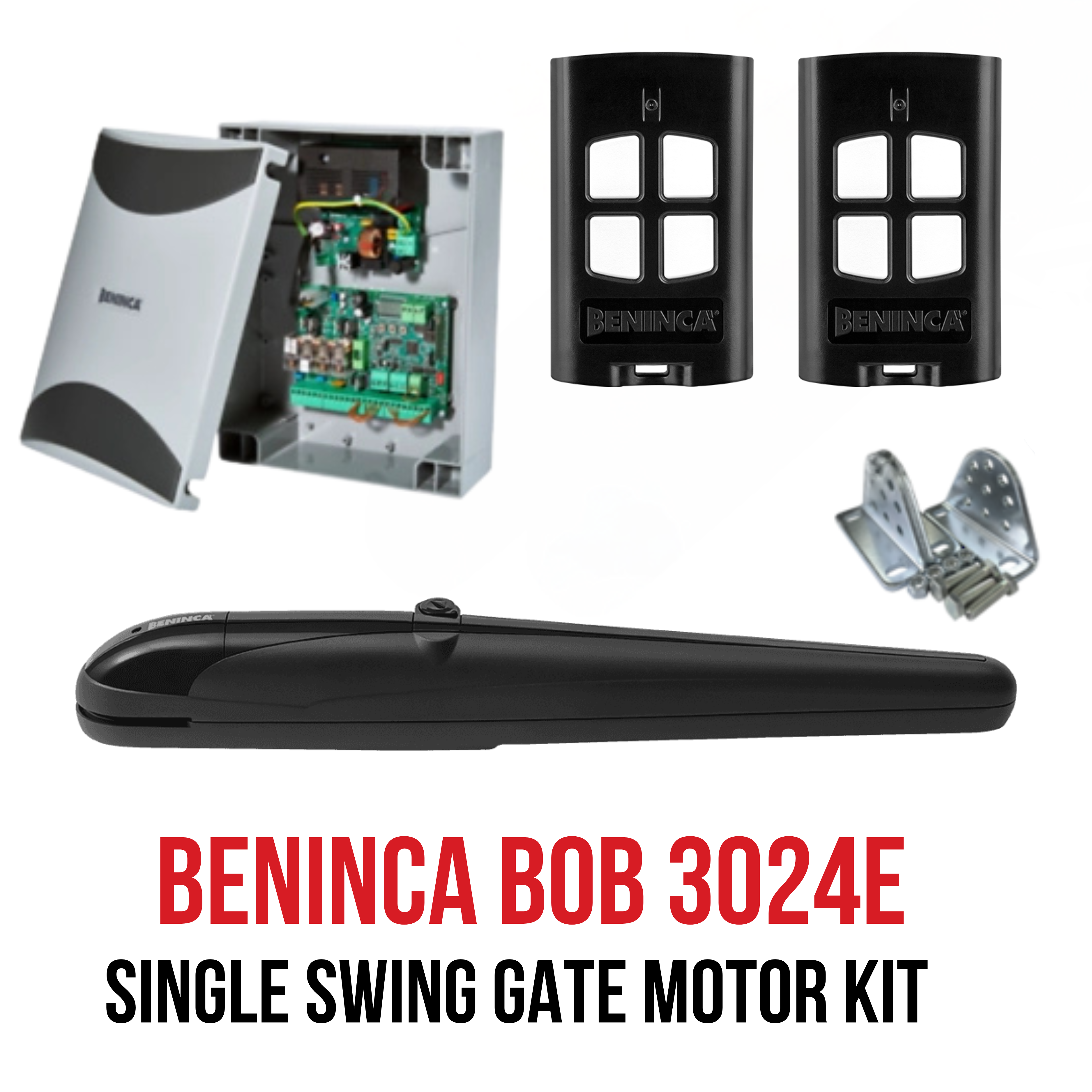

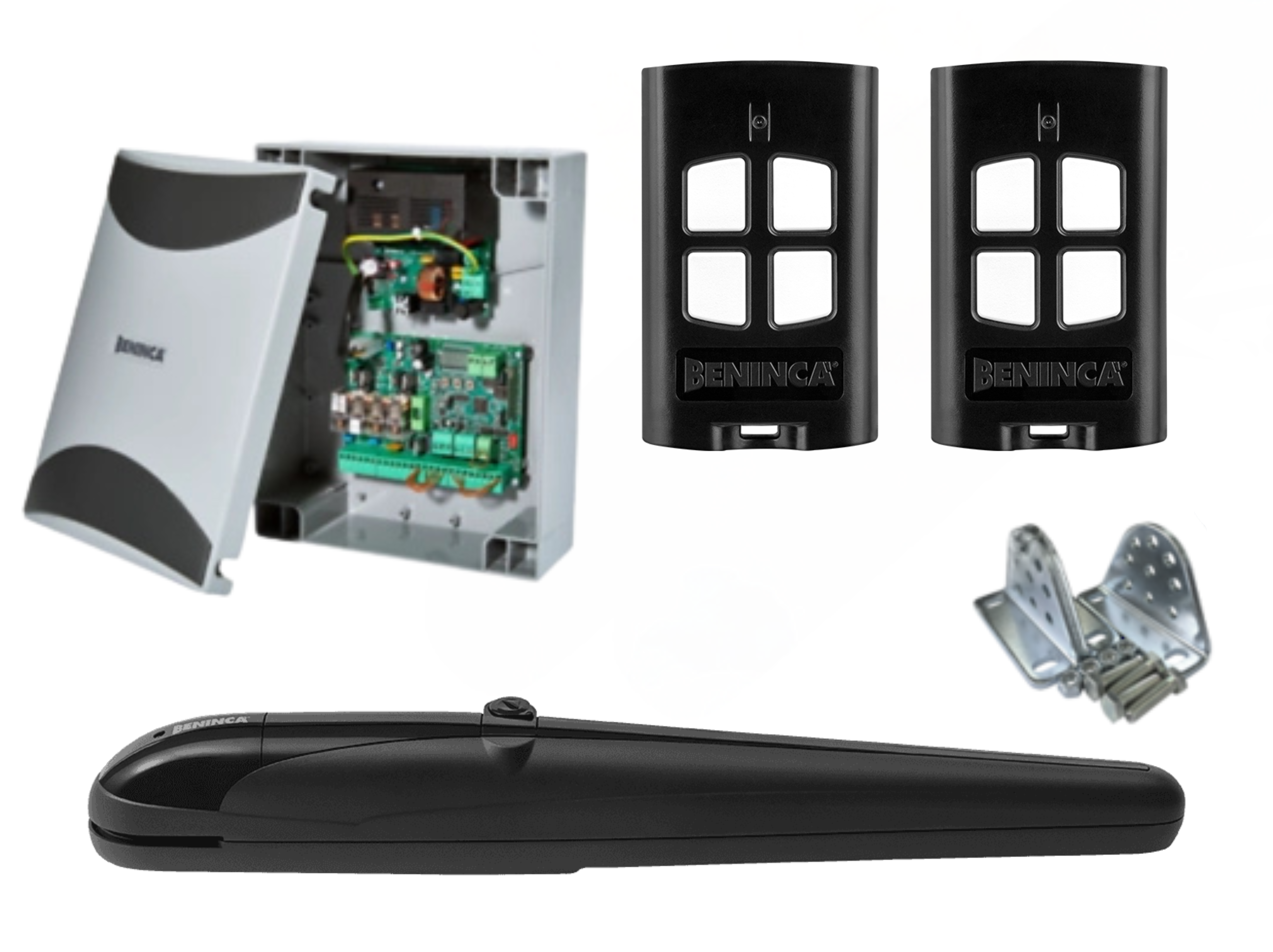

BENINCA BOB 3024E Single Swing Gate Motor Kit

The Benincà BOB3024E.DK Single Kit is a complete solution for automating single-leaf swing gates up to 3 m in length. It features the powerful BOB3024E.DK motor, built with a rolled Ø 20 mm ball-screw for smooth performance and a robust cast-aluminium body for durability. The encoder ensures precise positioning, while the amperometric safety system stops and reverses the gate when an obstacle is detected.

The included TRUST24 control board provides intelligent operation, low-power standby mode, and flexible programming options. Adjustable slow-down at the end of travel ensures a smooth, controlled stop, and a manual release allows operation during power loss.

Specifications:

• Motor supply: 24 V DC
• Maximum gate leaf length: 3 m
• Maximum thrust: 1,500 N
• Standard stroke: 270 mm (extendable to 325 mm)
• Opening time: ~12 s to 90°
• Duty cycle: Intensive use
• Protection rating: IP44
• Operating temperature: –20 °C to +50 °C
• Motor weight: 6.7 kg

Package Contains:

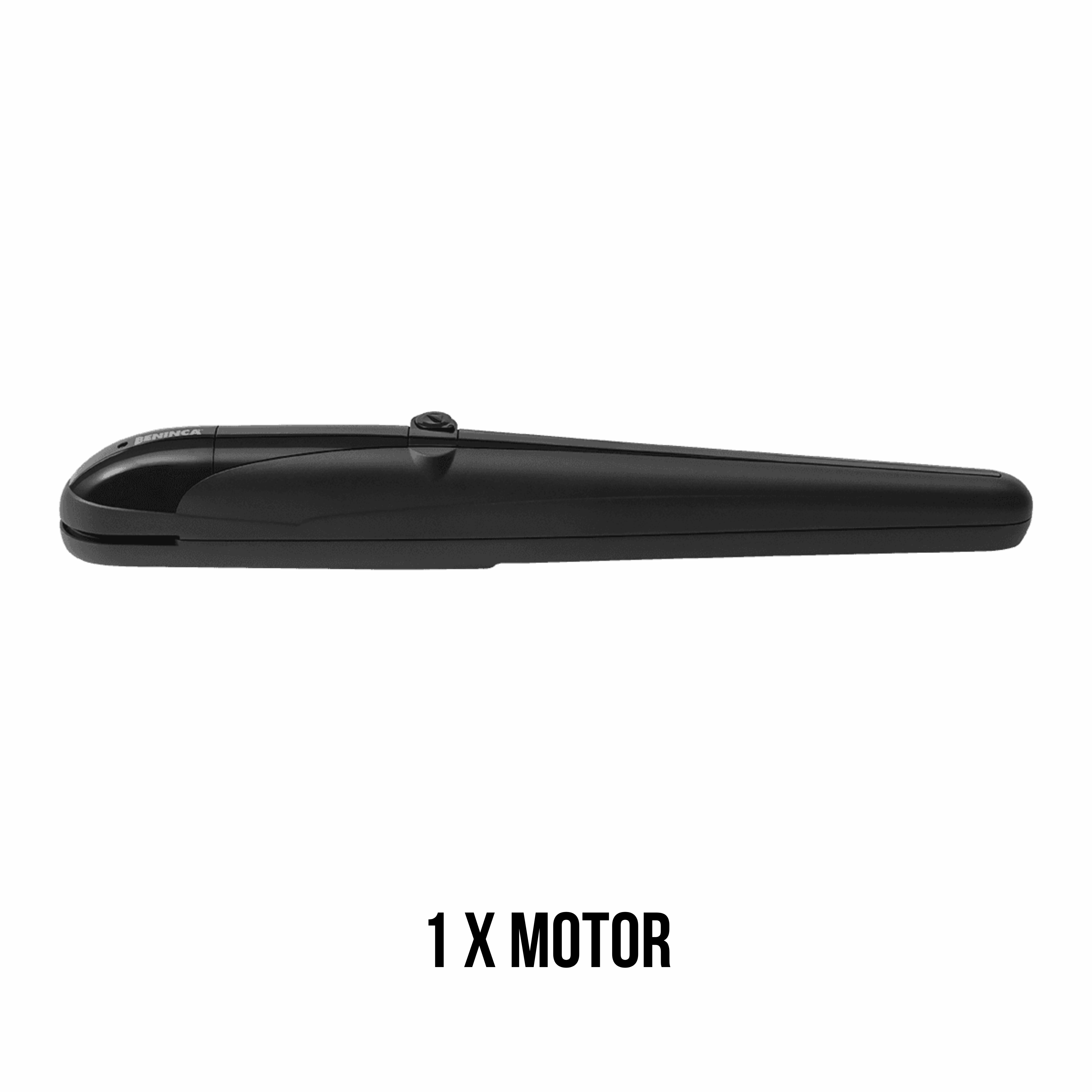

• 1 × BOB3024E.DK motor with encoder and manual release
• 1 × TRUST24 control board with integrated radio receiver and battery charger

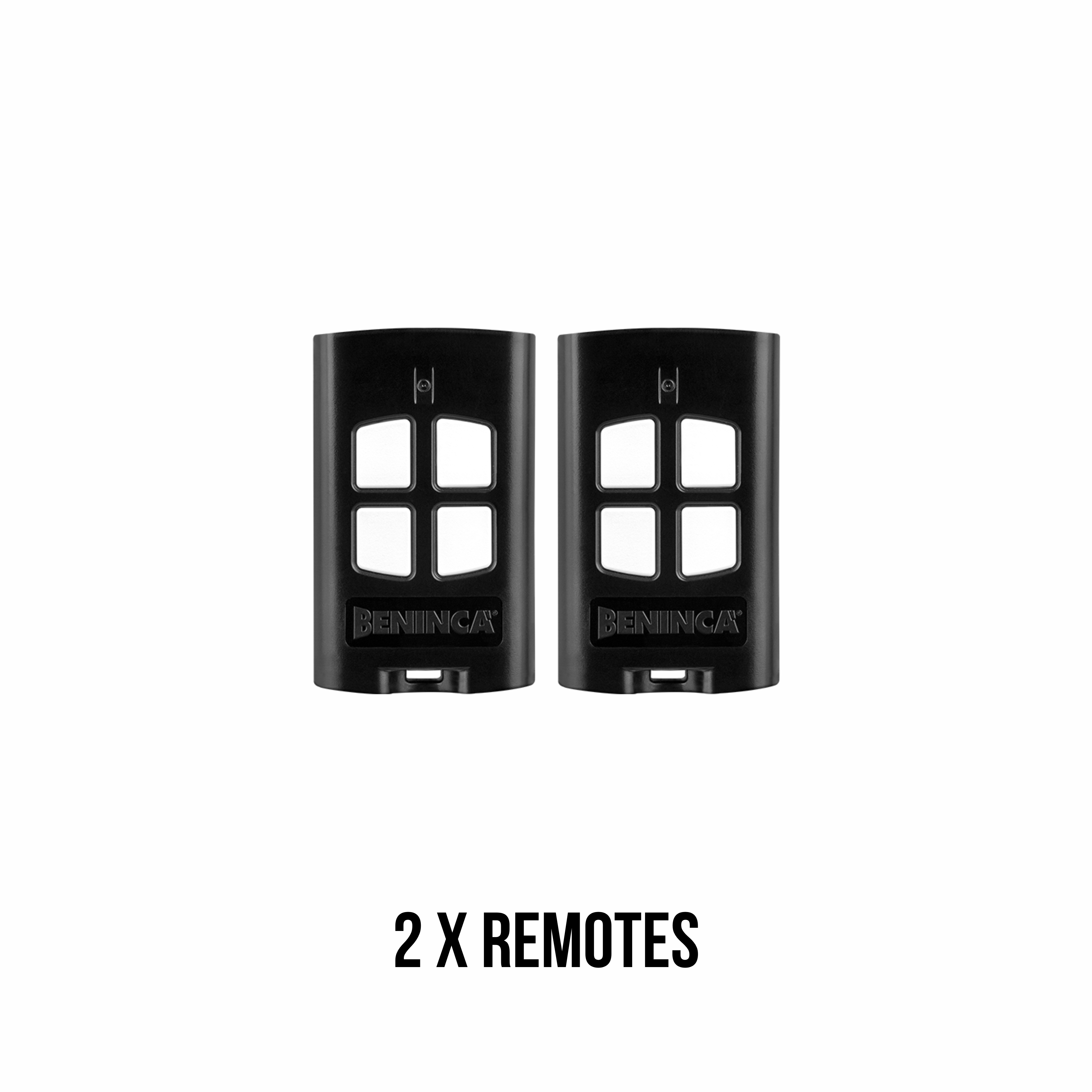

• 2 × TO.GO4A 4-channel remote controls

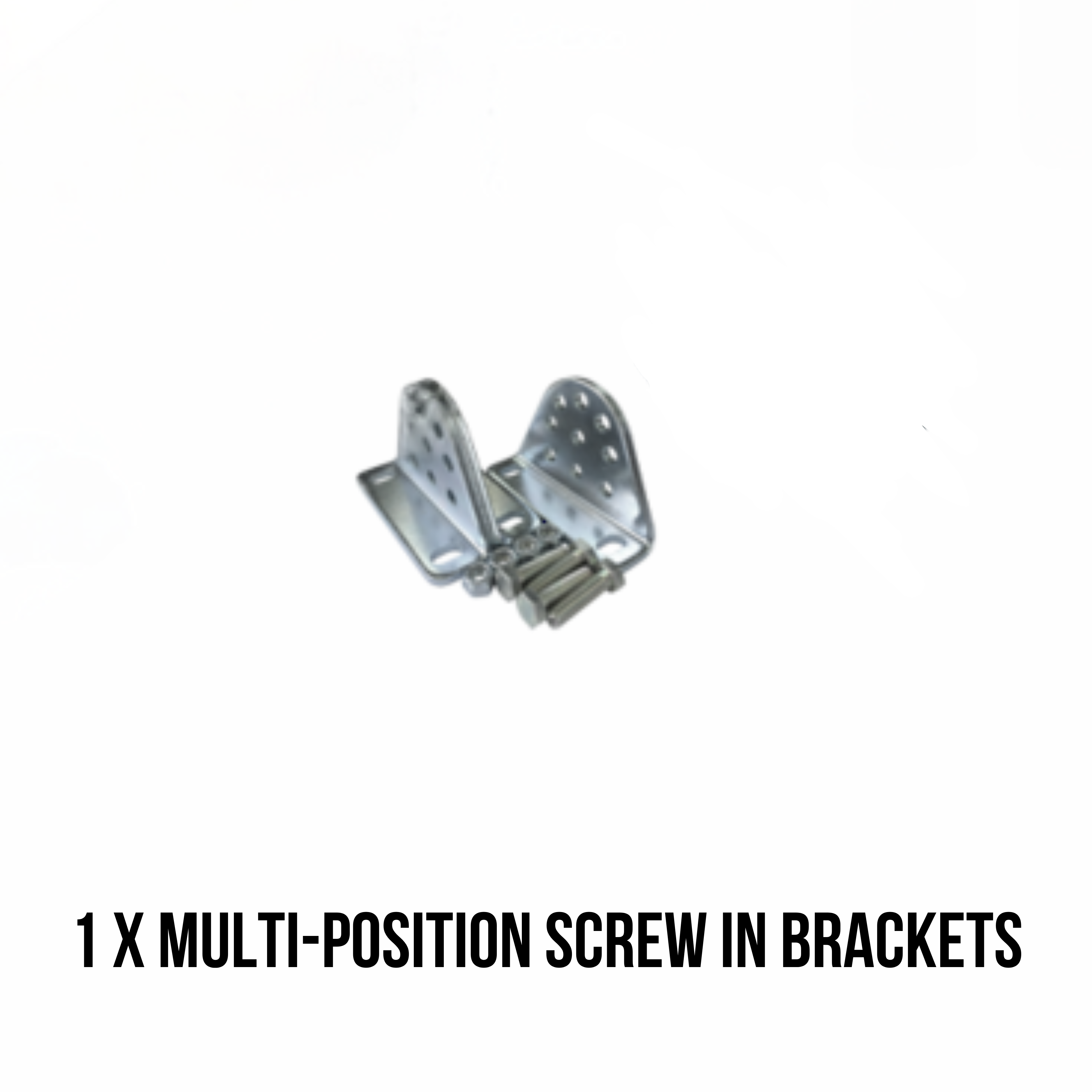

• 1 × B.SR multi-position screw-in bracket
