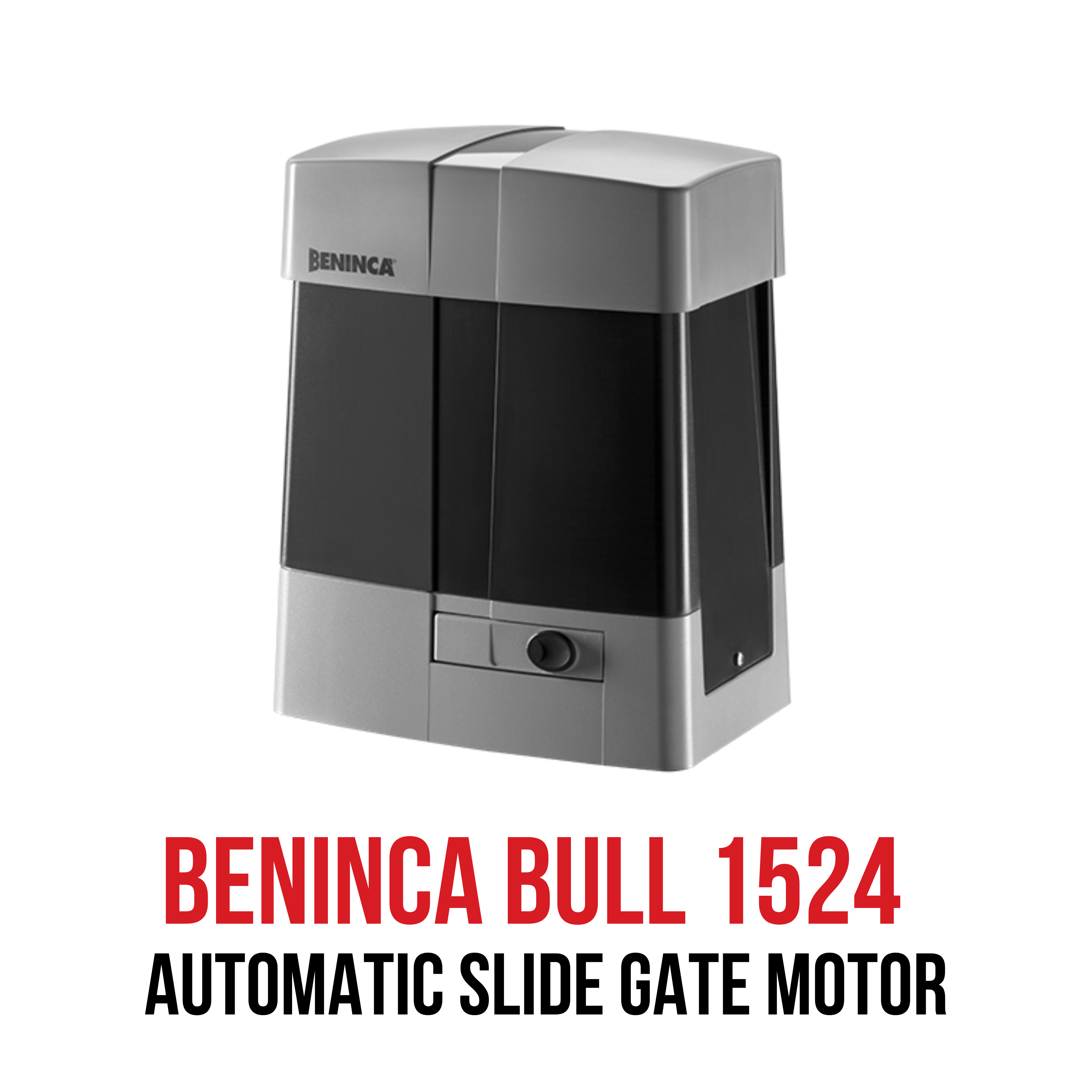

BENINCA BULL 1524SE

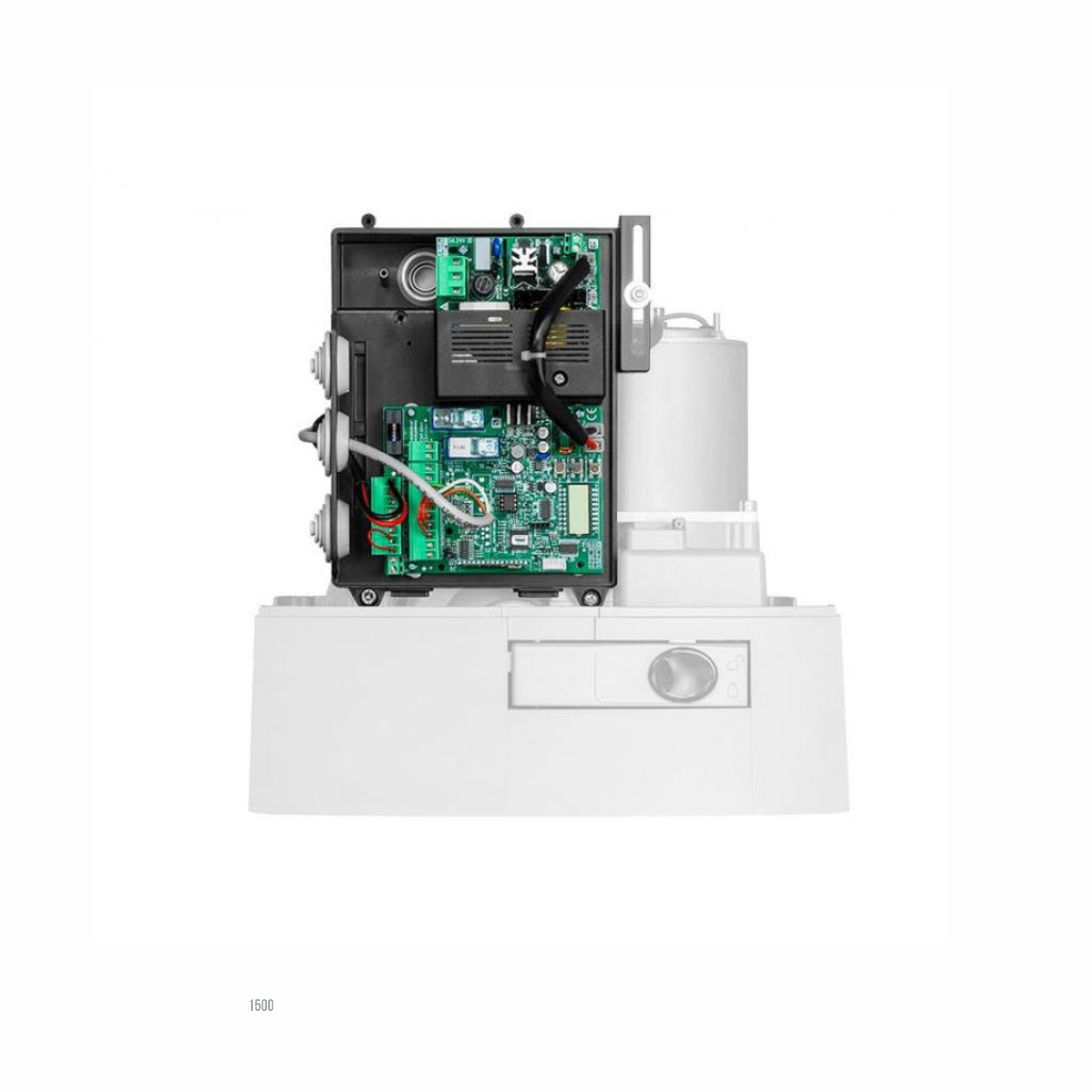

24 Vdc gear motor for intensive use with integrated control unit and virtual encoder | Switching power supply 115/230 Vac reduces energy consumption and enhances actuator lifespan | Top-mounted control unit simplifies wiring | Virtual encoder with STC system ensures optimal slowing phases, accurate movement tracking, and adaptive torque based on gate position for maximum safety | Battery backup ready to guarantee operation during power outages | Anti-crushing safety with amperometric obstacle detection | Smart home integration-ready via X.BE (KNX) and Q.BE (MQTT) accessories, programmable via BeUP app with PRO.UP interface | Optional steel anti-vandal cover for added security | Foundation plate with anchor bolts included (€motor-floor fixing: 269 × 106 mm, Ø 12 mm pivots)

Features:

• Integrated LCD display
• Integrated 433.92 MHz radio receiver (ARC coding) with capacity for 2048 transmitters
• Removable terminal boards for clean, organized wiring
• Operation modes: Automatic, Semi-Automatic, Deadman logic
• Inputs: motor limit switches; photocell inputs (PHO – open/close, PHC – close only); N.C./8K2 edge sensor; OPEN input configurable as pedestrian access
• Multiple outputs: configurable for open-gate signal, courtesy/zone lighting, second radio channel, photocell testing, flashing light, alarm contact
• SIS ready—for synchronous operation of dual gates
• KNX and app integration via X.BE and PRO.UP accessories respectively
• Autoset logic for self-optimization of operating parameters
• STC System: electronic torque adjustment at each stroke point
• Separate settings for opening and closing speeds
• Anti-crushing amperometric safety
• Virtual encoder, adjustable slowdown phases, built-in ESA+ energy-saving system
• Advantouch transmitter programming, with password-protected menu, maintenance alerts, maneuver counters, and firmware diagnostics

Package Contains:

• 1 × BENINCÀ BULL1524SE Motor
• Foundation plate with anchor bolts (motor‑to‑floor fixing: 269 × 106 mm, 4 × Ø 12 mm)

Specifications:

• Max gate weight: Up to 1500 kg
• Power supply: 115/230 Vac (50/60 Hz)
• Motor supply: 24 Vdc
• Max absorbed current: 3.7 / 2 A
• Max thrust: 916 N
• Opening speed: 5.5 – 11.7 m/min
• Duty cycle: Intensive use
• Protection rating: IP44
• Pinion for rack: M4 Z18
• Operating temperature: -20 °C to +50 °C
• Lubrication: Grease
• Weight: ~16.1 kg
