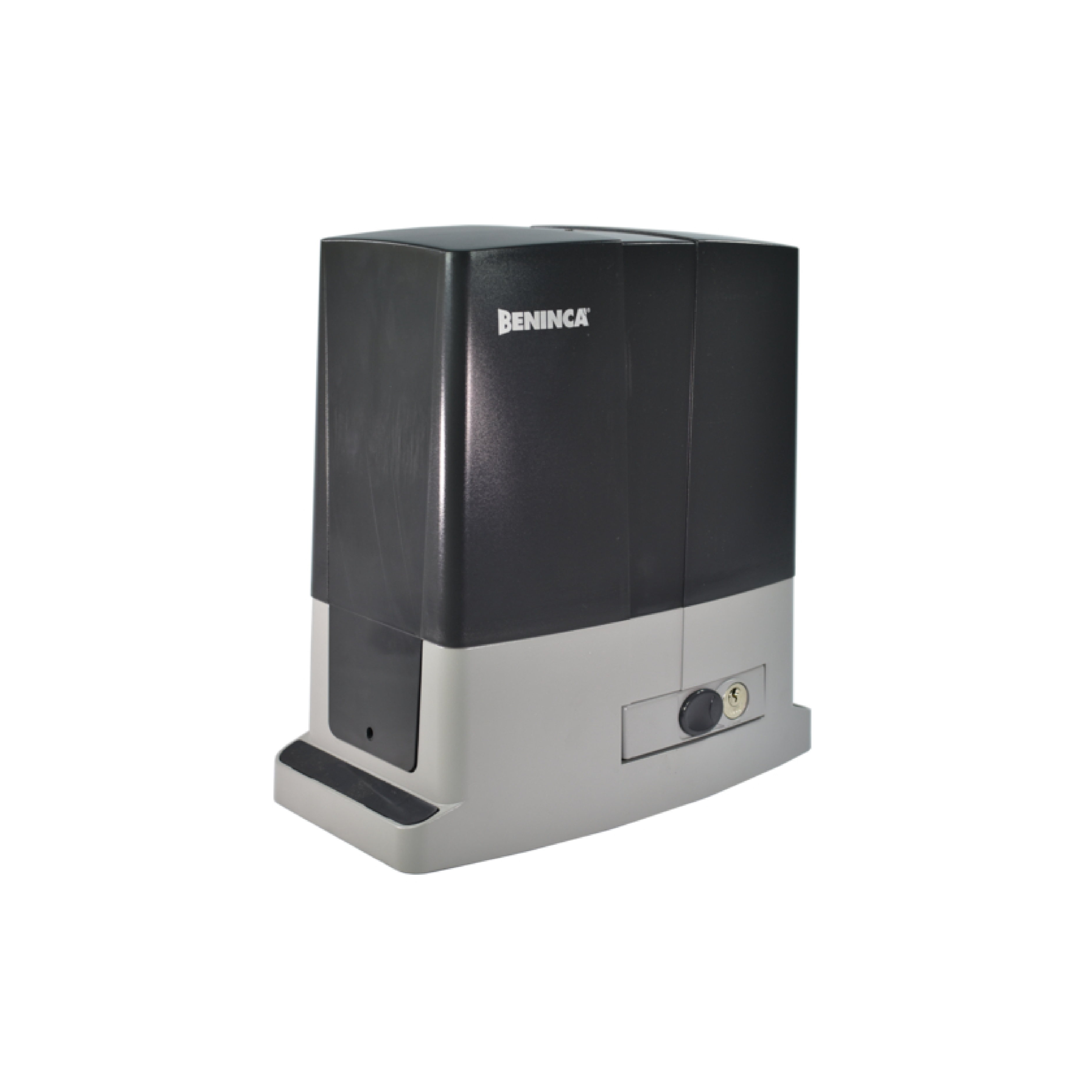

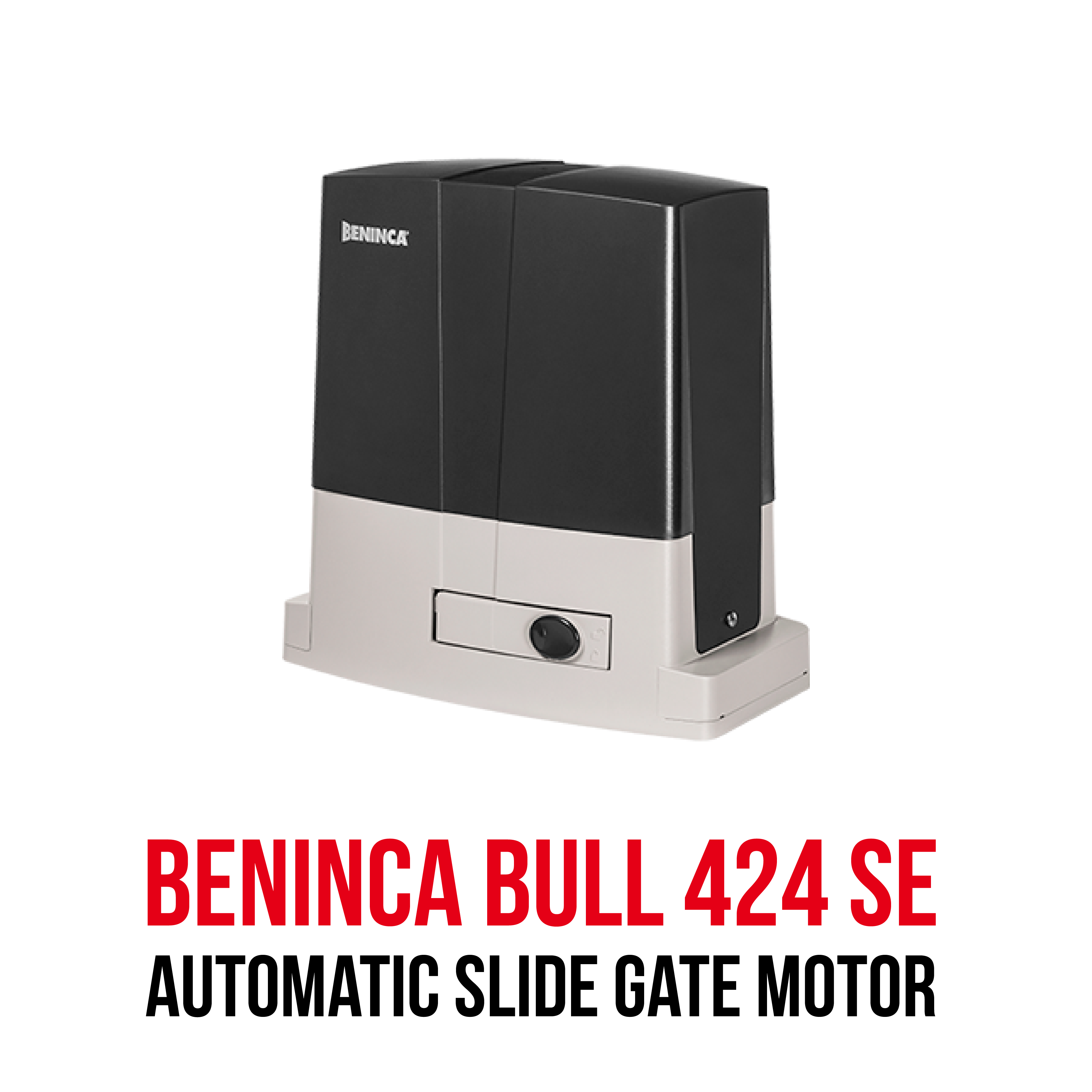

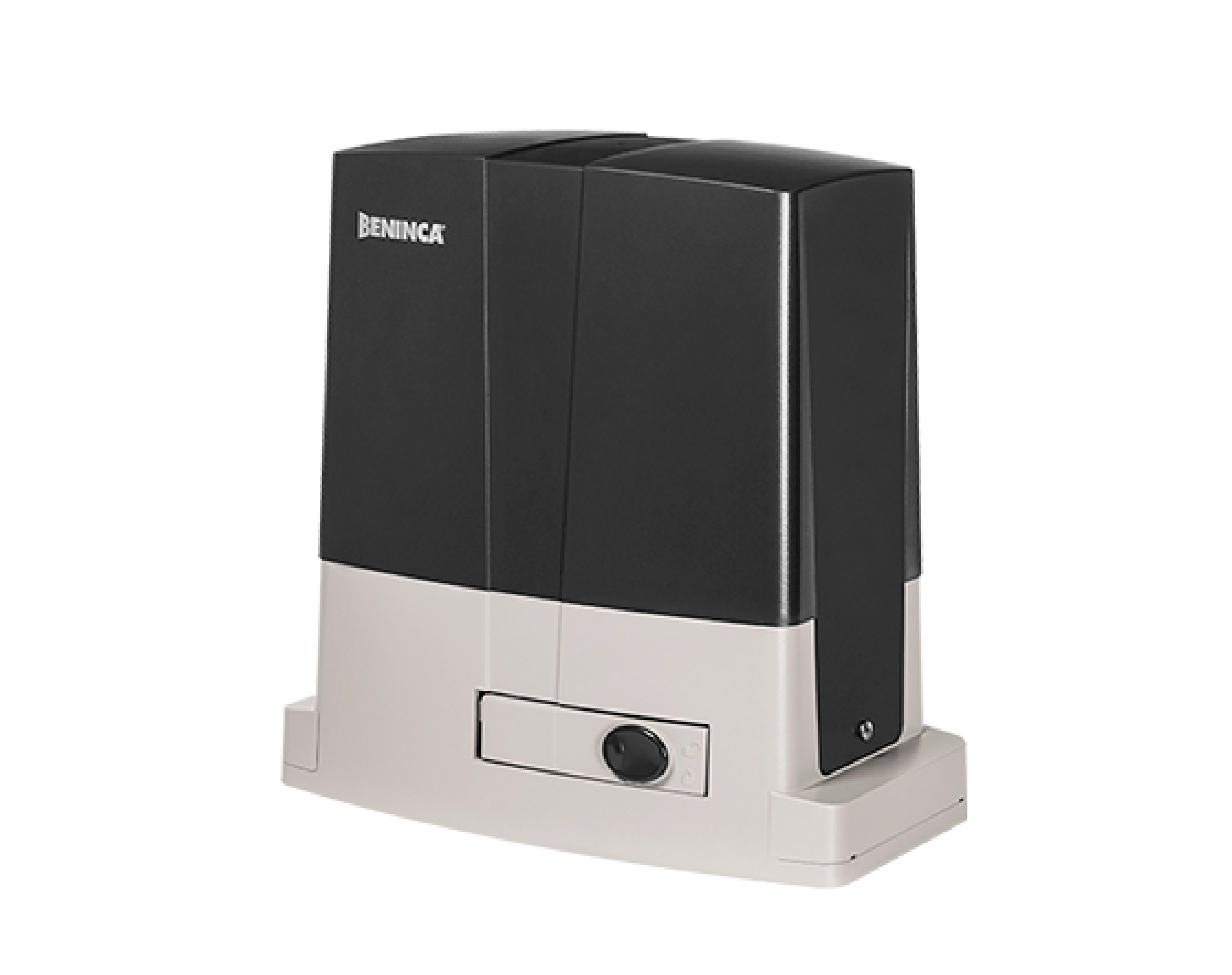

BENINCA BULL 424SE

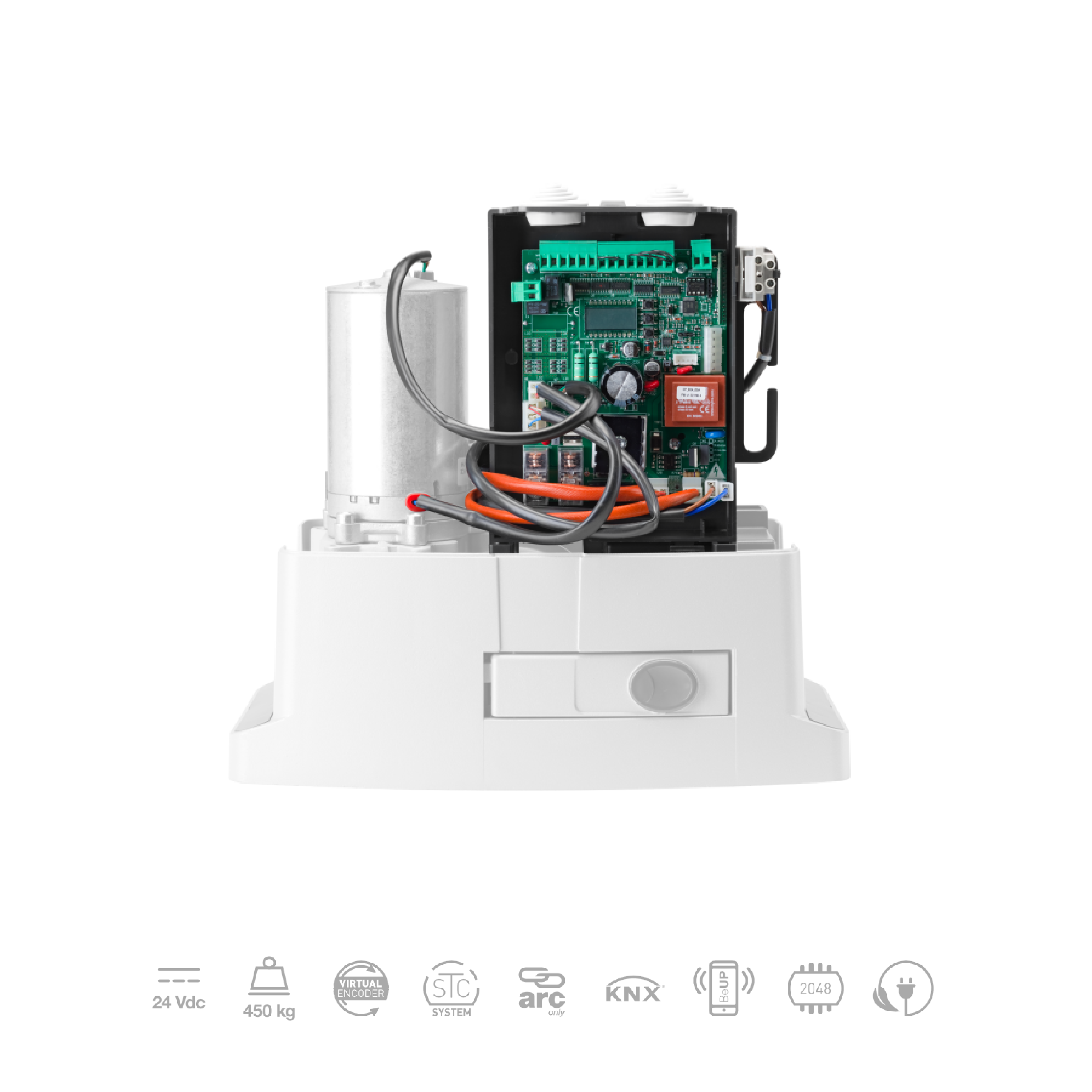

24 Vdc gear motor for intensive use with integrated control unit and virtual encoder | Switching power supply 115/230 Vac which reduces energy consumption and ensures a long lifespan of the actuator | The main control unit, on the top part of the motor, makes it possible to facilitate the wiring procedure | The virtual encoder enables optimal management of slowing-down phases, movement tracking (STC system) and torque management in relation to the position of the gate, guaranteeing maximum safety | Operation guaranteed even in the event of a power supply failure through batteries that can be perfectly integrated in the motor | Anti-crushing system with amperometric obstacle detection | Designed for the connection of the X.BE accessory in order to be integrated with KNX domotics installations and the programming through the app BeUP and the interface PRO.UP

Features:

• Integrated LCD display
• Integrated radio receiver 433.92 MHz 2048 codes with ARC coding
• Removable terminal boards
• Automatic, semi-automatic and Deadman logic
• Motor limit switch inputs
• Photocell input (PHO) active in opening and closing
• Photocell input (PHC) active only in closing phase
• OPEN input configurable as pedestrian
• Autoset of operating parameters
• Electronic torque adjustment with automatic calculation for each point in the stroke
  (STC SYSTEM)

Kit Contains:

• 1 x BENINCA BULL424SE Mortor
• Maximum gate weight : Up to 450 kg
• Power supply : 115/230 Vac (50-60Hz)
• Motor supply : 24 Vdc
• Protection level : IP44
• Operating Temperature : -20°C /+50°C
• Lubrication : Grease
• Weight : 8kg
• Opening speed : 5.5 ÷ 12 m/min
• Virtual encoder : Yes
• Encoder : No
• Integrated receiver : Yes
• Built-in control unit : Yes
• Duty cycle : Intensive
• Protection rating : IP44
• Pinion for rack :M4 Z14
