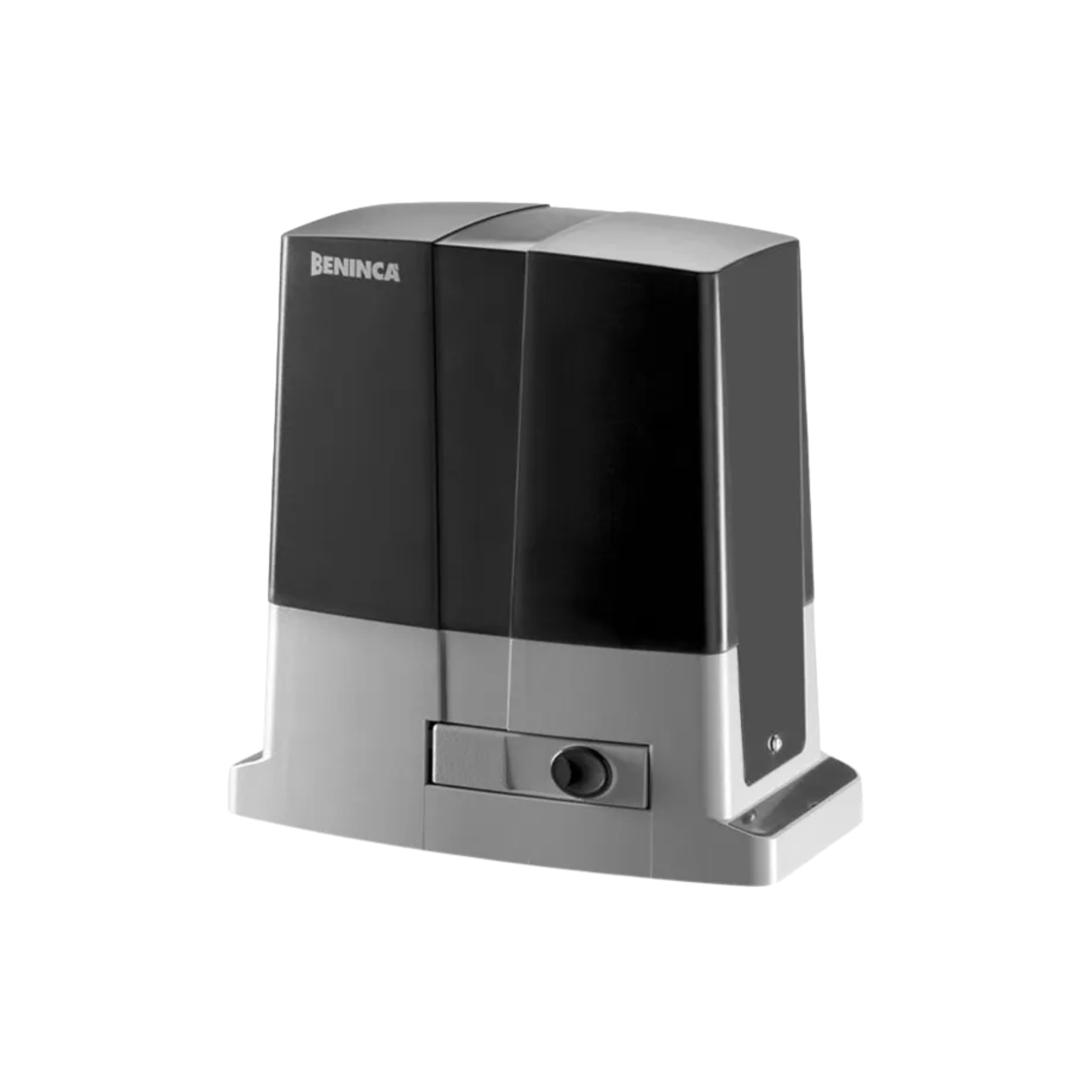

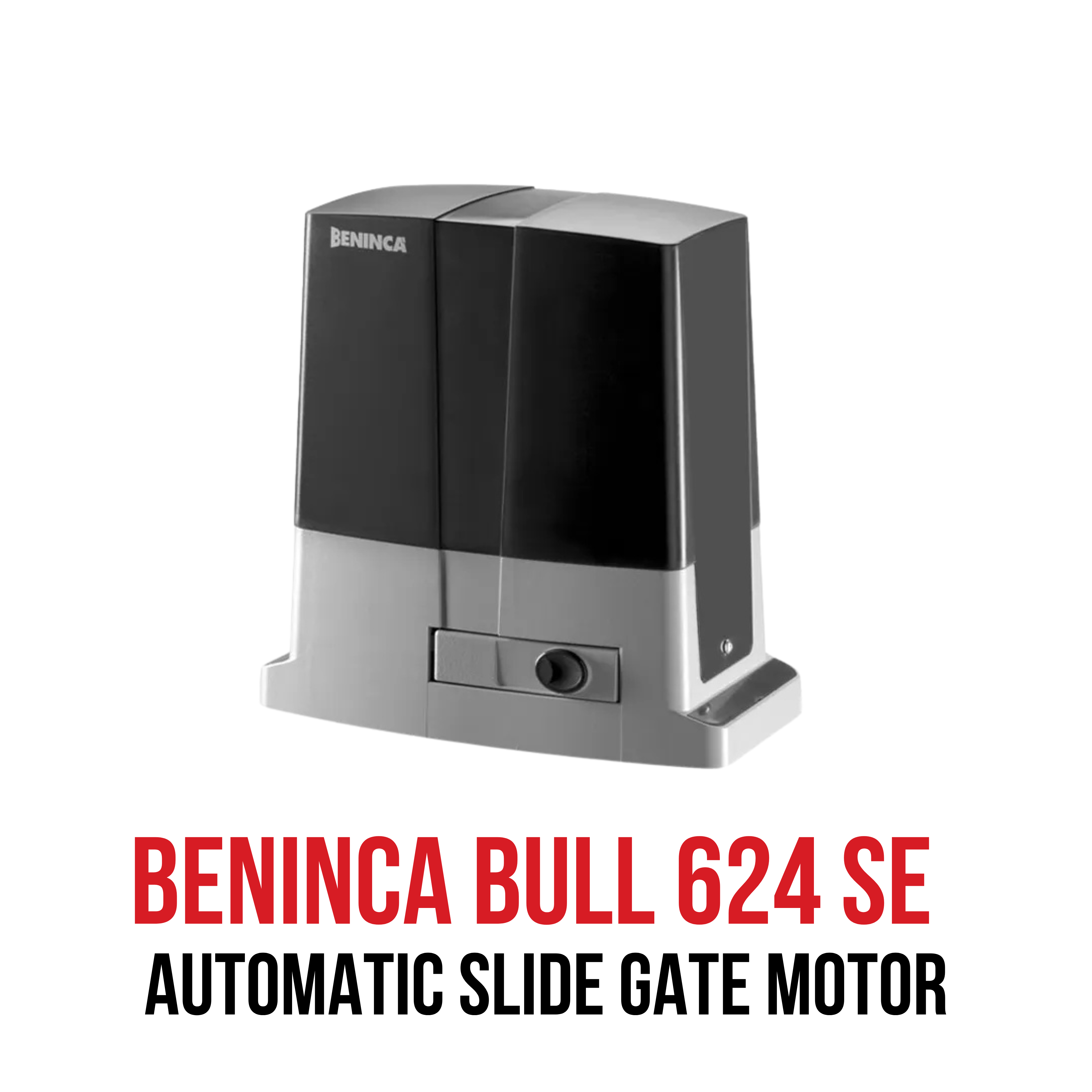

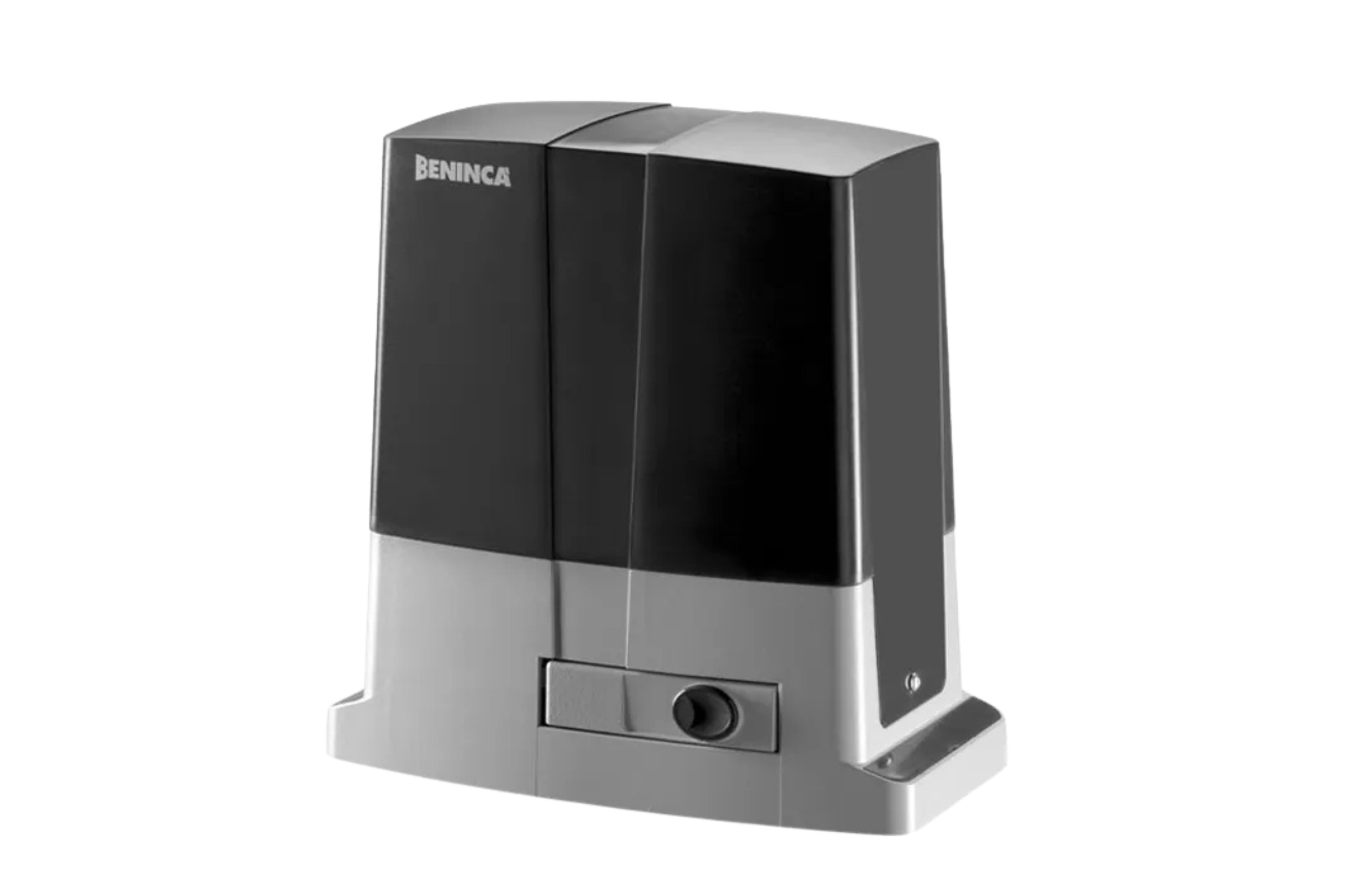

BENINCA BULL 624SE

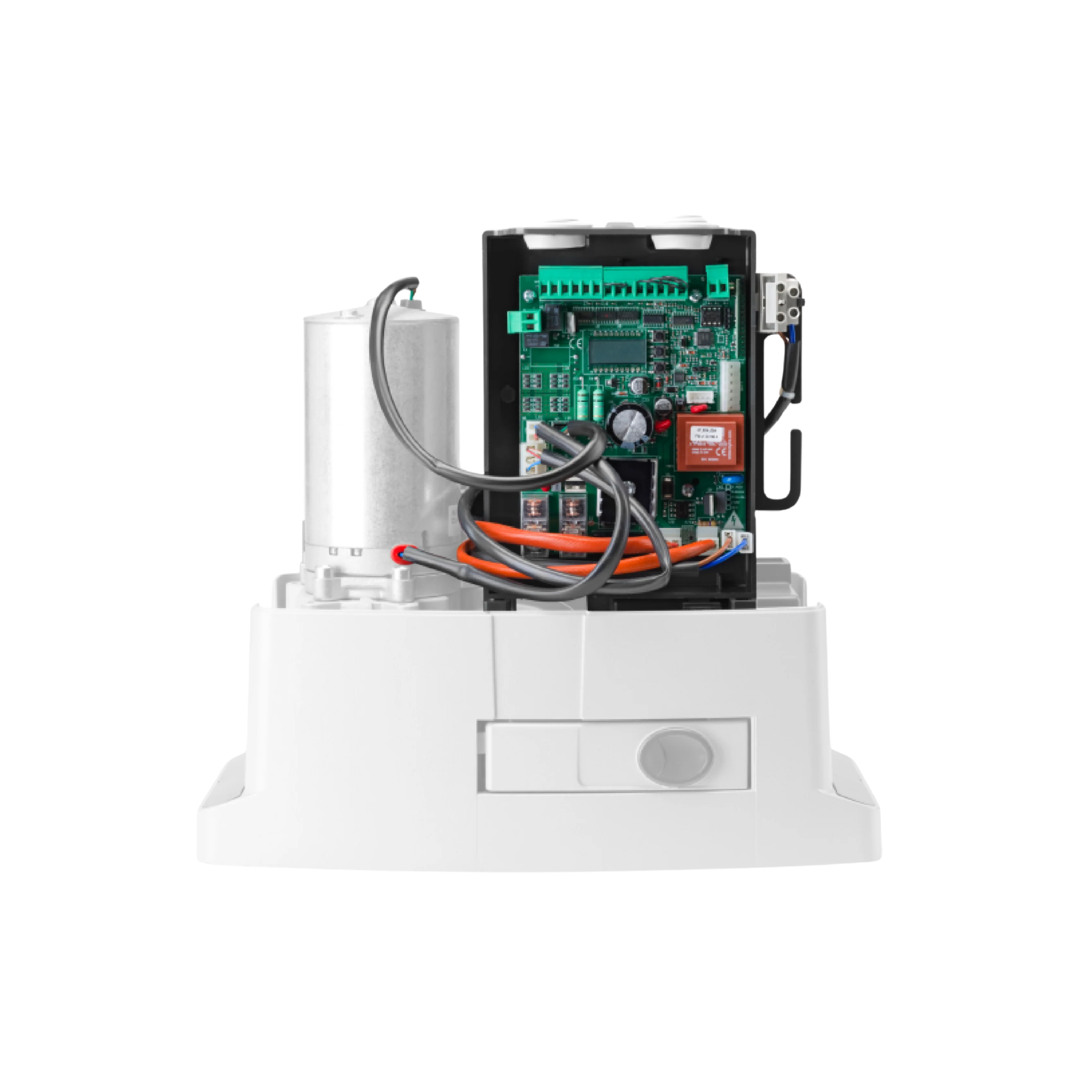

24 Vdc gear motor for intensive use with integrated control unit and virtual encoder | Switching power supply 115/230 Vac which reduces energy consumption and ensures a long lifespan of the actuator | The main control unit, positioned on the top of the motor, makes wiring and programming quick and easy | The virtual encoder enables precise slowing phases, movement tracking (STC system), and torque adjustment relative to gate position for maximum safety | Operation is guaranteed during power failures via perfectly integrated backup batteries | Anti-crushing safety with amperometric obstacle detection | Ready for smart home integration with X.BE accessory for KNX compatibility and programming via BeUP app and PRO.UP interface

Features:

• Integrated LCD display

• Integrated radio receiver 433.92 MHz (ARC coding) with memory for up to 2,048 transmitters

• Removable terminal boards

• Automatic, semi-automatic and Deadman operation logic

• Motor limit switch inputs
• Photocell input (PHO) active in opening and closing
• Photocell input (PHC) active only in closing phase
• OPEN input configurable as pedestrian access
• Automatic setup of operating parameters

• Electronic torque adjustment with automatic calculation for each point in the stroke
  (STC SYSTEM)

Kit Contains:

• 1 x BENINCA BULL624SE Mortor

Specifications:

• Maximum gate weight: Up to 600 kg
• Power supply: 115/230 Vac (50–60Hz)
• Motor supply: 24 Vdc
• Protection level: IP44
• Operating temperature: -20°C / +50°C
• Lubrication: Grease
• Weight: 15 kg
• Opening speed: 10.5 m/min
• Virtual encoder: Yes
• Encoder: No
• Integrated receiver: Yes
• Built-in control unit: Yes
• Duty cycle: Intensive use
• Pinion for rack: M4 Z14
