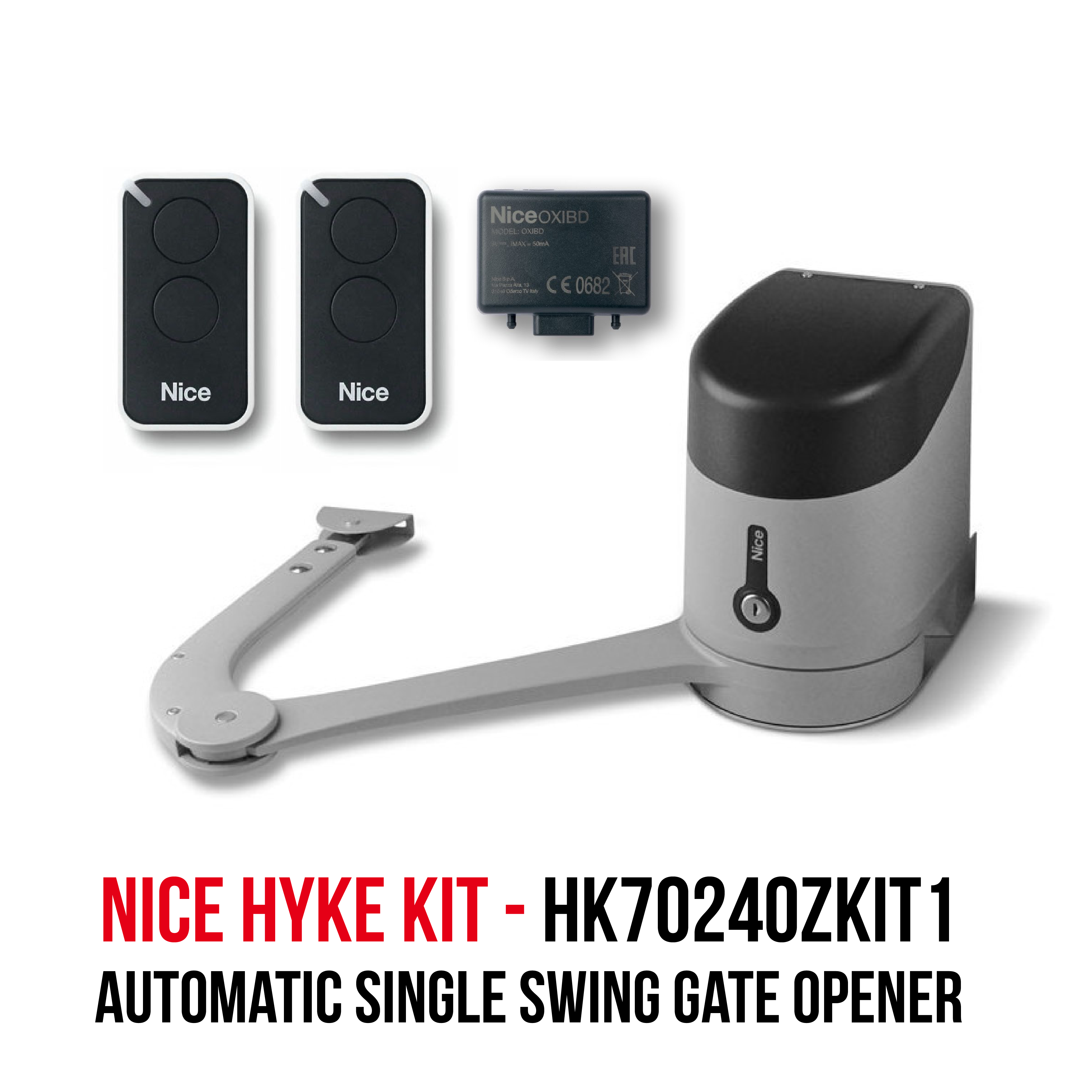

NICE Hyke (HK7024OZKIT1) Single Swing Gate Opener Kit

Nice Single Hyke Kit HK7024

For swing gates with leaves up to 3.5m, ideal for large columns. Irreversible electromagnetic 24 vdc gear motor with articulated arm, surface mounted. Ideal for intensive use

Features & Benefits :

• Reliable and durable: thanks to the housing in aluminium with polyester paint finish, resistant to atmospheric agents.
• Ultra-powerful and delicate: thanks to the torque of 500Nm and encoder technology, for milimetric precision and reliability. Safety in movement with dual technology obstacle detection.
• Irreversible 24Vdc with limit switches on opening and closing with built-in control unit
• Practical and quick installation: the articulated arm is adjustable in length for maximum flexibility
• Simple and precise limit switch adjustment: mechanical stops and micrometric adjustment screws.
• Easy to operate release lever, with metal lock and personalised Nice Key.
• Savings, respect for the environment, and autonomy: when connected to the buffer battery or Solemyo kit, consumption on standby is just 0.1W
• No black out: with the optional batteries (PS124) housed inside the gear motor.


Built-in control unit (HK7024):

• Simple programming via a single key
• Self-learning of opening and closing limit positions
• Automatic fault diagnostics
• Pause time programming
• Deceleration on opening and closing
• Obstacle detection with dual technology
• Provision for connection of latest generation sensitive edges.

Specifications:

• Power Supply: 230 Vac 50/60Hz
• Absorption: 1.5 A
• Power: 300 W
• Speed: 2.25 m/s
• Torque: 500 Nm
• Work cycles: 40 cycles/hour
• Protection Level: IP54
• Working Temp: -20°C to +50°C
• Dimensions: 252mm×180mm×290mm
• Weight: 10.5 kg
• Max Swing gate leaves: 3.5m

Kit Contains:

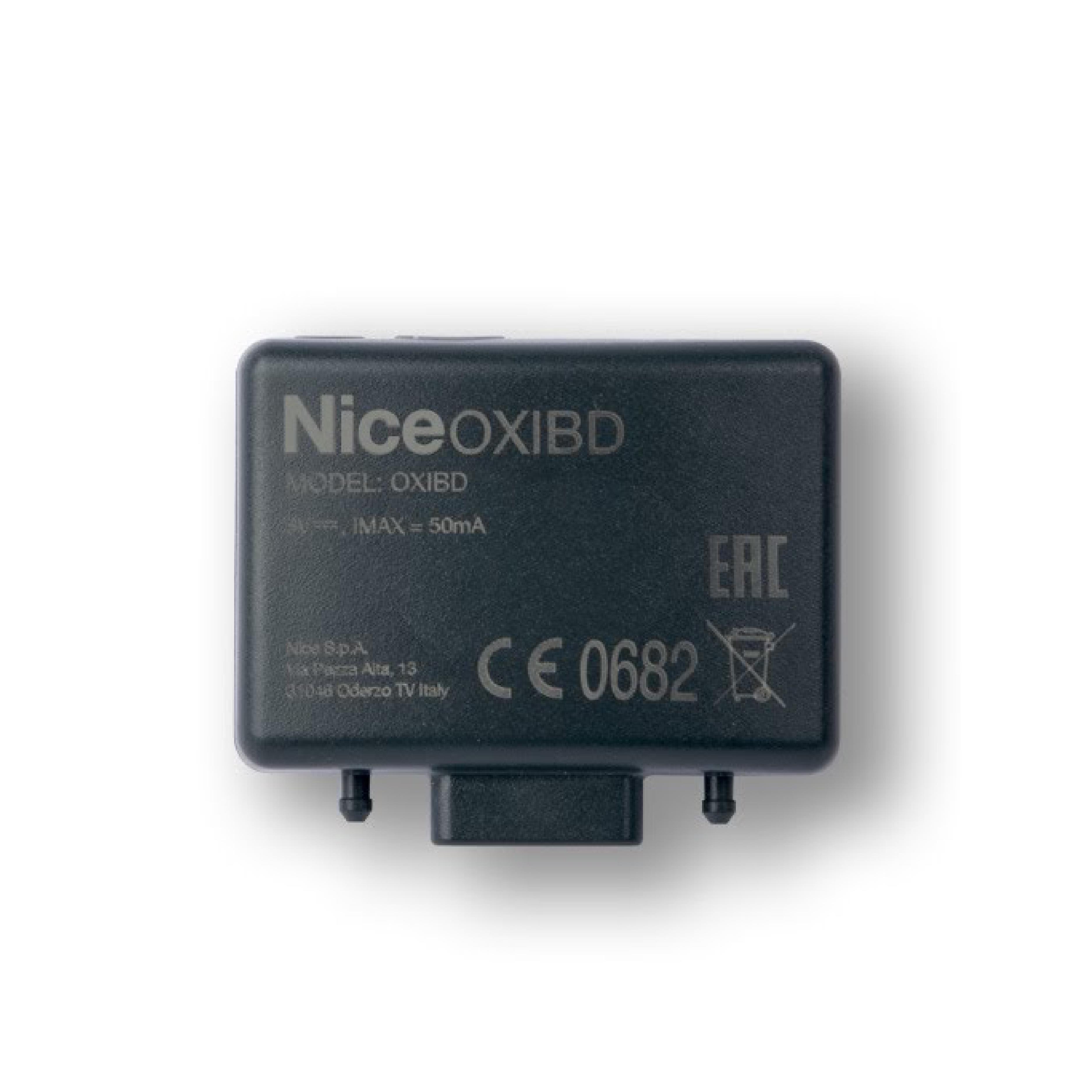

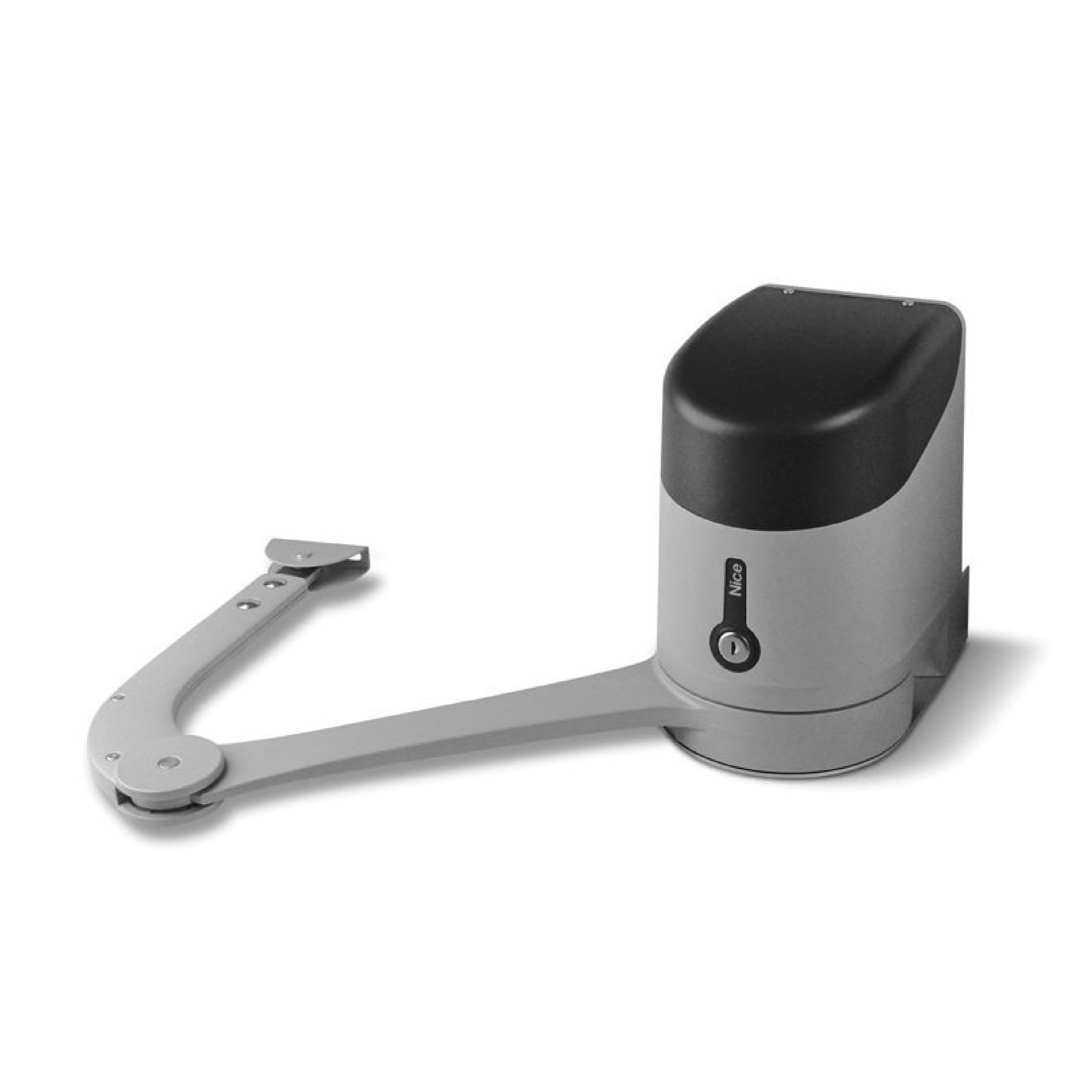

• HK7024 – 1x surface-mounted electromechanical gear motors with control unit and OXI plug-in receiver.

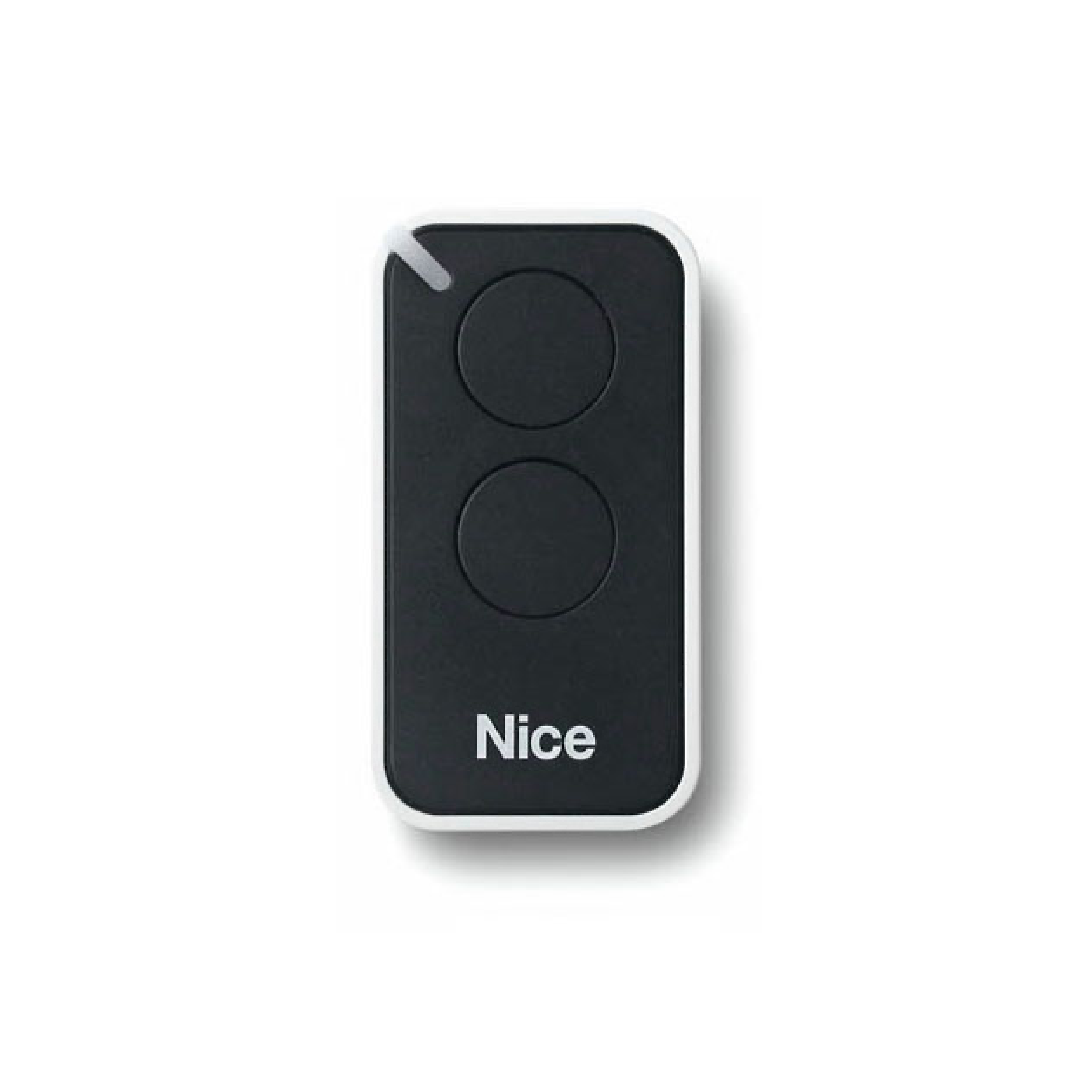

• INTI2 - 2x transmitter - 2 channel
