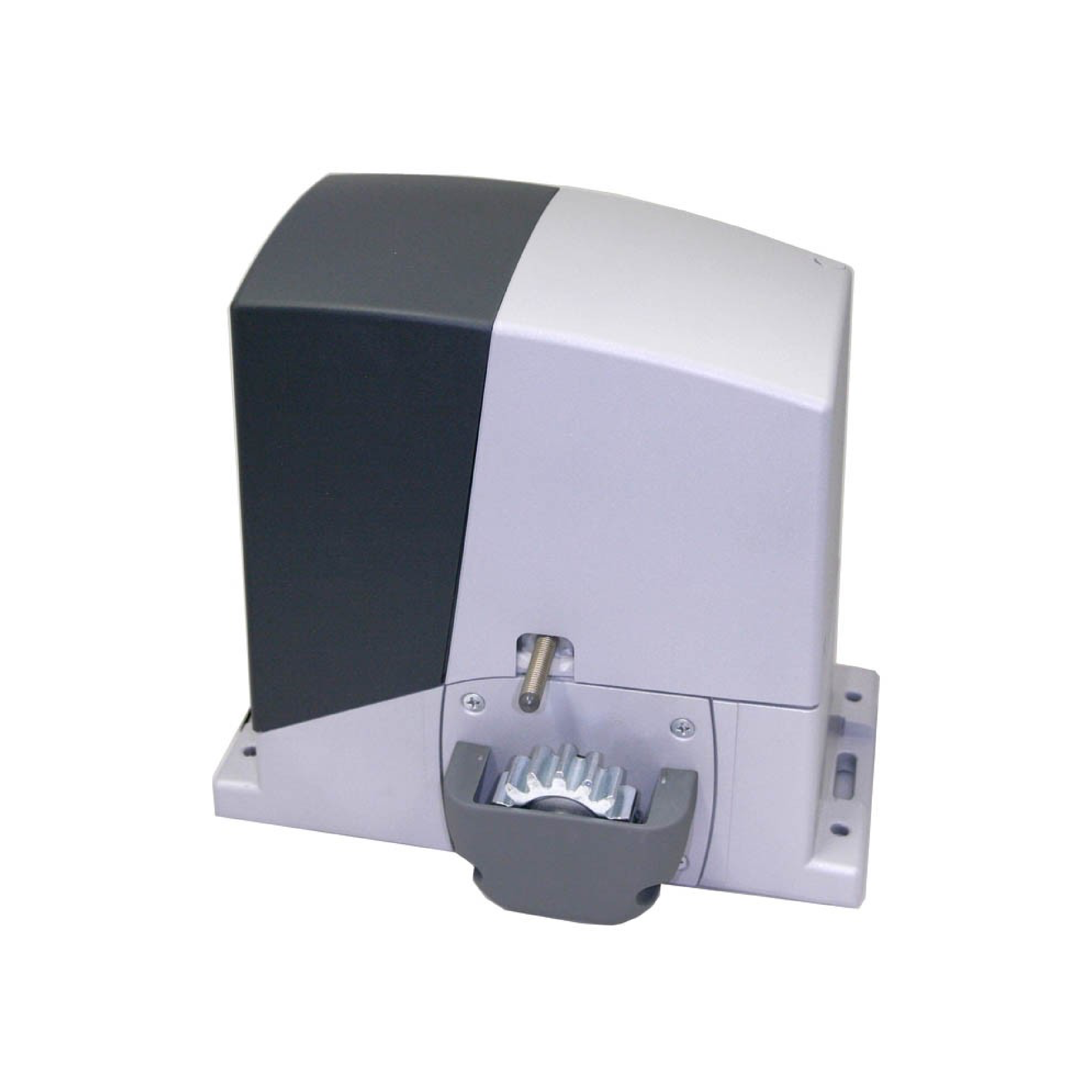

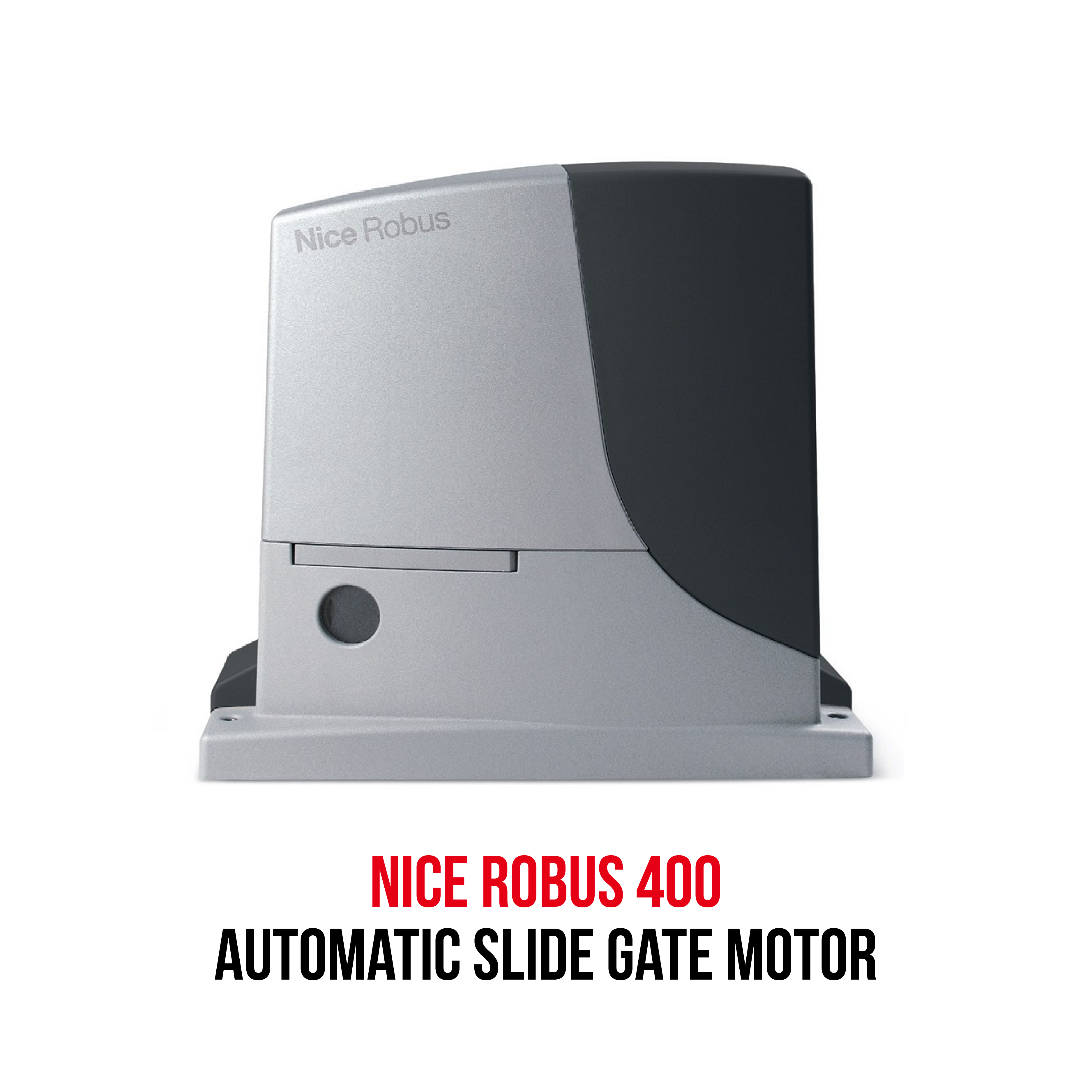

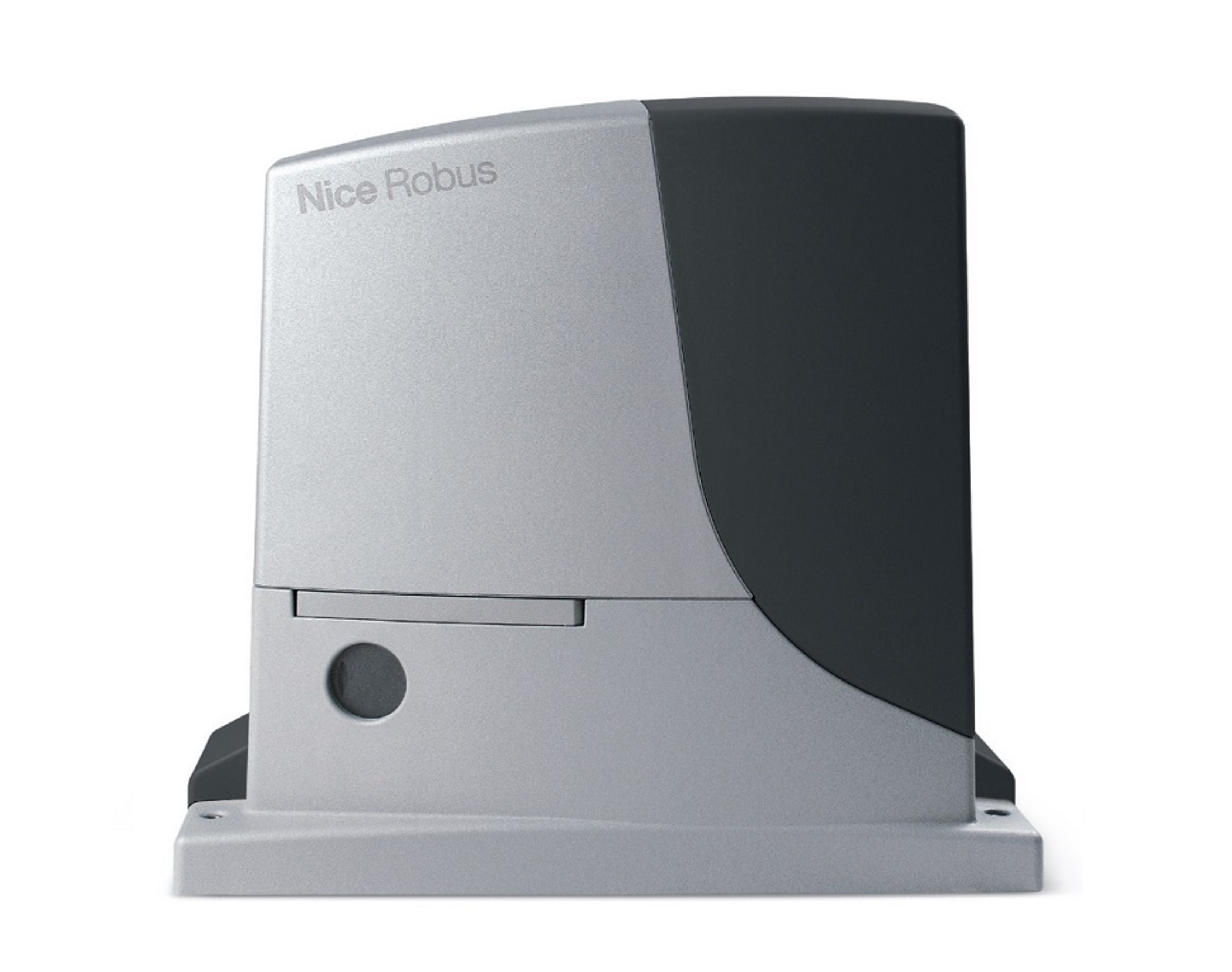

NICE ROBUS 400 Automatic Slide Gate Motor

NICE ROBUS 400 Sliding Gate Operator

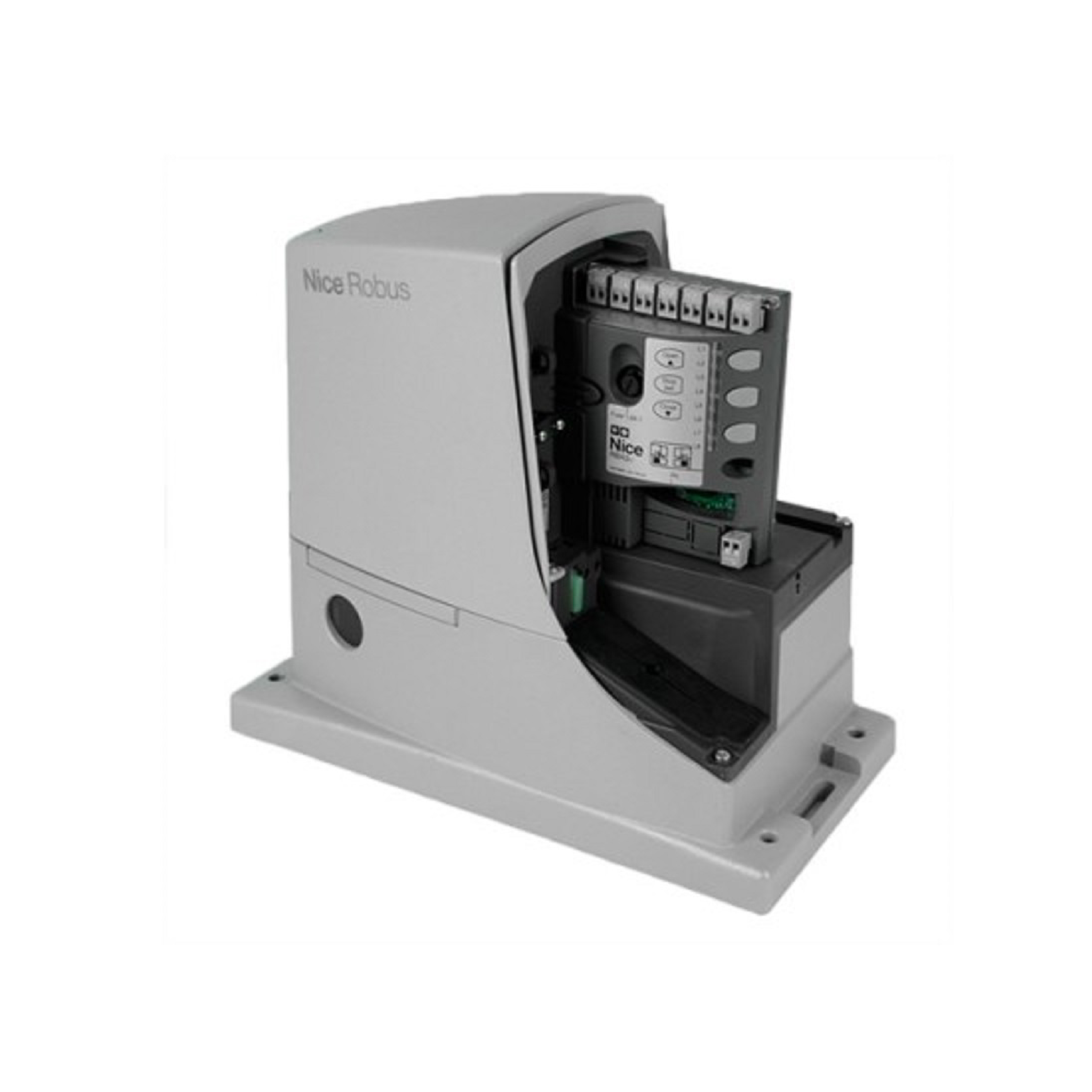

The ROBUS400 is a 24V DC sliding gate operator with built-in control unit and OXI plug-in receiver. For sliding gates weighing up to 400 kg (RB400).

Product Details

User-friendly:
thanks to the Blue BUS system, allowing the control unit to be connected to up to 7 pairs of photocells and control, security and signalling devices with just two wires.

Practical:
control unit and optional PS124 buffer batteries can be connected by means of practical guided – connector.

Advanced:
RB400, RB600 and RB1000 are equipped with a temperature sensor: adapt the motor power to the climatic conditions and at the same time thermal cutout. A master/slave selection automatically synchronises two motors. This means it is possible to automate 2-leaf sliding gates set opposite each other.

Intelligent:
thanks to the obstacle detection system and automatic programming of the working times. Self diagnosis by means of a flashing light. 8 programming levels.

Safe:
acceleration and deceleration can be adjusted at the beginning and at the end of each opening and closing manoeuvre.

Sturdy:
base and release in pressure die cast with easy to open handle.

Silent:
gear motor on bearings.

BASIC INFORMATION

Motor power supply: 24 V
Leaf maximum weight: 400 kg
Motor type: Electromechanical

Technical Specifications:

BASIC CONTROL BOARD FUNCTIONS

Second line of photocells: BlueBus
Pedestrian passage function: Yes
Amperometric sensor: Yes
Running time adjustment: No
Force adjustment: No
Pre-Flashing of the warning light: Yes
Automatic closing: Yes
Soft-stop/ Soft-start: Yes

ADVANTAGES:

• Obstacle detection system

• Add value to your property

• Make property more secure

• Silent (gear motor on bearings)

• Self-diagnosis (by means of a flashing light)

• Automatic programming of the working times

• Temperature sensor (adapt the motor power to the climatic conditions)
