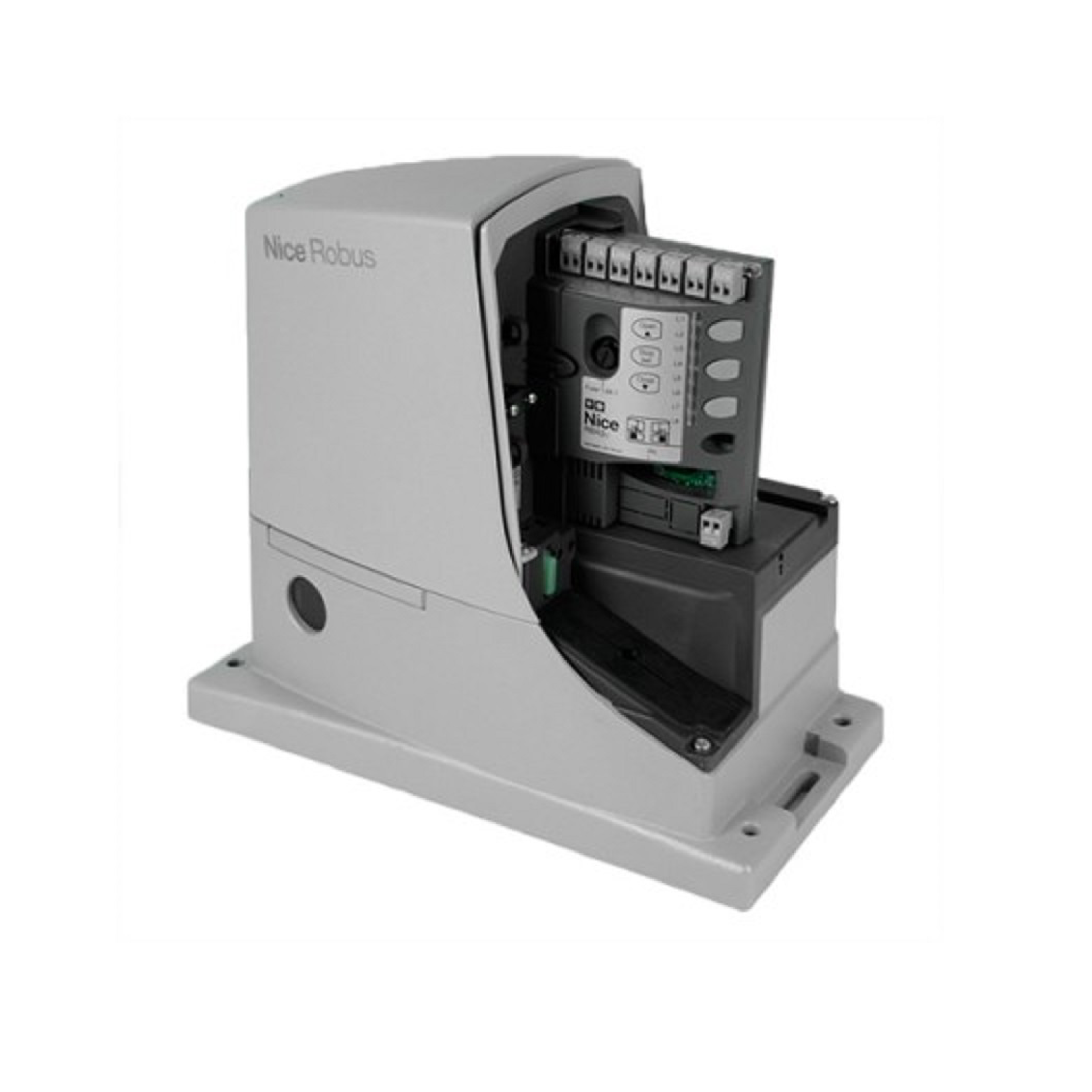

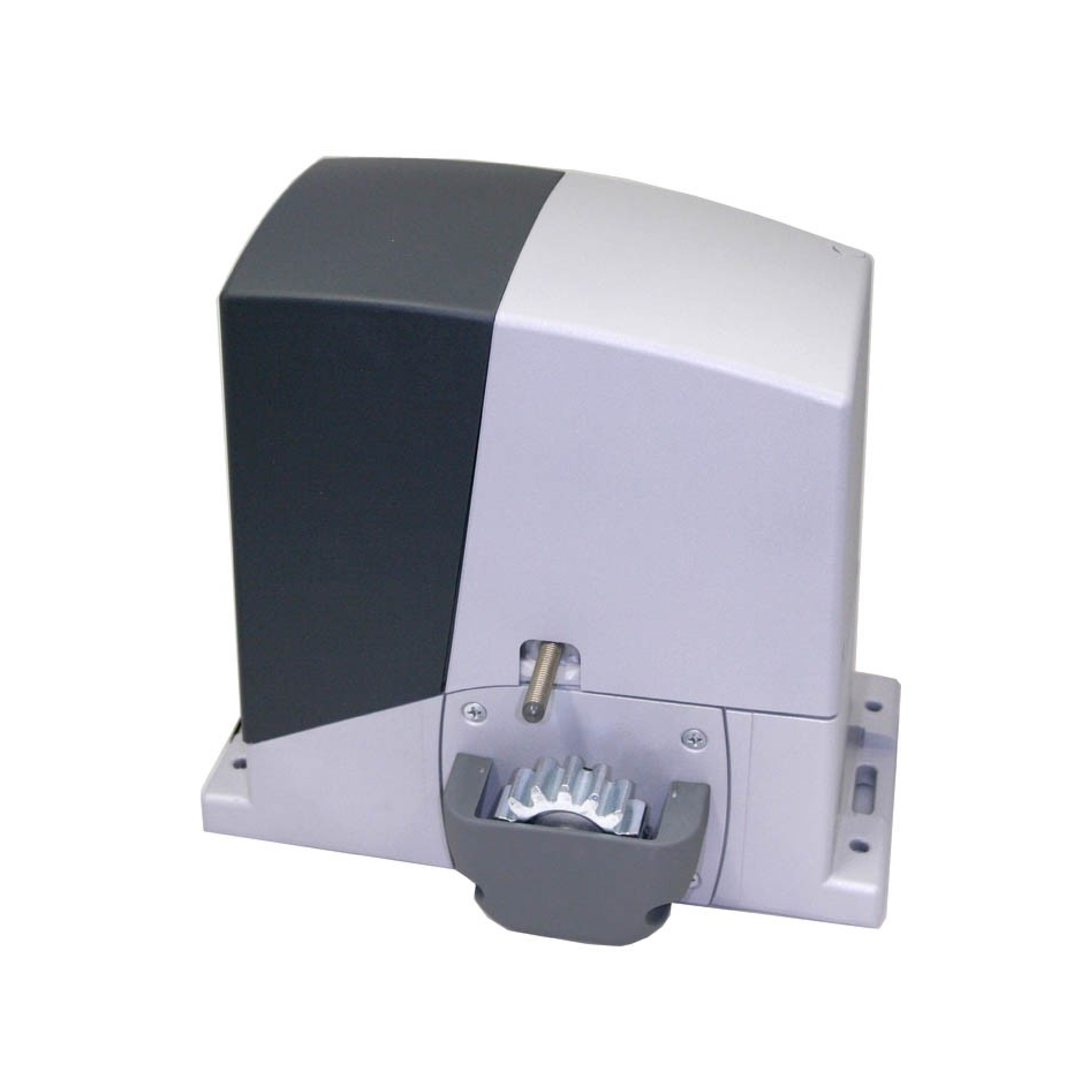

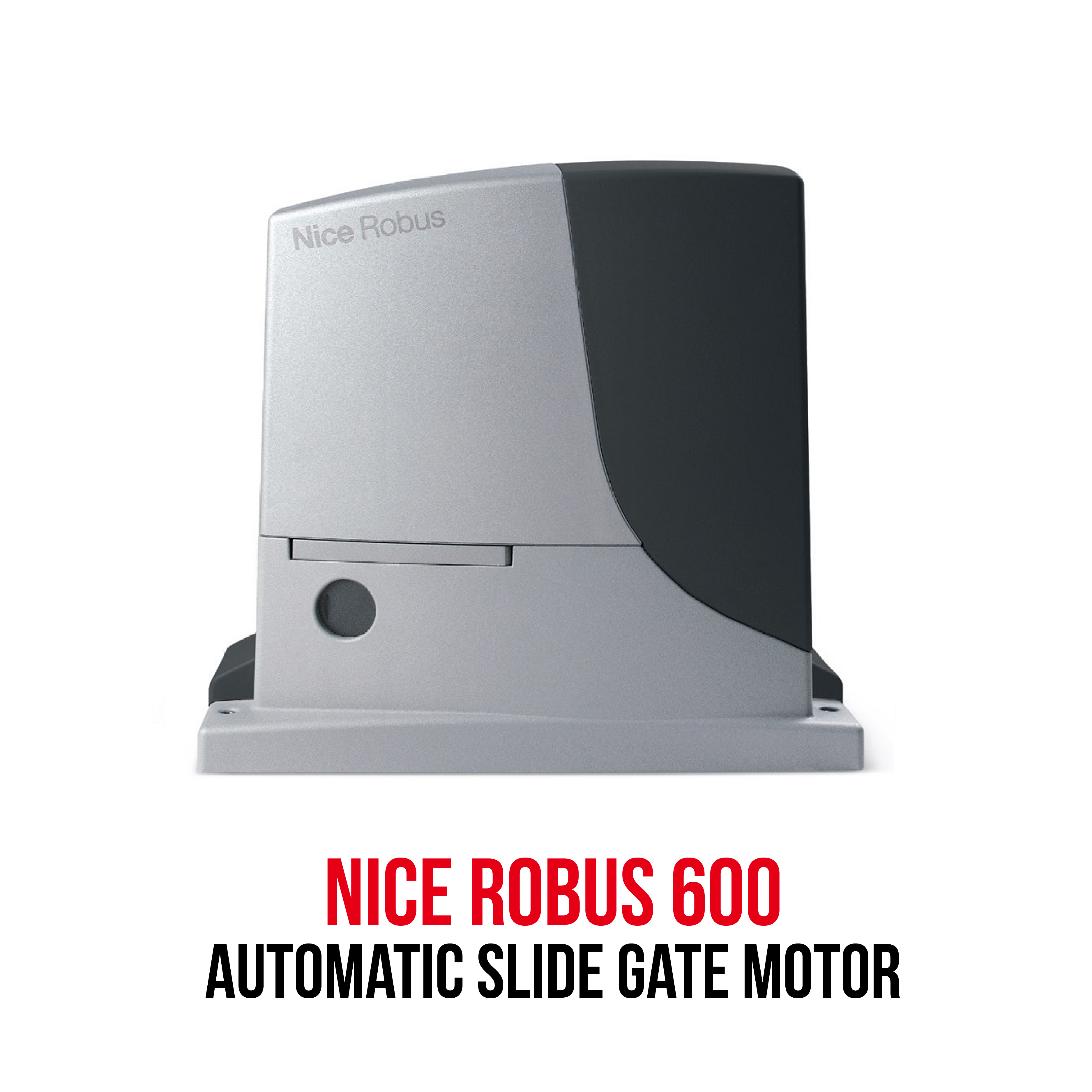

NICE ROBUS 600 Automatic Slide Gate Motor

RB600 Operator

Features & Benefits:

• Speed: class leading speed up to 0.31 m/s thanks to superb mechanical engineering and uncompromising component quality.

• Reliability: (Optional Extra) a genuine battery back-up system guarantees continued operation during power outages. The intelligent charger and system design ensures battery longevity.

Features and further details

Basic Information

• Motor power supply: 24 V

• Leaf maximum weight: 600 kg

• Motor type: Electromechanical

Technical Data

• Power Supply: 230 V AC 50Hz

• Absorption: 2.5 A

• Power: 515 W

• Speed: 0.31 m/s

• Force: 600N
• Work cycles: 40 cycles/hour

• Protection Level: IP44

• Working Temp: -20°C to +50°C

• Dimensions: 330mm×210mm×303(h)mm

• Weight: 11kg

Basic Control Board Functions

• Second line of photocells: BlueBus

• Pedestrian passage function: Yes

• Amperometric sensor: Yes

• Running time adjustment: No

• Force adjustment: No

• Pre-Flashing of the warning light: Yes

• Automatic closing: Yes

• Soft-stop/ Soft-start: Yes

Package Contains:

• RB600 Slide Gate Motor Opener 600KG
