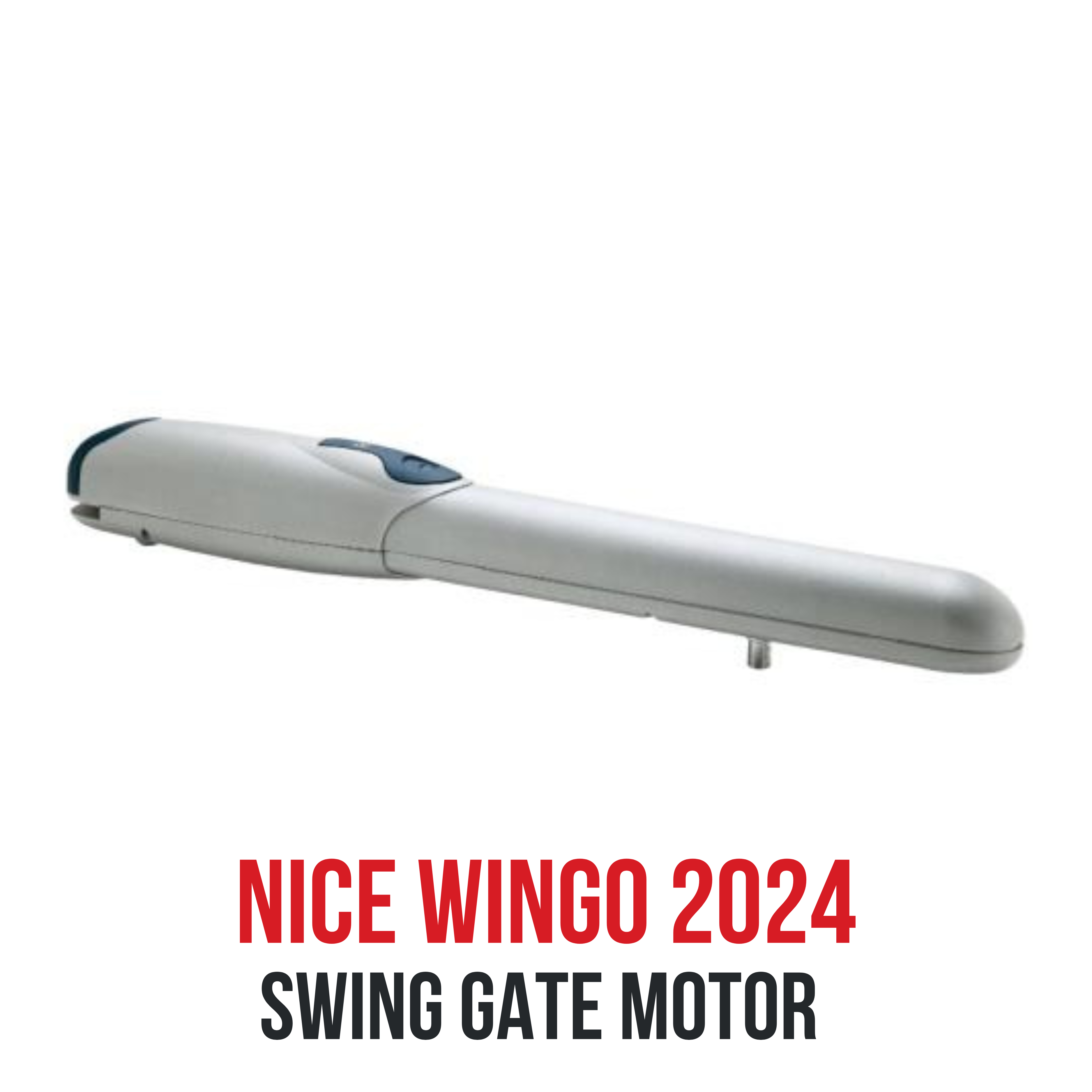

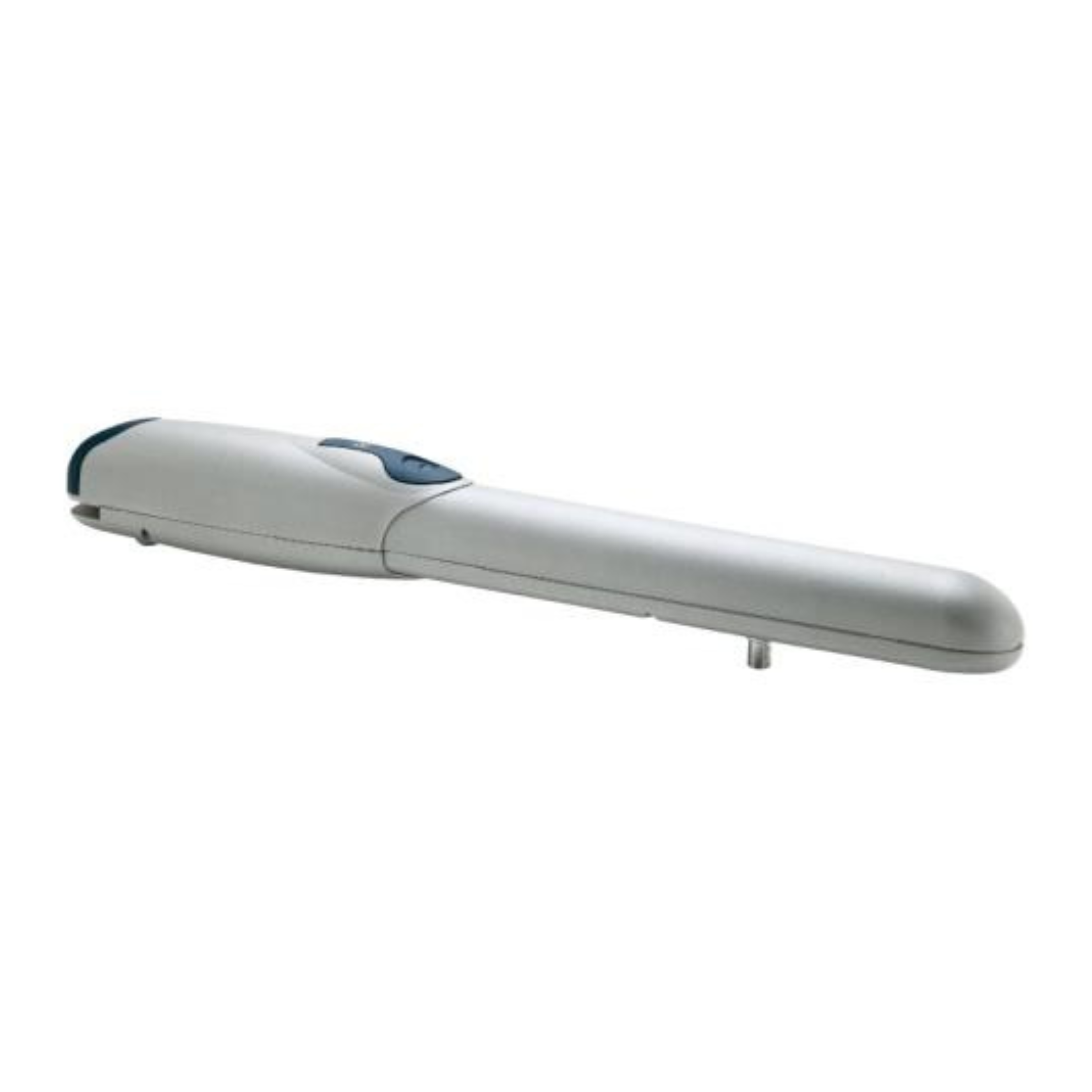

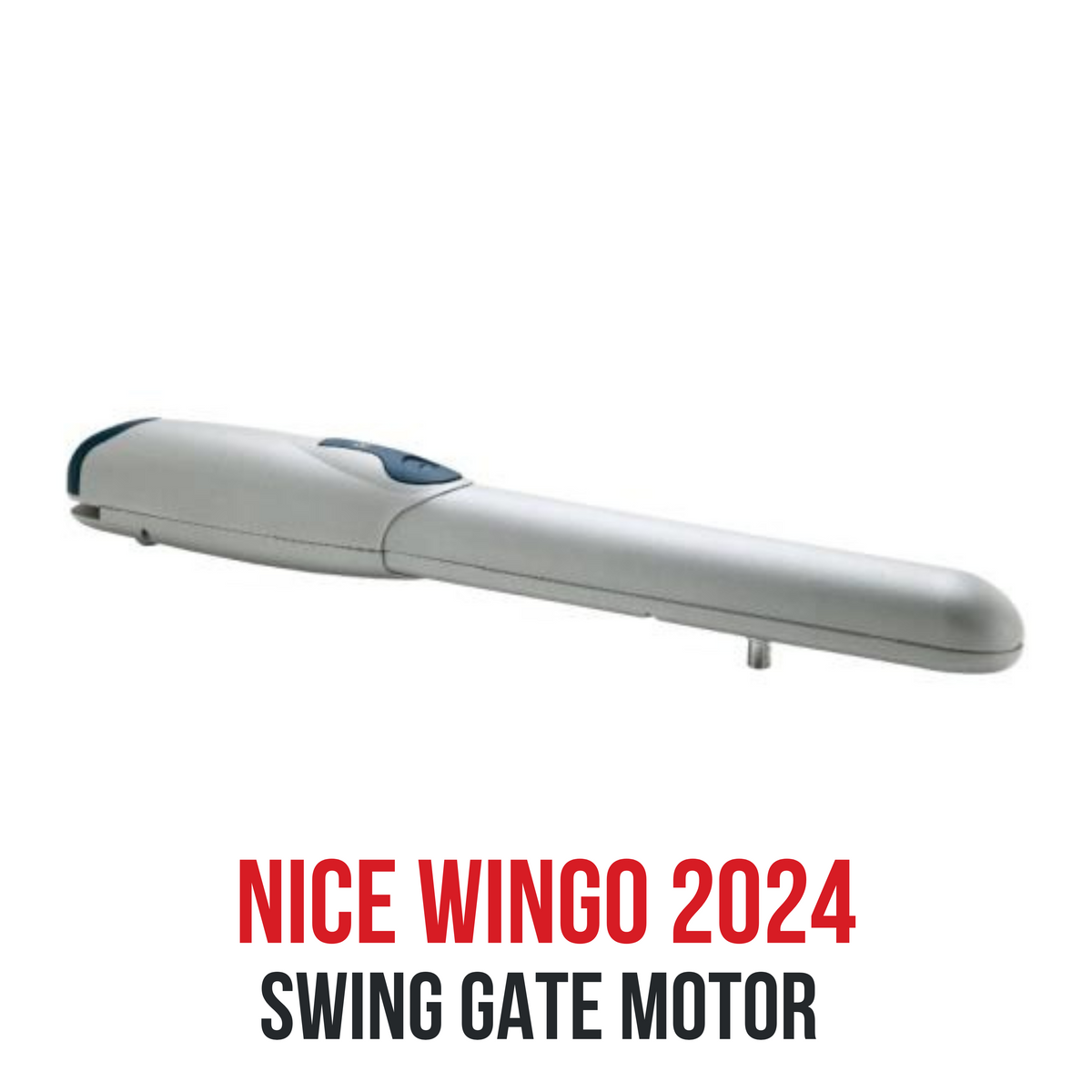

Nice Wingo 2024 Swing Gate Motor

Nice Wingo 2024 Swing Gate Motor

Features & Benefits:

• Reliable & Quiet: Built with a patented system of internal components, reduced moving parts, and durable materials to ensure long-lasting, quiet performance.

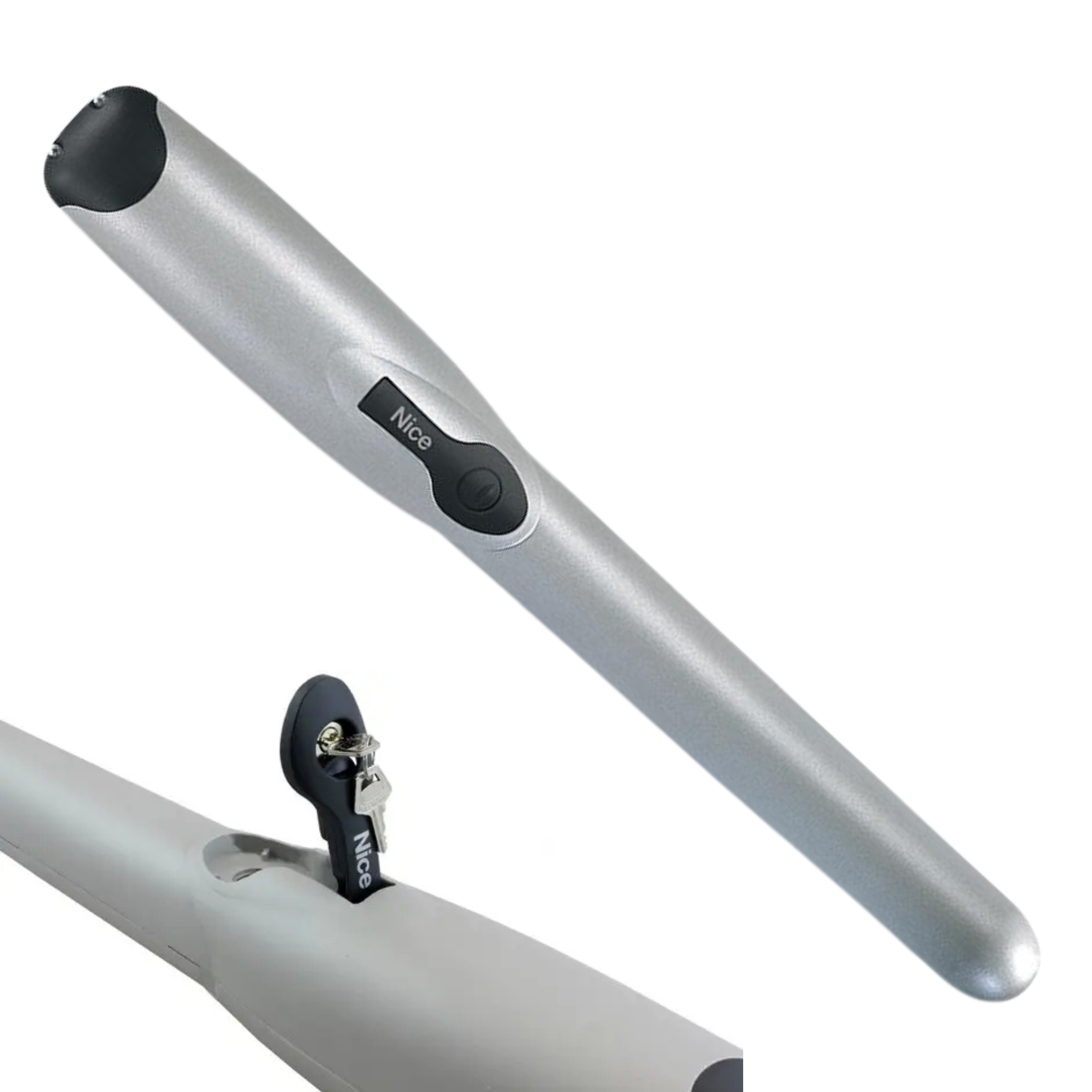

• Secure Locking: Once closed, the drive locks the gate leaves, eliminating the need for additional locks. Built-in travel stops define the opening limit precisely.

• Safety: Includes an amperometric obstacle detection system. If an obstacle is encountered during movement, the motor stops and reverses direction.

• Smooth Operation: Soft-start and deceleration at the end of movement ensure smooth opening and closing without jerks.

Basic Information

• Motor power supply: 24 V DC

• Gate maximum leaf size: 2 m (per leaf)

• Motor type: Electromechanical, surface-mounted

Technical Data

• Absorption: 3.5 A

• Power: 85 W

• Speed: 0.018 m/s

• Force: 1500 N

• Work cycles: 30 cycles/hour

• Protection Level: IP44

• Working Temperature: –20 °C to +50 °C

• Dimensions: 770 × 198 × 95 (h) mm

• Weight: 17 kg

Functions

• Amperometric obstacle detection

• Soft-start and soft-stop

• Travel stops for precise open/close limits
