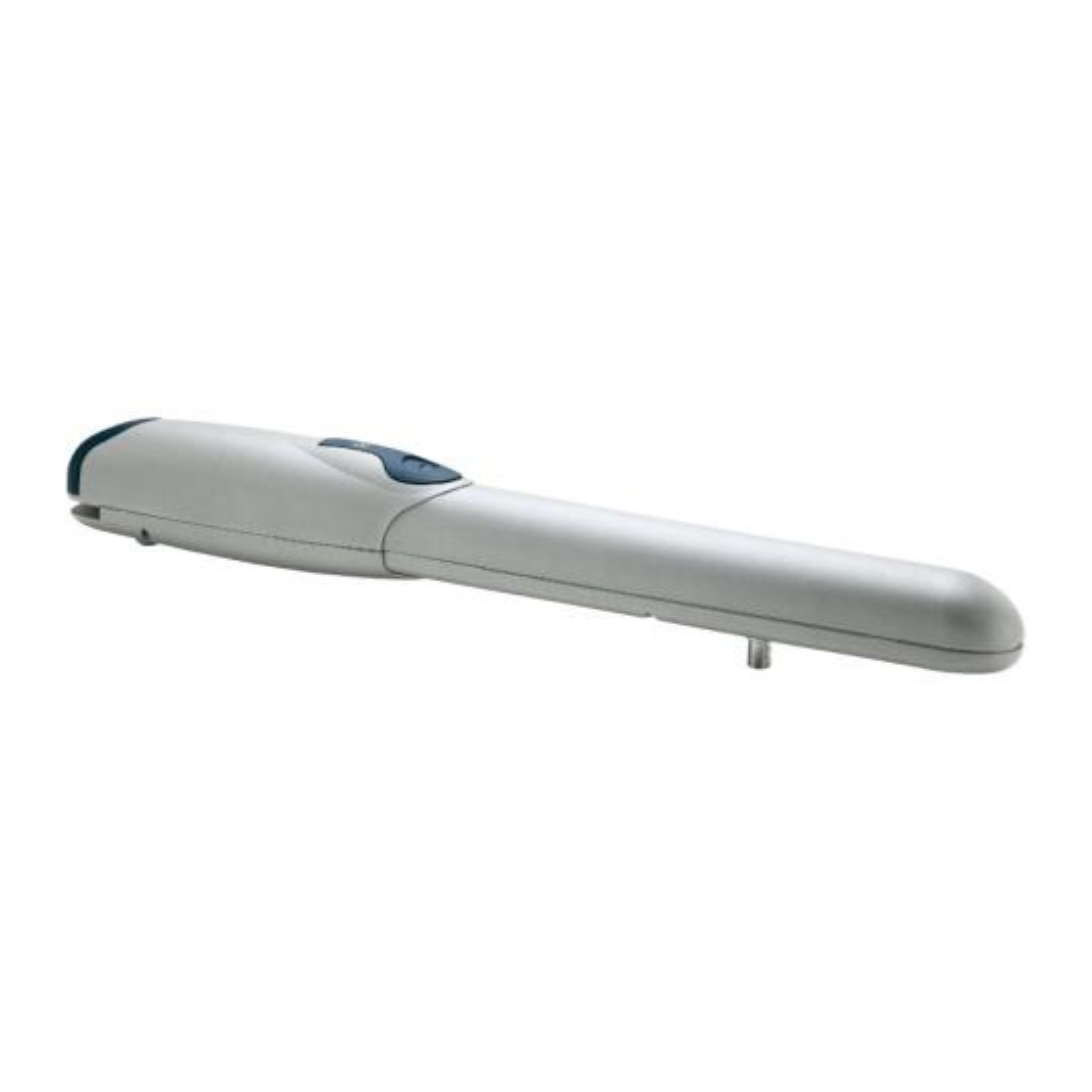

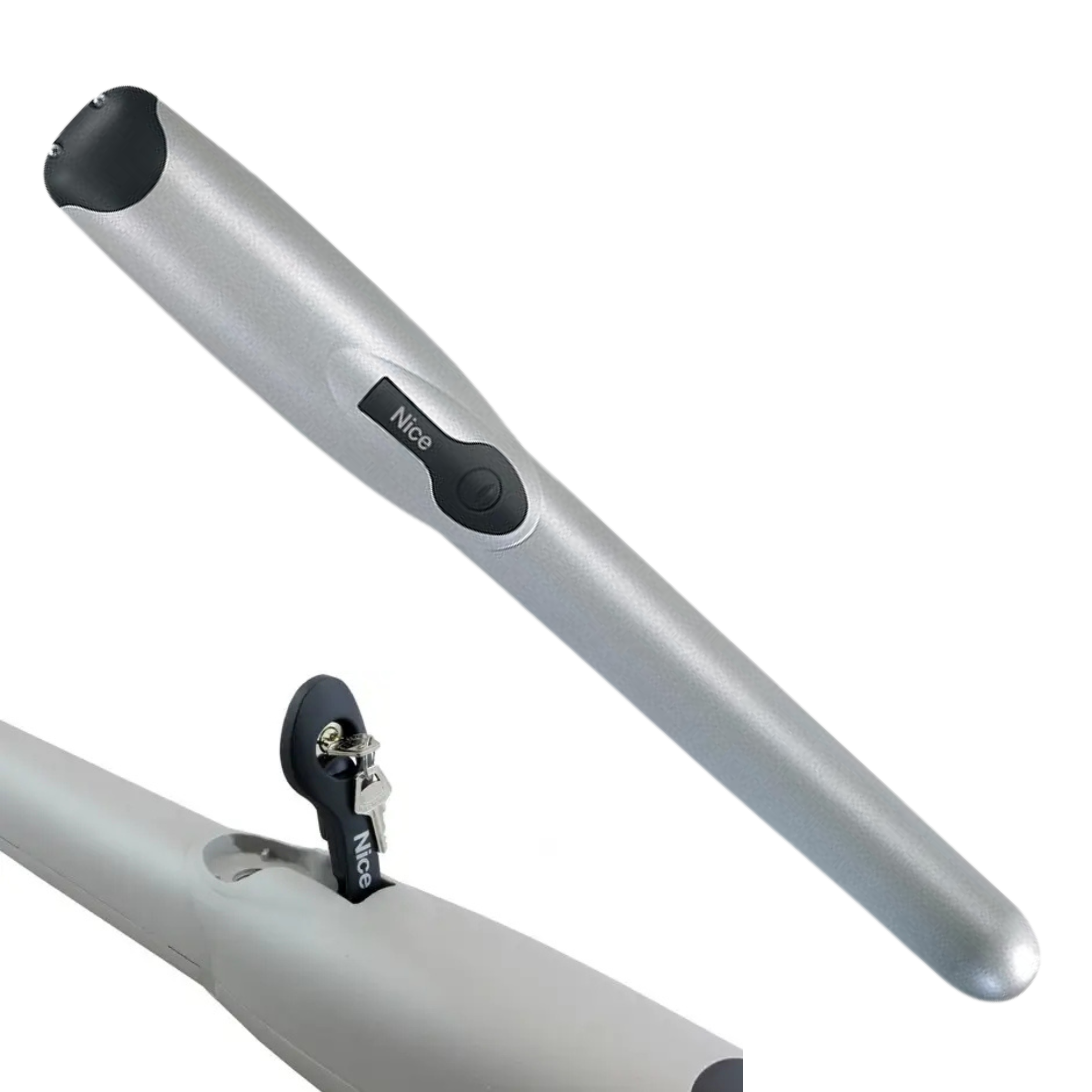

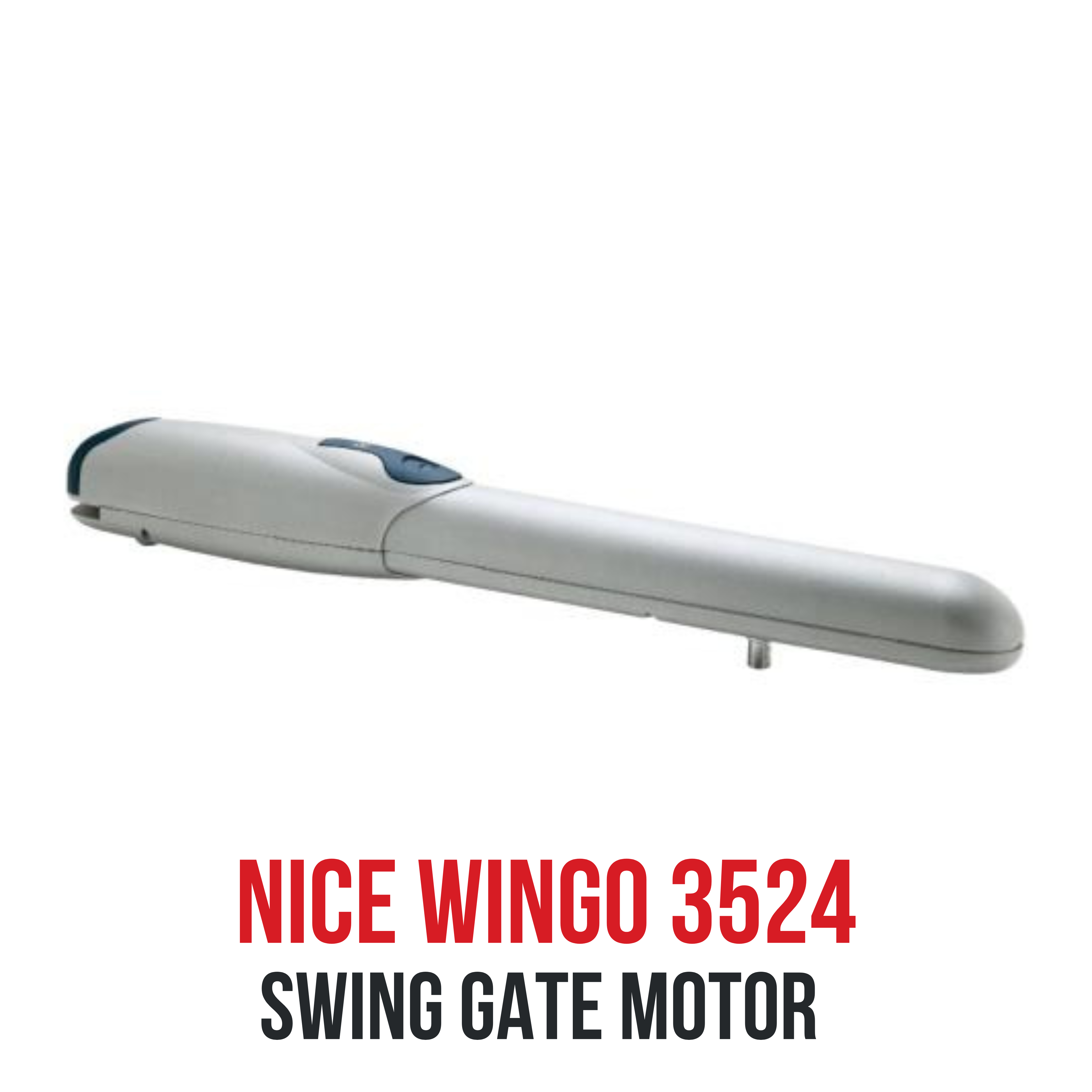

Nice Wingo 3524 Swing Gate Motor

Nice Wingo 3524 Swing Gate Motor

Features & Benefits:

• Reliable & Durable: Built with high-quality materials and a simplified design with fewer moving parts, ensuring many years of smooth and quiet performance.

• Secure Locking: Once the gate is closed, the drive locks the leaves, so no additional locks are required.

• Obstacle Detection: The motor is equipped with an amperometric obstacle detection system. When an obstacle is detected, the gate stops and reverses direction for safety.

• Smooth Operation: Includes soft-start and soft-stop functions to avoid jerks during opening and closing.

• Precision: Integrated end stops allow accurate control of the opening limit of the gate leaf.

Basic Information

• Motor Power Supply: 24 V DC

• Gate Maximum Leaf Size: up to 3.5 m

• Motor Type: Surface-mounted electromechanical gear motor

Technical Data

• Absorption: 3.5 A

• Power: 85 W

• Speed: 0.016 m/s

• Force: 1500 N

• Work Cycles: 30 cycles/hour

• Protection Level: IP44

• Working Temperature: –20 °C to +50 °C

• Dimensions: 920 × 98 × 95 (h) mm

• Weight: 18 kg

Functions

• Amperometric obstacle detection

• Soft-start and soft-stop

• End stops for precise open/close limits

• Locking function when gate is closed
