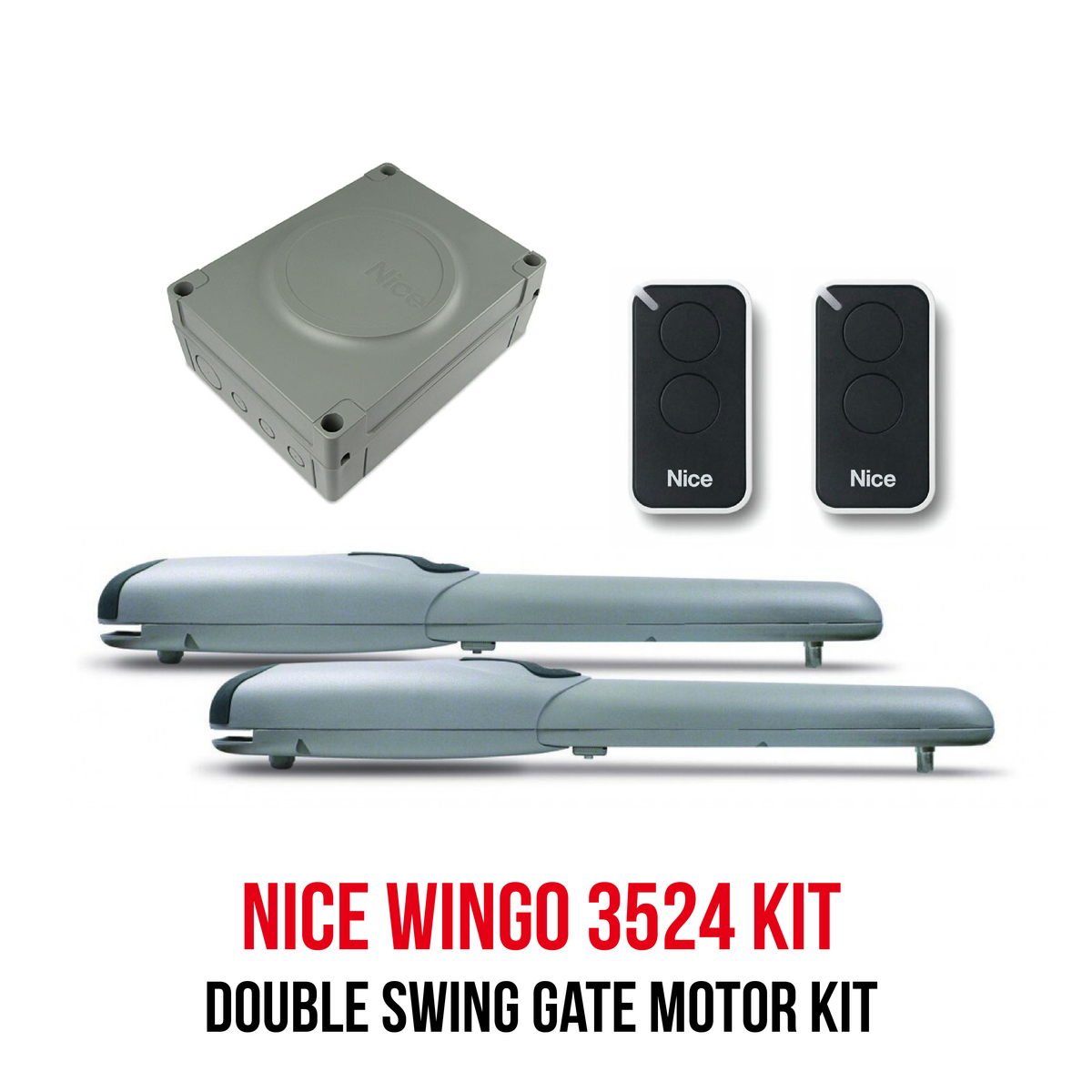

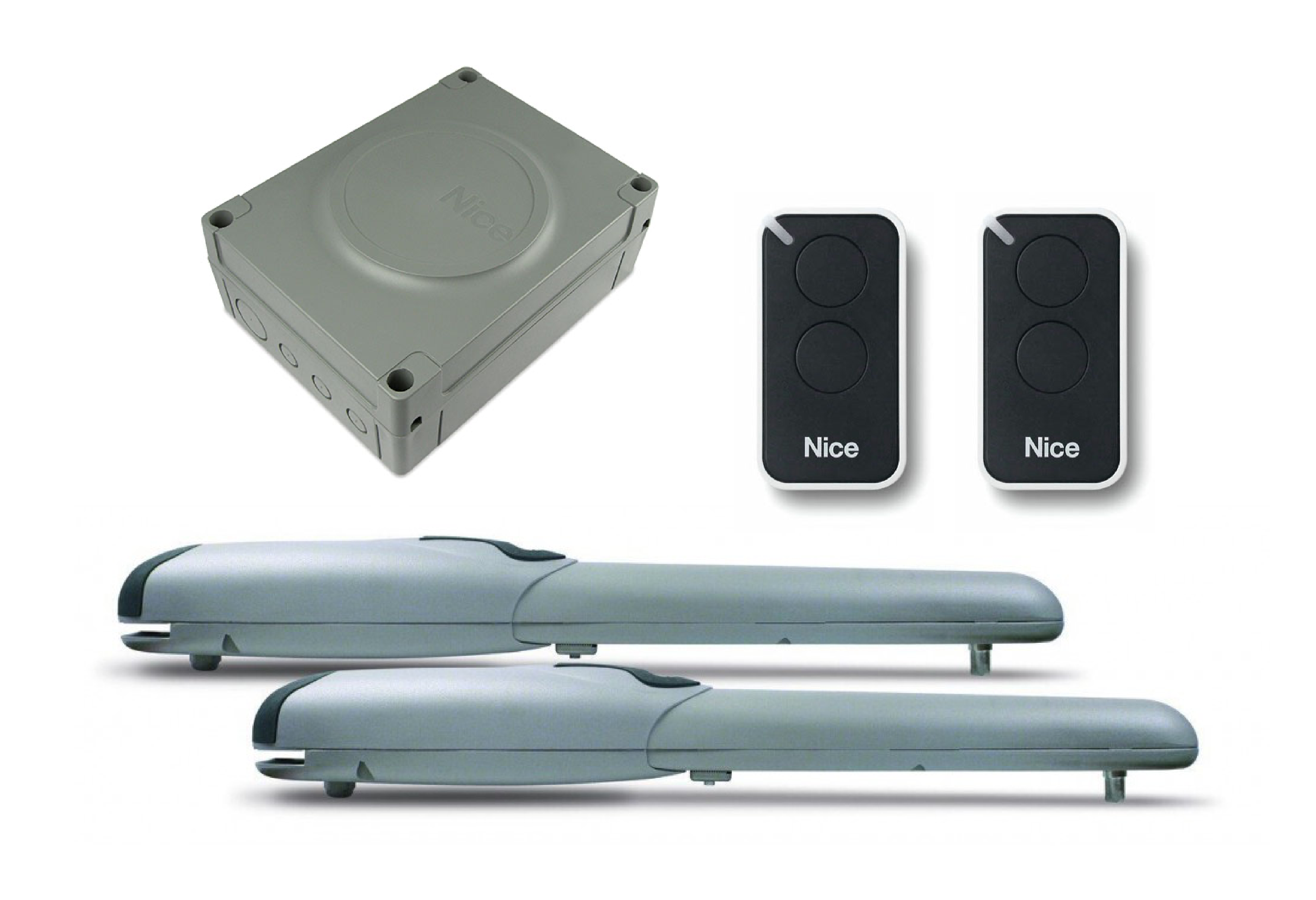

NICE Wingo3524 kit

Wingo Double Swing Gate Motor Opener Kit

Reliable and quiet drive for estate and home gates. Patented system of internal components, simple construction in which the number of moving parts has been reduced to a minimum and high quality of materials used make the drive will serve for many years.

The drive, after closing, locks the gate preventing it from opening, there is no need for additional locks. In addition, both actuators are equipped with end stops that define the opening limit of the wing.

WINGO3524 has an amperometric obstacle detection system - it is used to detect any obstacles that may occur during normal gate movement. Thanks to this function, when the obstacle is encountered, the drive stops the gate and changes its direction.

To avoid a strong jerk when opening or closing the door, the actuators have a smooth release function during closing and soft start.

Moonclever control unit (MC424LR10):

• simple programming, wirks with Oview programmer
• built-in radio receiver FLO FLOR SMILO OPERA
• clutch with anti-crush safety feature
• automatic memorization of limit switches on opening and closing with self-learning function
• programming of pause time
• pedestrian pass door
• deceleration on opening and closing
• obstacle detection system
• can be linked to the 8.2 KOhm resistive sensitive edge
• continues to work even during power failures using optional (PS124) batteries that fit inside the control unit

Specifications:

• Power Supply (Vdc): 24 V
• Absorption: 3.5 A
• Power: 85 W
• Speed: 0.016 m/s
• Force: 1500N
• Work cycles: 30 cycles/hour
• Protection Level: IP44
• Working Temp: -20°C to +50°C
• Dimensions: 920mm×98mm×95(h)mm
• Weight: 18kg
• Max Swing gate leaves: 3.5m

Kit Contains:

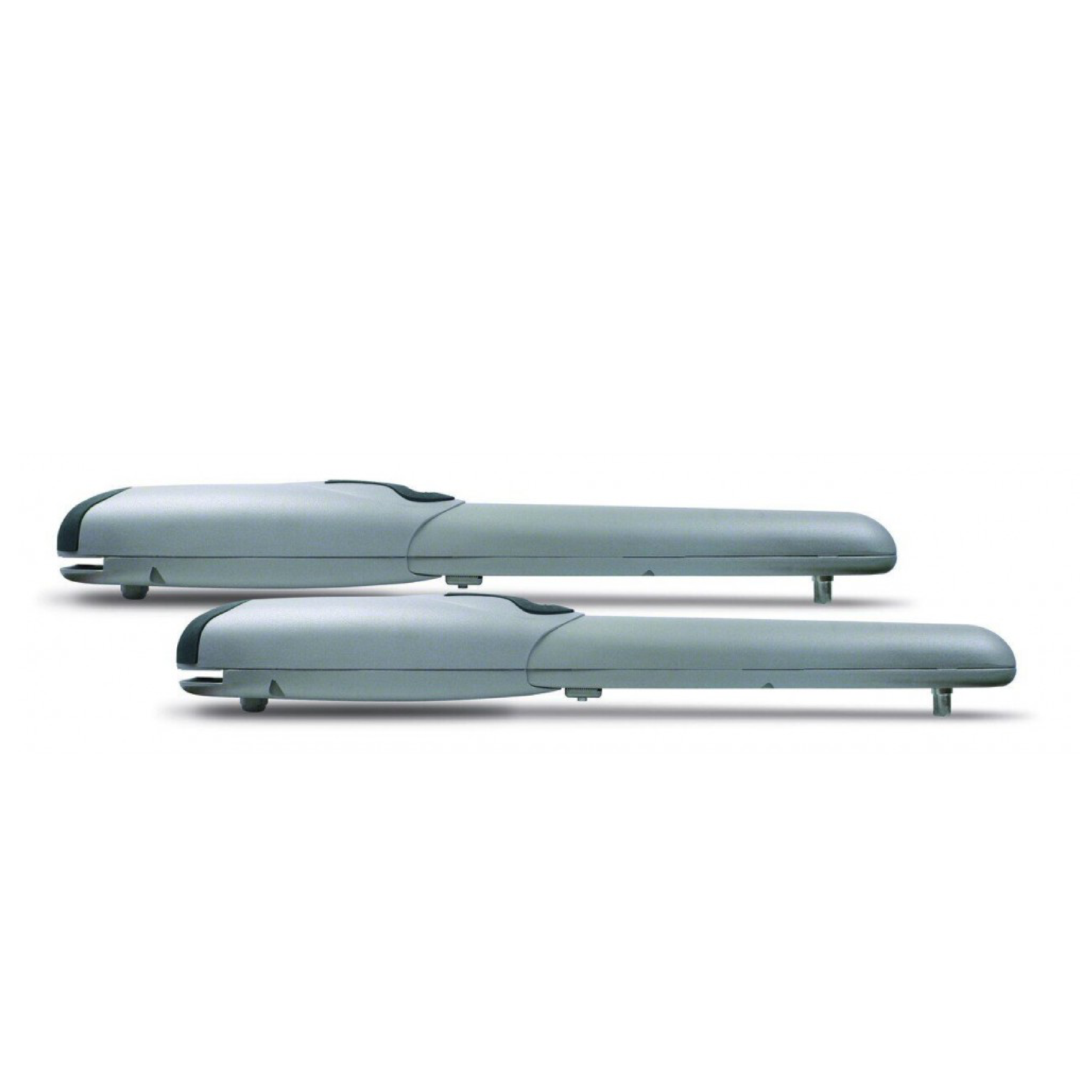

• WG3524 – 2 x surface-mounted electromechanical gear motor with Nice key release.

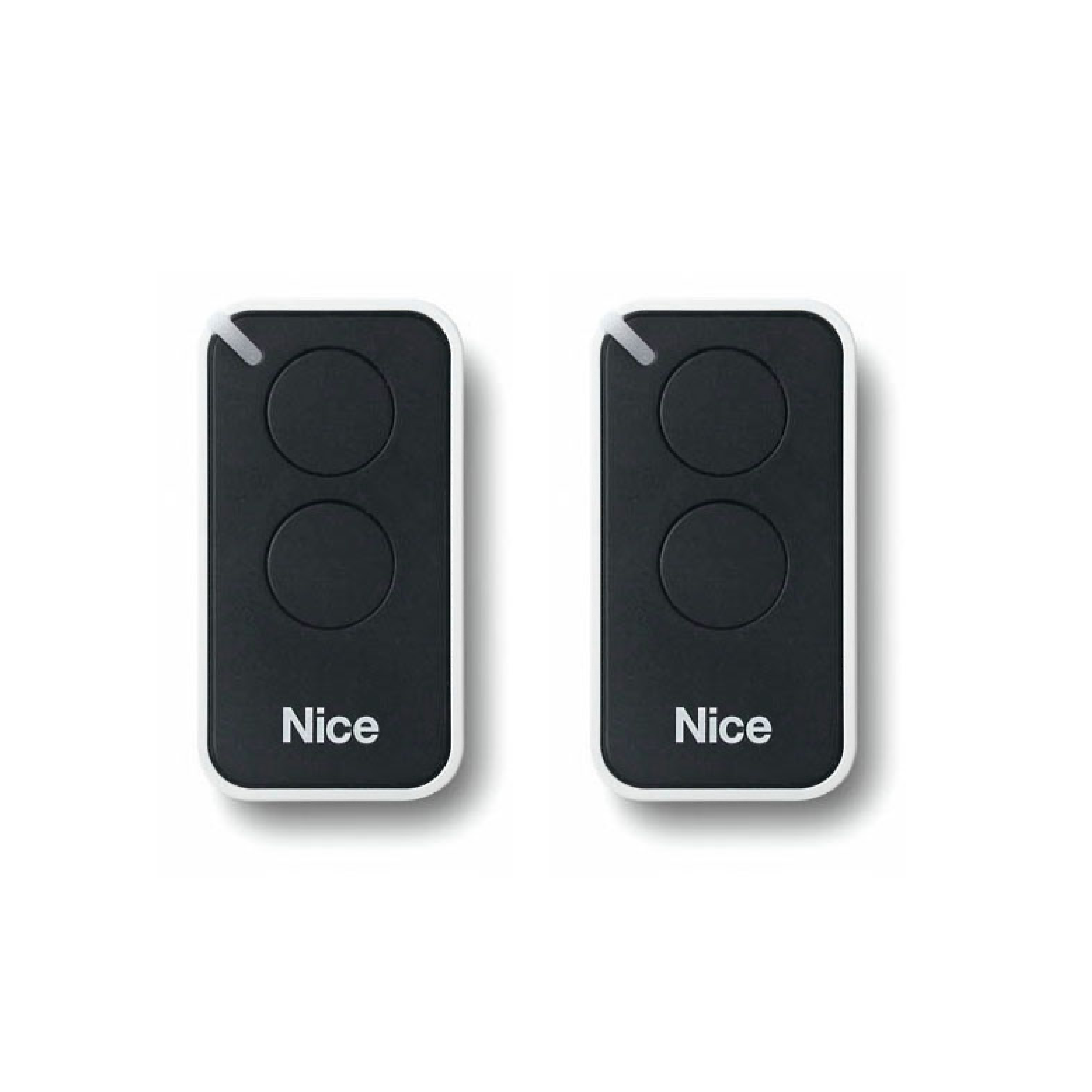

• FLO2R-S – 2 x transmitter 433.92 MHz, 2 channels.

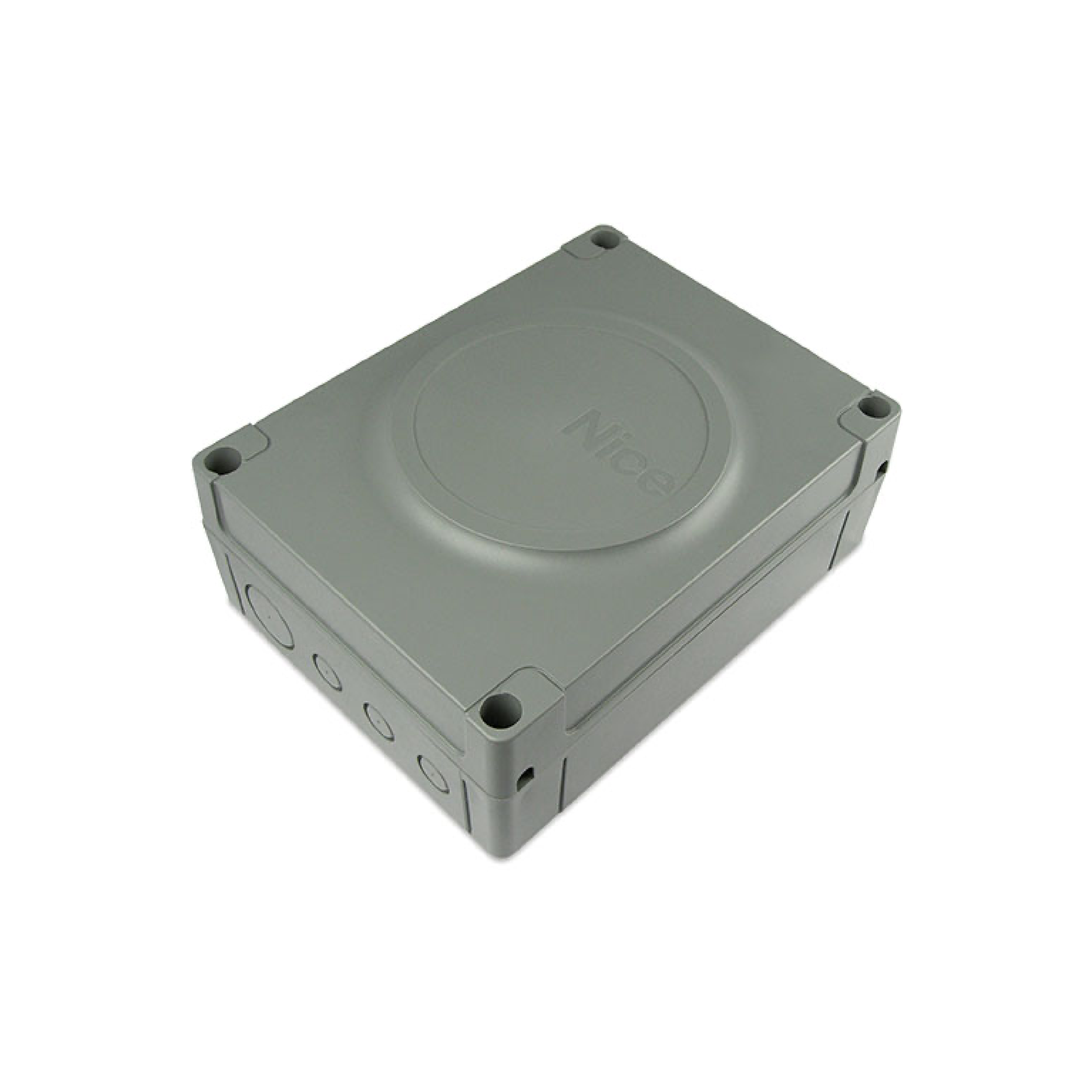

• MC424L – 1 x control unit with built-in receiver
