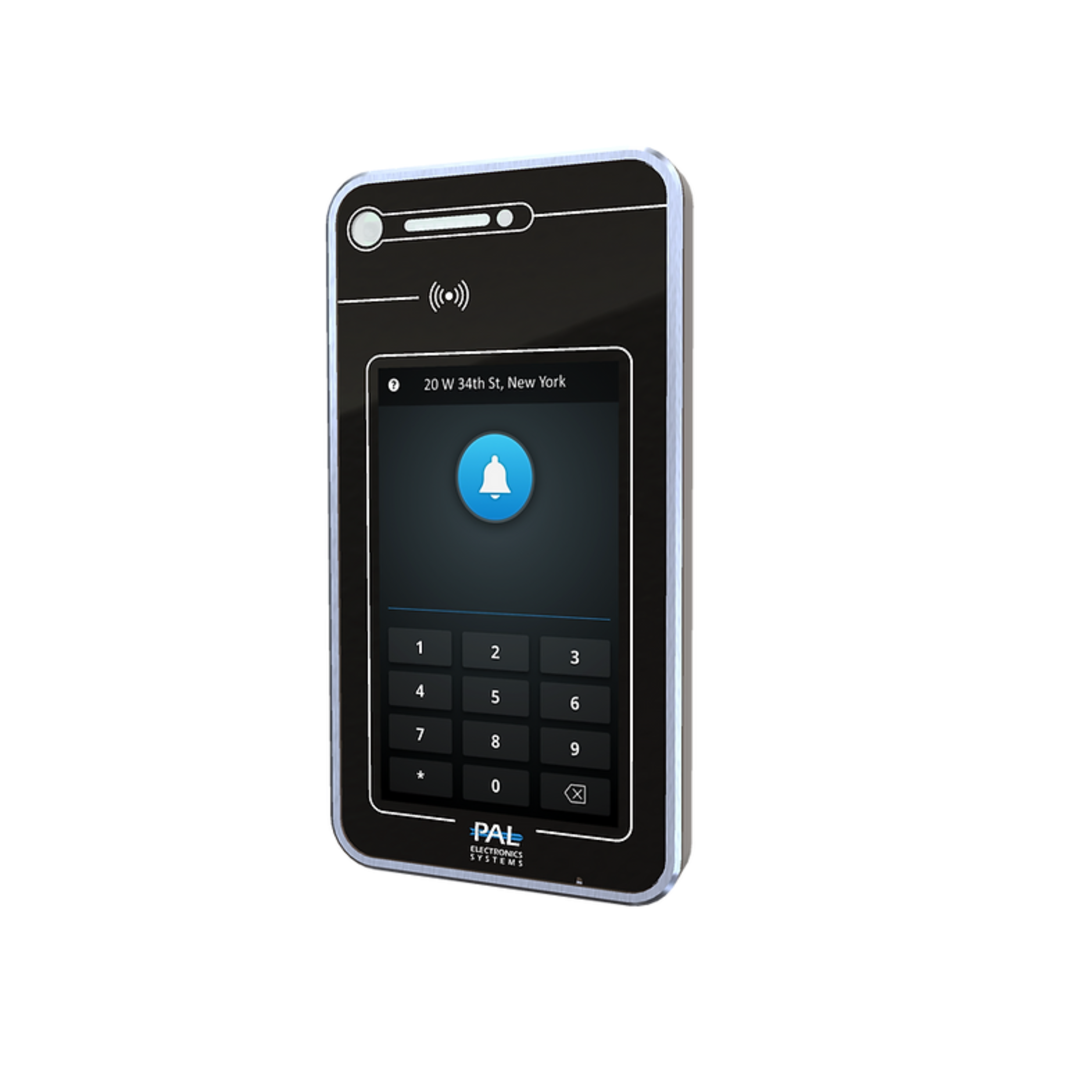

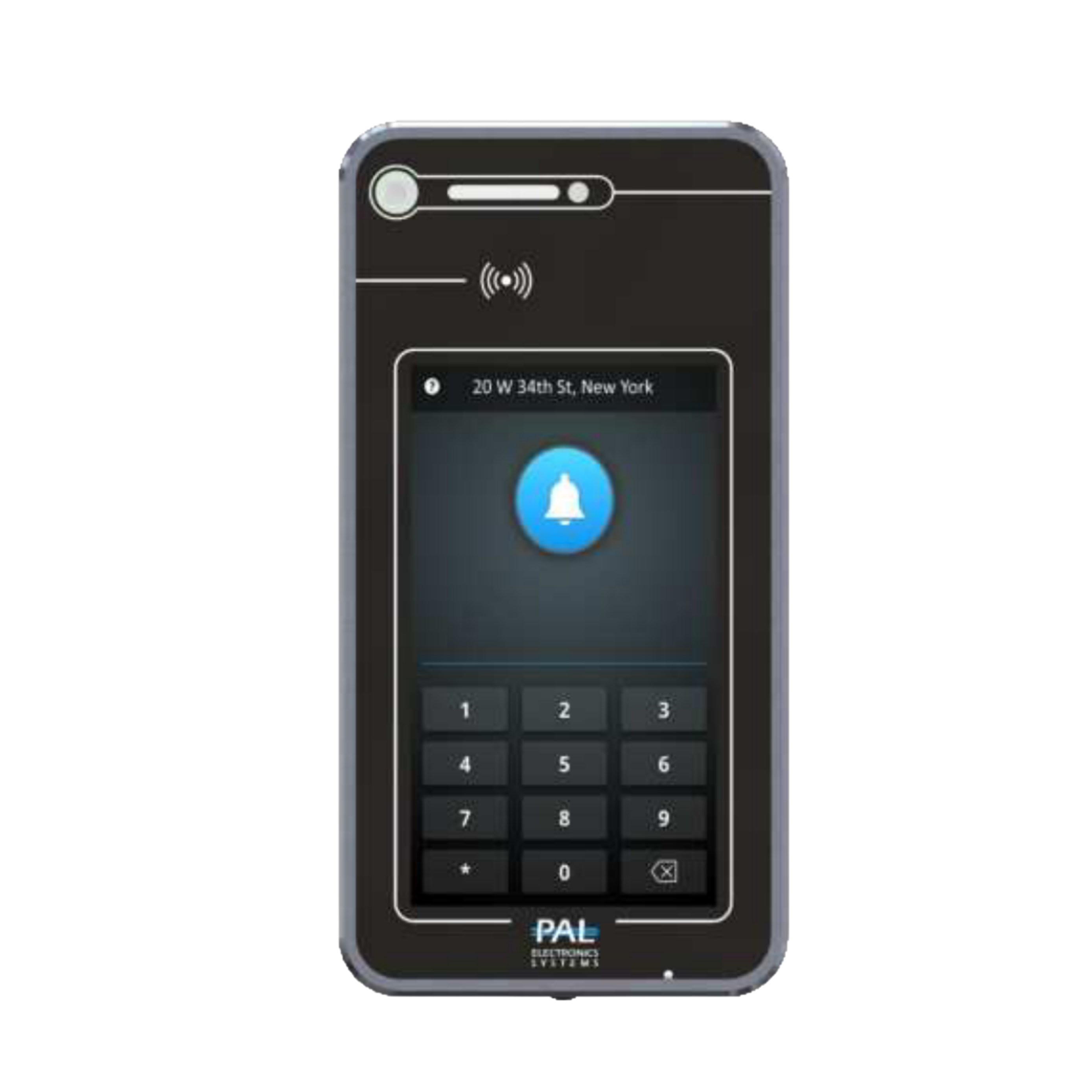

Pal Wireless Video Intercom panel System

VPS – Video Panel System

Turn your entrance into a smart, secure, and elegant communication point. The VPS is a modern video-intercom panel designed to provide advanced access control, high-quality video, and simple remote management — all in one sleek device.

Features

• 7" Touchscreen Display: High-resolution screen with an intuitive interface for clear and simple operation.

• Wide-Angle Camera: 8 MP camera with a wide field of view ensures excellent video quality and full visibility of visitors.

• Multiple Access Options: Unlock via smartphone app, RFID/NFC tags, numeric keypad, or remote cloud control.

• Connectivity Flexibility: Supports Ethernet (PoE), WiFi, Bluetooth, and 4G/3G networks — eliminating the need for complex cabling.

• Robust and Stylish Design: Anti-vandal front panel with modern aesthetics suitable for both indoor and outdoor installations.

• Easy Setup and Management: Fully integrated with the PalGate app and cloud platform, allowing quick installation and remote configuration.

• Versatile Installation: Available for flush or wall mounting, ideal for apartments, gated communities, and commercial buildings.

Technical Specifications

• Display: 7″ capacitive touchscreen, 720 × 1280 px resolution

• Camera: 8 MP, approximately 120° field of view

• Communication Interfaces: WiFi 802.11 a/b/g/n, Bluetooth LE, Ethernet 10/100 Mbps, 4G/3G/2G cellular

• Power Supply: PoE+ (IEEE 802.3) and/or 48 V DC input

• Operating Temperature: –20 °C to +65 °C

• Housing: Anti-vandal metal design, weather-resistant (use gasket for outdoor installation)

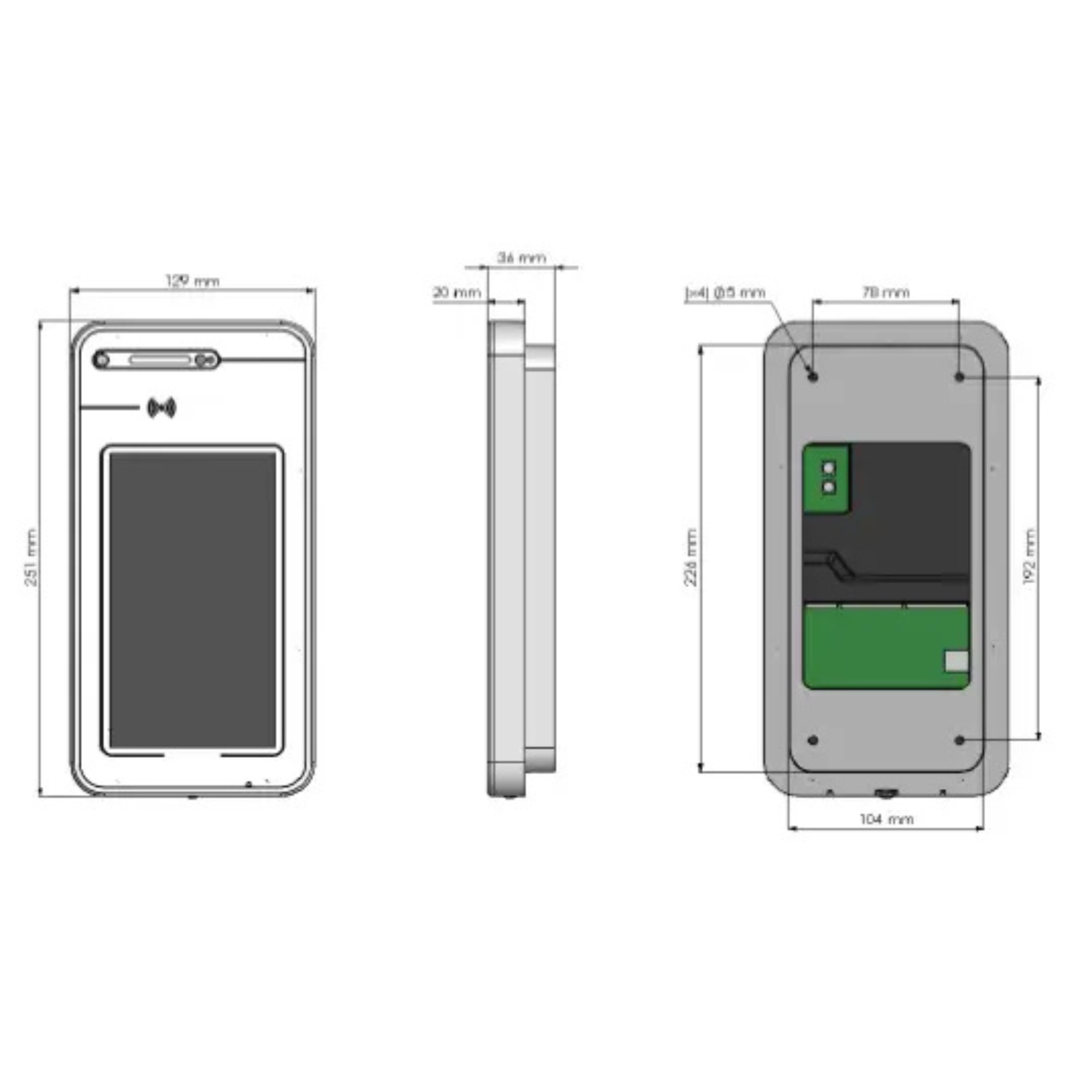

• Dimensions: Approximately 251.6 × 129.6 mm

• Compatibility: Works with the PalGate mobile app (iOS and Android) and PalGate Cloud portal

Advantages

• Combines video, communication, and access control in one elegant unit.

• Reduces installation costs thanks to wireless and PoE connectivity.

• Enables remote management and live video access from anywhere.

• Strong anti-vandal build ensures long-term durability in any environment.

• Perfect for upgrading old intercom systems without rewiring.

Recommended Uses

• Apartment buildings and gated communities

• Commercial entrances and office buildings

• Industrial or private gates

• Remote properties where cellular access is preferred
