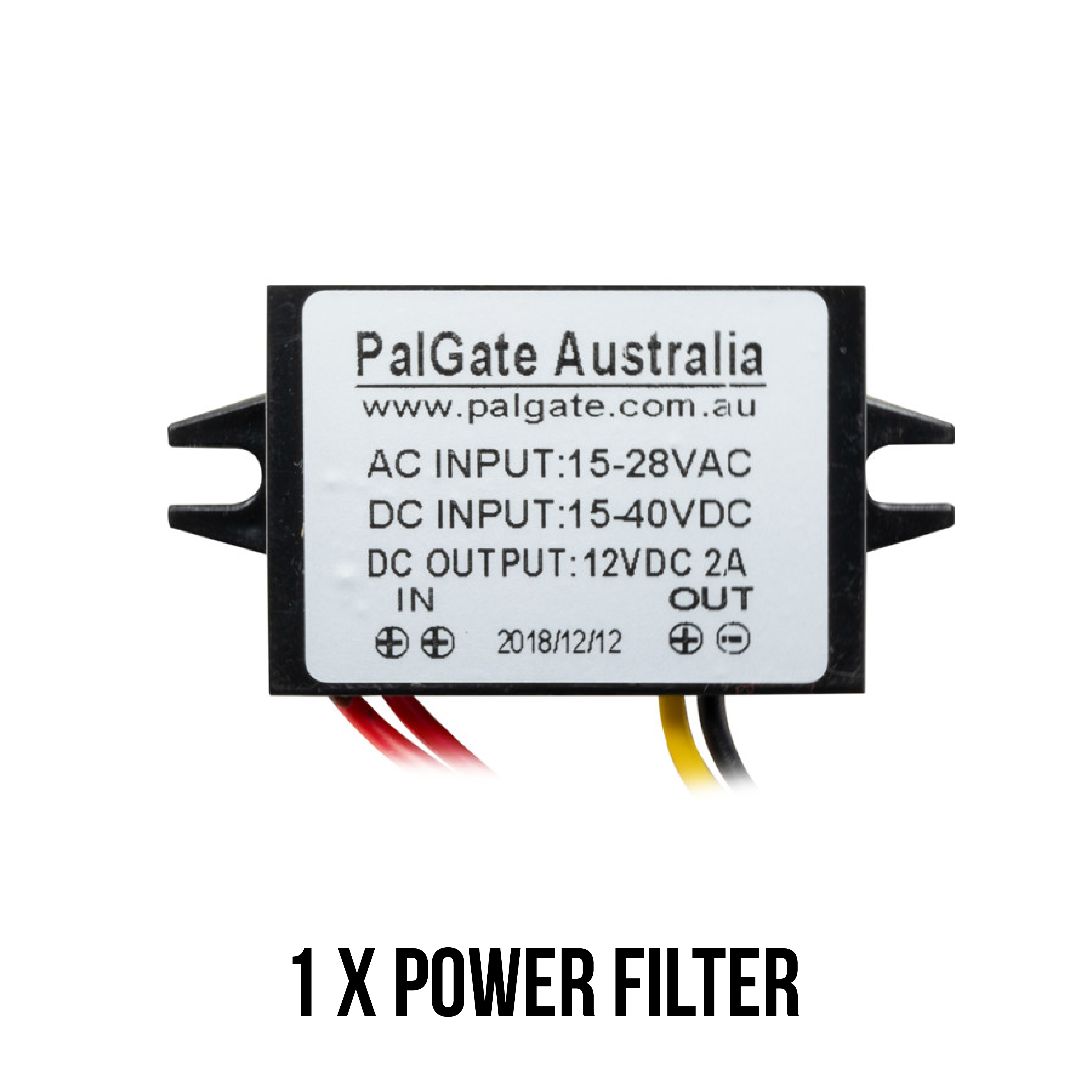

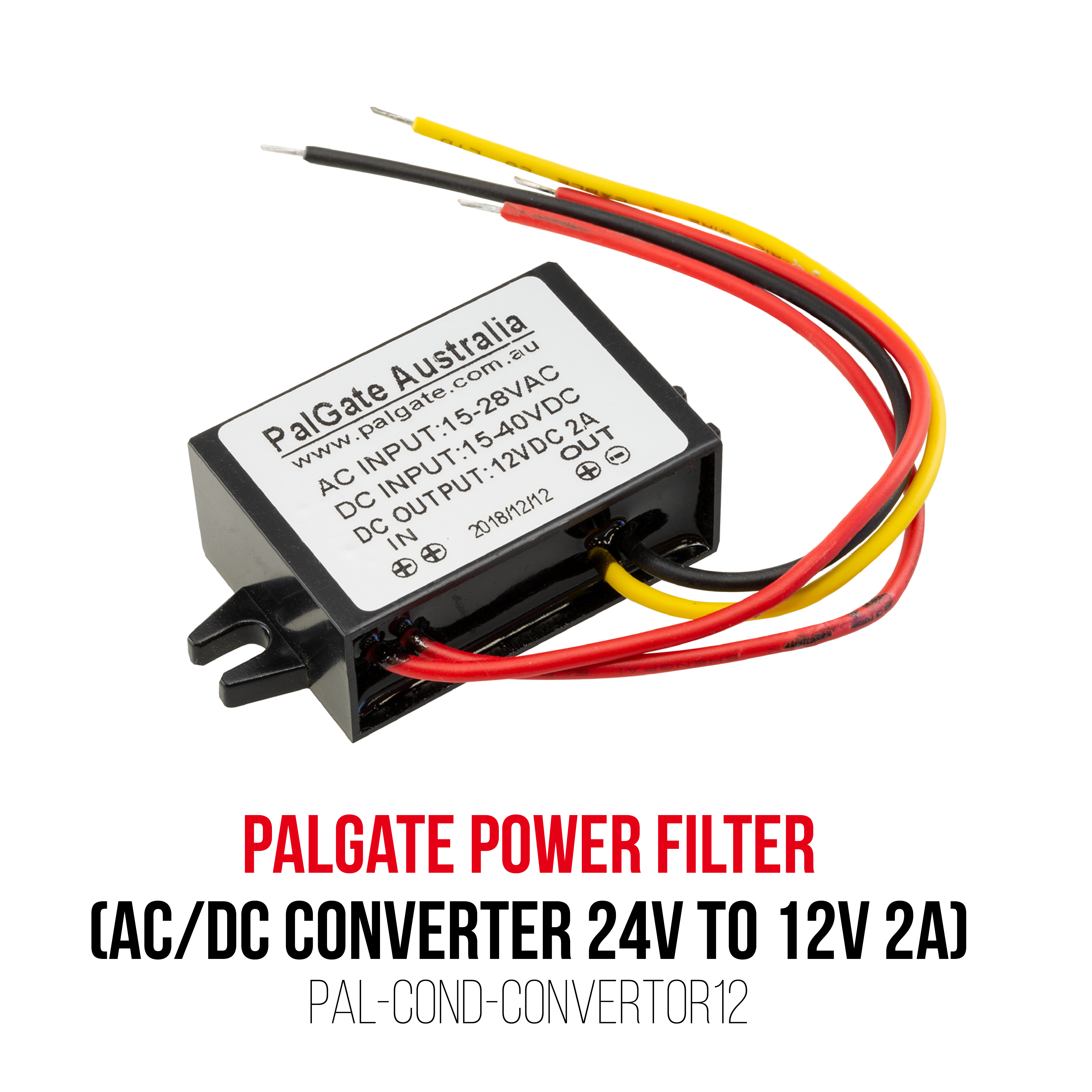

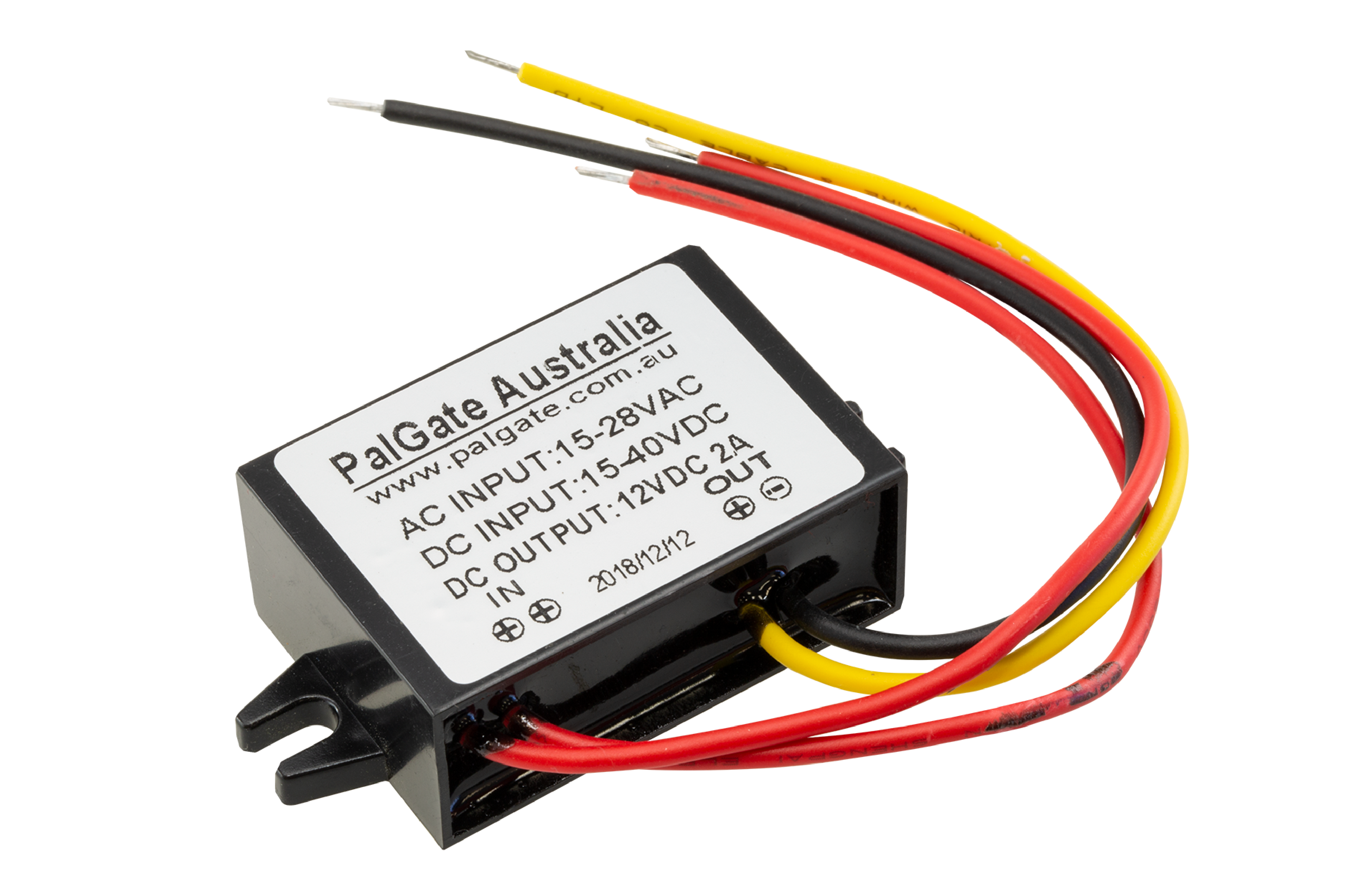

PALGATE 2x Power Filter (PAL-COND-CONVERTOR12)

AC/DC Converter 24V to 12V 2A Gate/intercom power Converter

- Conditioner by Palgate australia
- DC voltage converter modules that can step-down voltages so you can power your devices
- You Put AC or DC and you get clean 12V DC at 2.0A
- Unit is Waterproof IP66
- Useful where a different power source is present and/or AUX power is not “Clean” or fluctuating.

Technical Details

Input rated voltage: 24 V AC
Input voltage range: 15-26VAC / 15-40VDC
Conversion Efficiency: 95% (half load) ; 94% (full load)
Output voltage: 12V DC
Output current: 2 Amps
Working Temperature: -40°c ~ +80°c
Waterproof rating: IP 68
Protections Reverse connection, Over-current, Over-temperature, Output short circuit
Machine size: 46*32*18mm
N. Weight: 45g
Cooling wayFree air convection
Certifications: CE, RoHS
Other: Standard static bag packing
Perfect for Gates, Electric Locks, Intercoms, CCTV power units, automated door controller, strikes,
DC to DC Step Down Voltage
