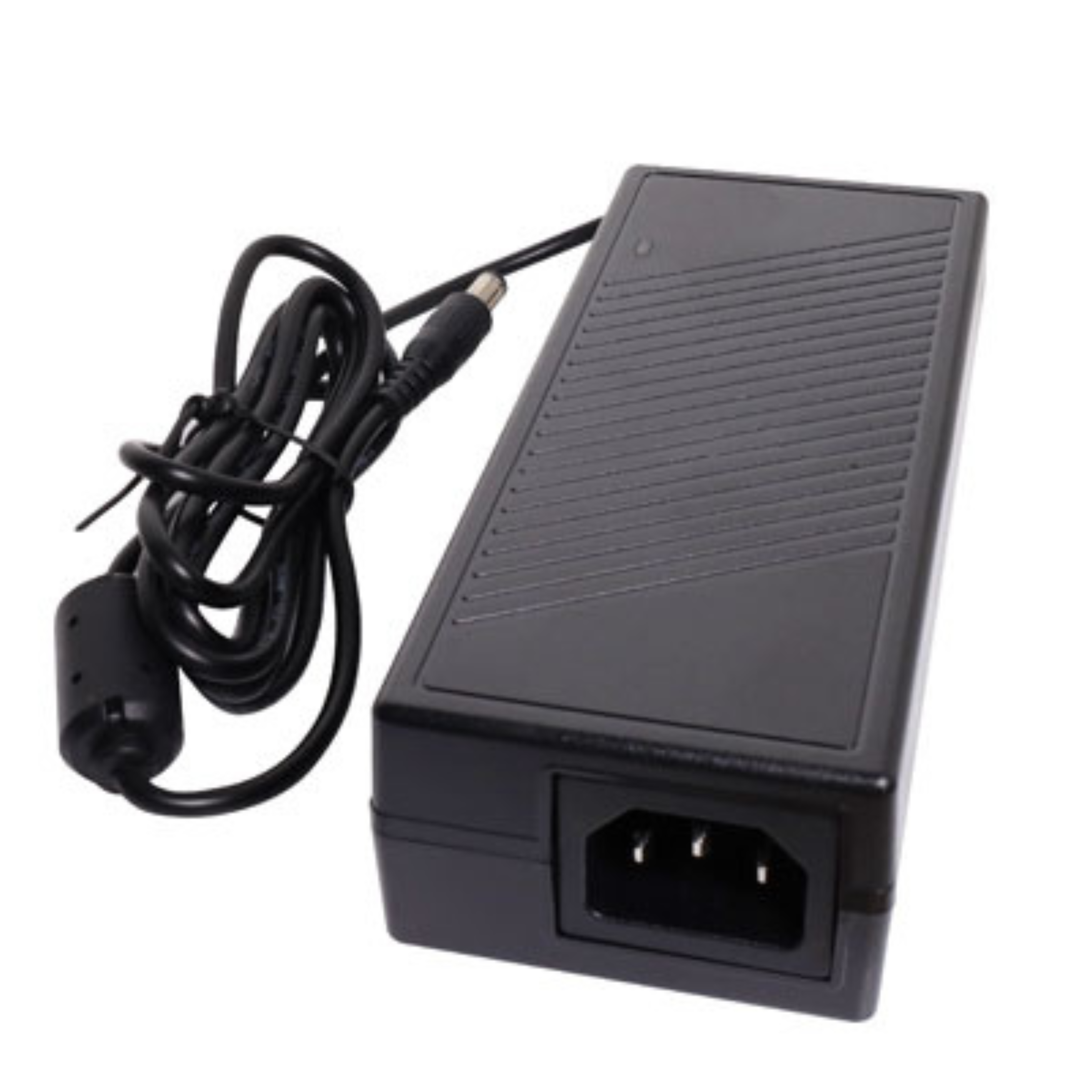

Powertran 48V DC 2.5A Appliance Powerpack

Powertran 48V DC 2.5A Appliance Powerpack

A high-quality regulated DC power supply designed for a wide range of electronic and industrial applications. Compact, reliable, and efficient, this Powertran unit delivers a stable 48V DC output for devices that require consistent performance and protection.

Features

• Regulated Output: 48V DC @ 2.5A (up to 120W), ensuring stable and clean power delivery.

• Wide Input Range: 100–240V AC, 50–60Hz – ideal for international or variable mains power.

• Fixed DC Connector: 5.5mm outer diameter / 2.1mm inner diameter barrel plug, positive-centre polarity.

• Safety Protections: Built-in short circuit, over-voltage, and over-current protection for safe, reliable operation.

• Compact Design: Durable and efficient with dimensions approximately 167mm (W) × 65mm (H) × 40mm (D).

• Compliant and Efficient: Meets Australian safety and MEPS energy efficiency standards (Level V).

• Convenient Use: Supplied with a fixed DC lead (approx. 1.2–1.5m). Requires standard IEC C13 mains lead (not included).

Technical Specifications

• Input Voltage: 100–240V AC, 50/60Hz

• Output Voltage: 48V DC

• Output Current: 2.5A

• Power Output: 120W (maximum)

• DC Connector: 5.5mm OD / 2.1mm ID barrel plug, positive centre

• Dimensions: 167 × 65 × 40mm

• Operating Temperature: 0°C to +40°C (typical indoor use)

• Compliance: Australian electrical standards and MEPS Level V efficiency

Advantages

• Provides a reliable 48V DC power source for various appliances and systems.

• Suitable for both consumer and professional equipment.

• Easy to install and connect with standard barrel plug fitting.

• Integrated protection circuitry extends the life of connected devices.

• Compact, lightweight, and built to meet safety requirements.

Recommended Uses

• Gate automation systems and intercoms

• Network switches, routers, or PoE converters requiring 48V DC

• Access control units and security panels

• Test benches, communications gear, and OEM applications
