ROSSLARE KEYAPD

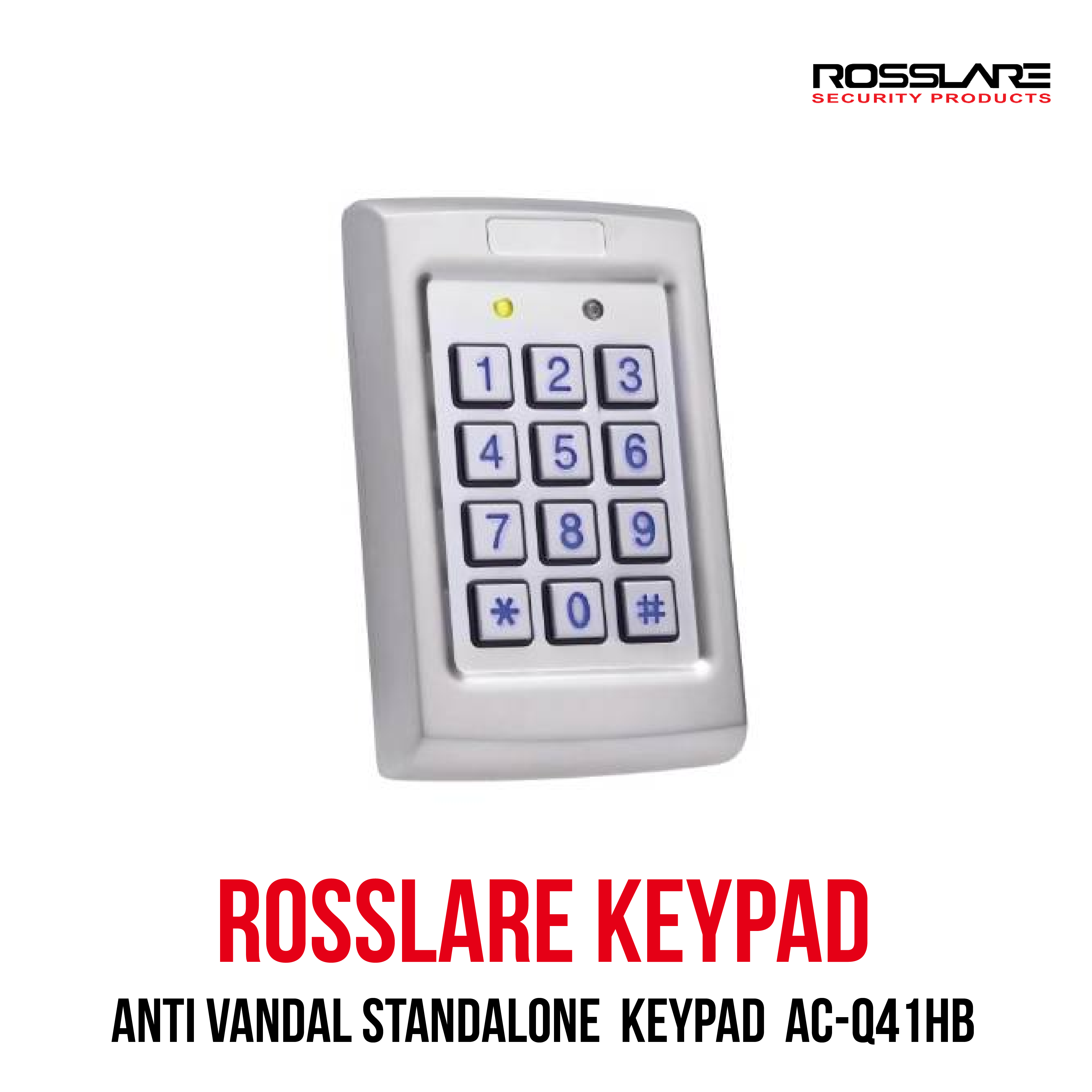

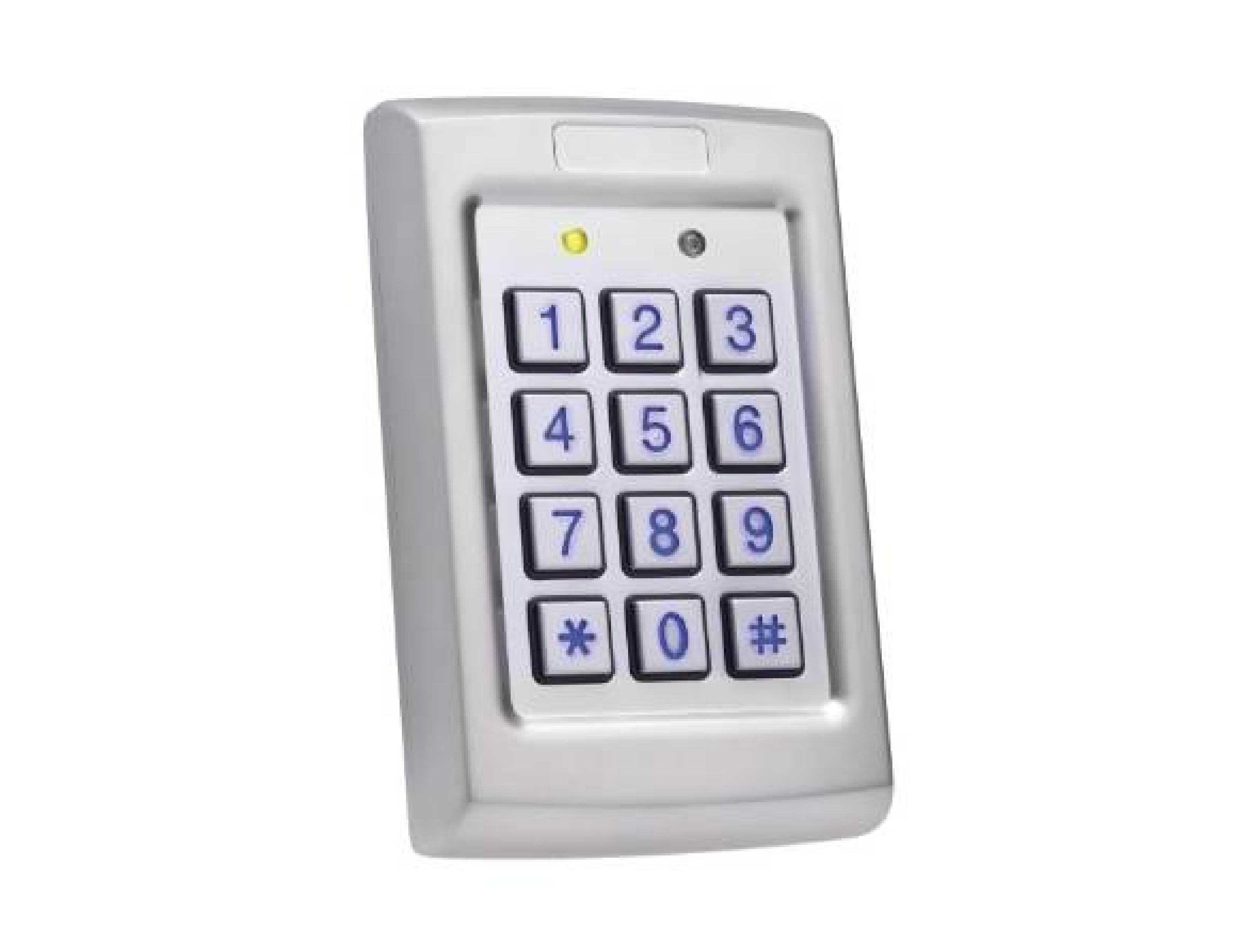

Rosslare Anti Vandal Standalone Metal Keypad Controller, AC-Q41HB

This advanced anti-vandal 500-user standalone controller features shiny blue illuminated metal keys for PIN code user credentials. AC-Q41HB has a rugged metal body ideal for installation in high traffic environments. This model comes with removable terminal blocks, allowing quick installation, and utilizes advanced programming options.

The AC-Q41HB anti-vandal controller has a unique combination of large backlit metal keys and built-in heater, offering a higher level of user accessibility in low light and temperatures. AC-Q41HB has an attractive profile, free from sharp edges, ideal for installations where style and functionality are highly important. This feature-rich unit offers all weather operation, with flexible programming capabilities including a unique “code search” for simple user management. Non-volatile memory protects the storage of user database, modes and parameters

Main Features :

• 500 PIN users
• Smooth attractive design, with anti-vandal body
• Highly-visible blue backlit keypad
• 3 operational security levels can be selected with special PIN codes
• Supports up to 8-digit PIN codes, with timed wrong code lockout after several wrong attempts
• 2 tri-colored LEDs and integral sounder for programming and operational indications
• Removable terminal blocks for unit wiring

Professional Grade Features :

• Optical tamper detection
• Automatic internal heater prevents key freeze at - 20 ̊C (4 ̊F).
• 10 programmable modes for auxiliary input and output (2 Amp Form C Relay)
• 2 Amp Form C Lock Strike Relay, for fail-safe and fail-secure, with input for REX
• Supports: Door Ajar, Forced, Shunt, Monitor, and Secure mode
• Door bell key feature operation (from '*' key), with Rosslare's BL-D40 accessory
• Wide range of low voltage AC/DC power input

Package includes:

• X1 Rosslare Q41HB Keypad
